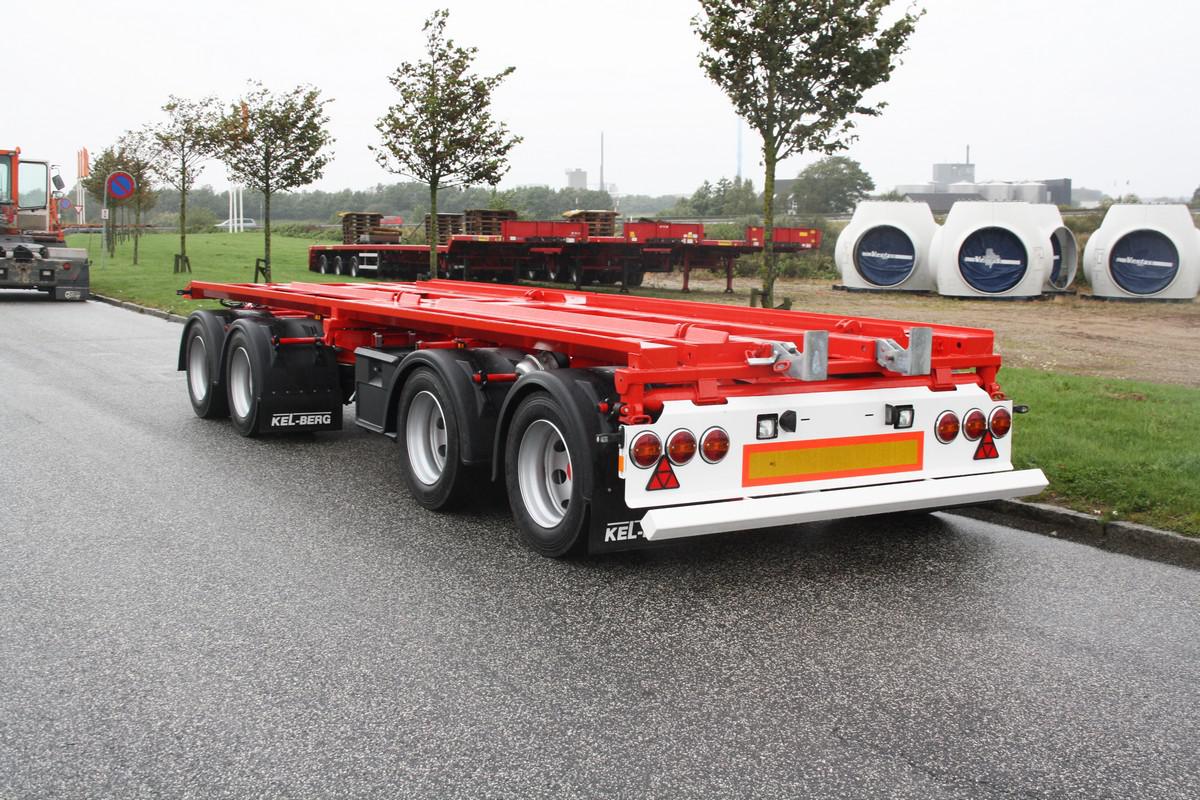

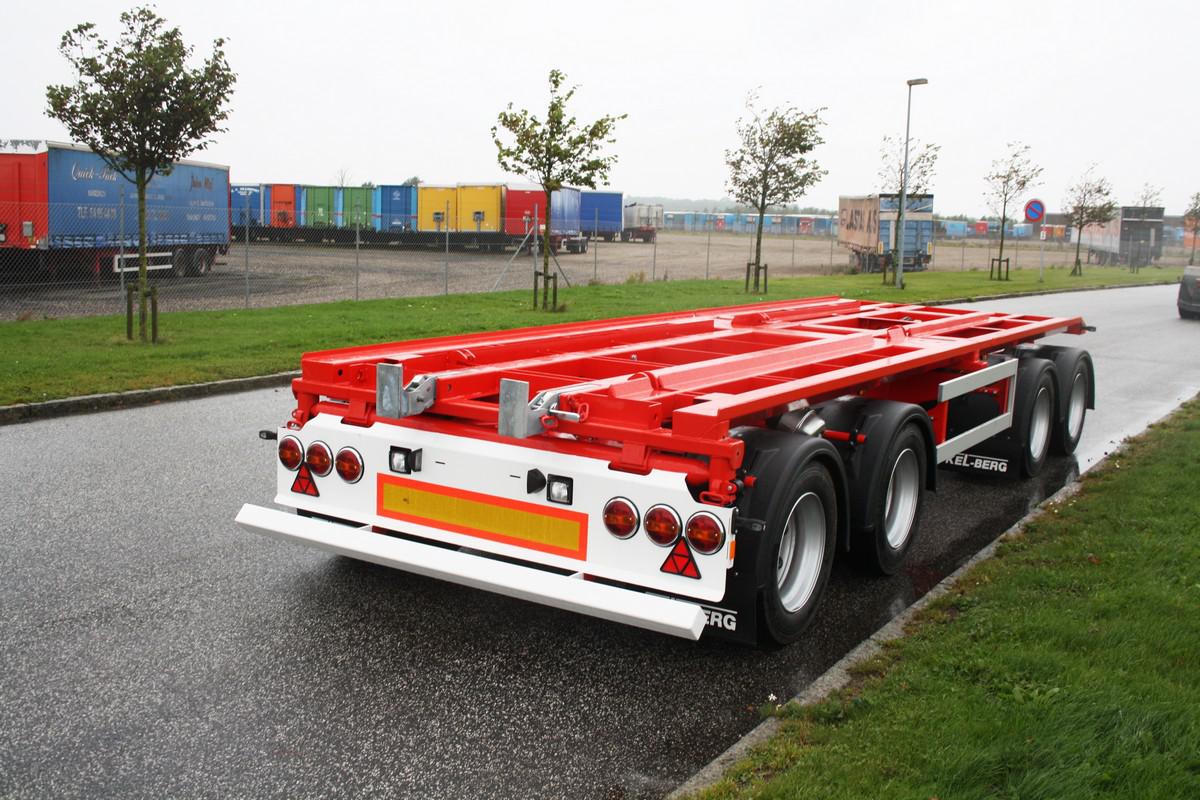

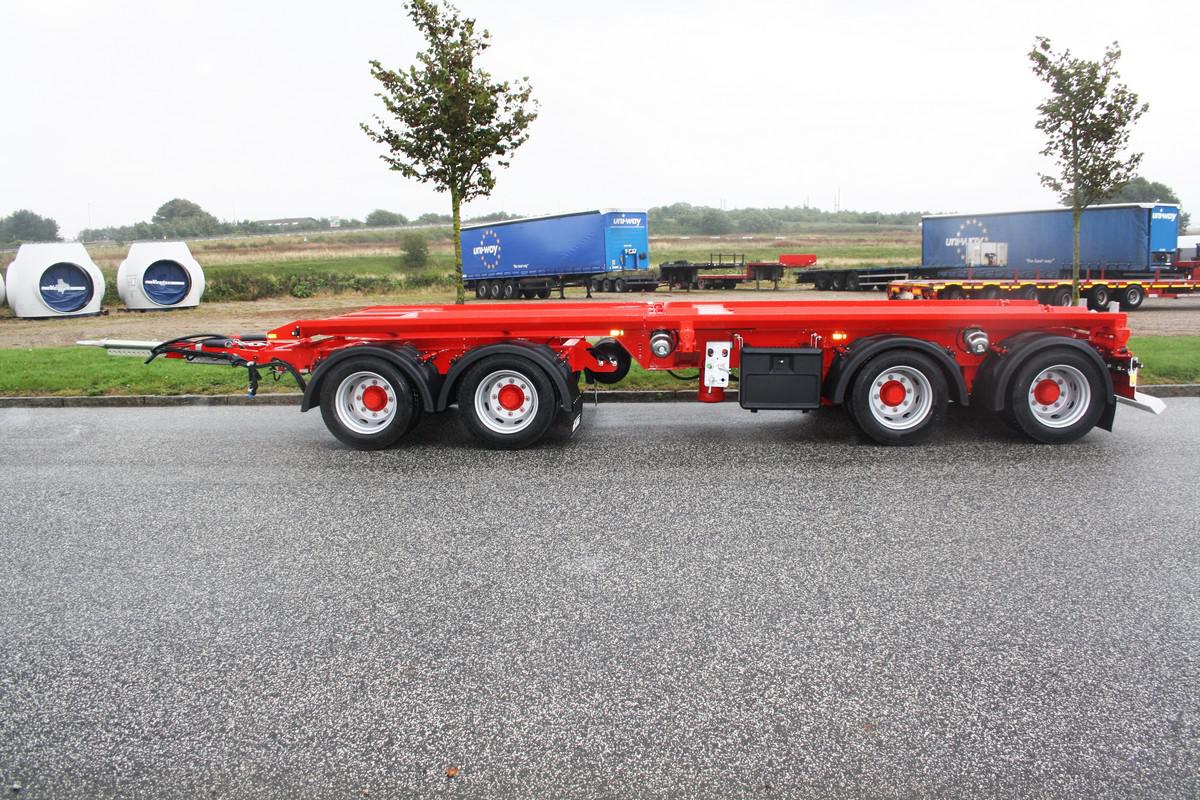

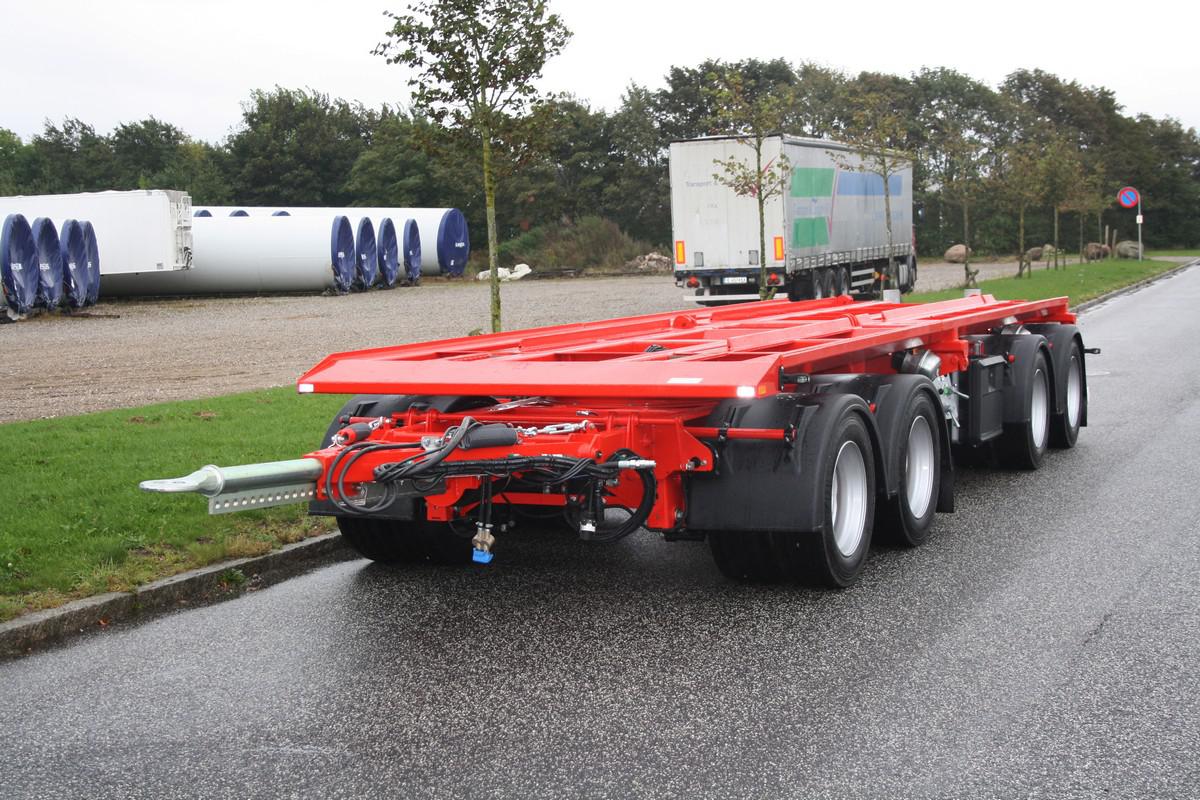

T440K KEL-BERG 4 AXLE TRANSFER TRAILER 1 WAY TIP

DIMENSIONS & WEIGHT

The hook-lift has a coupling height of 800 mm and a permitted total vehicle weight of 32,000 kg.

CHASSIS

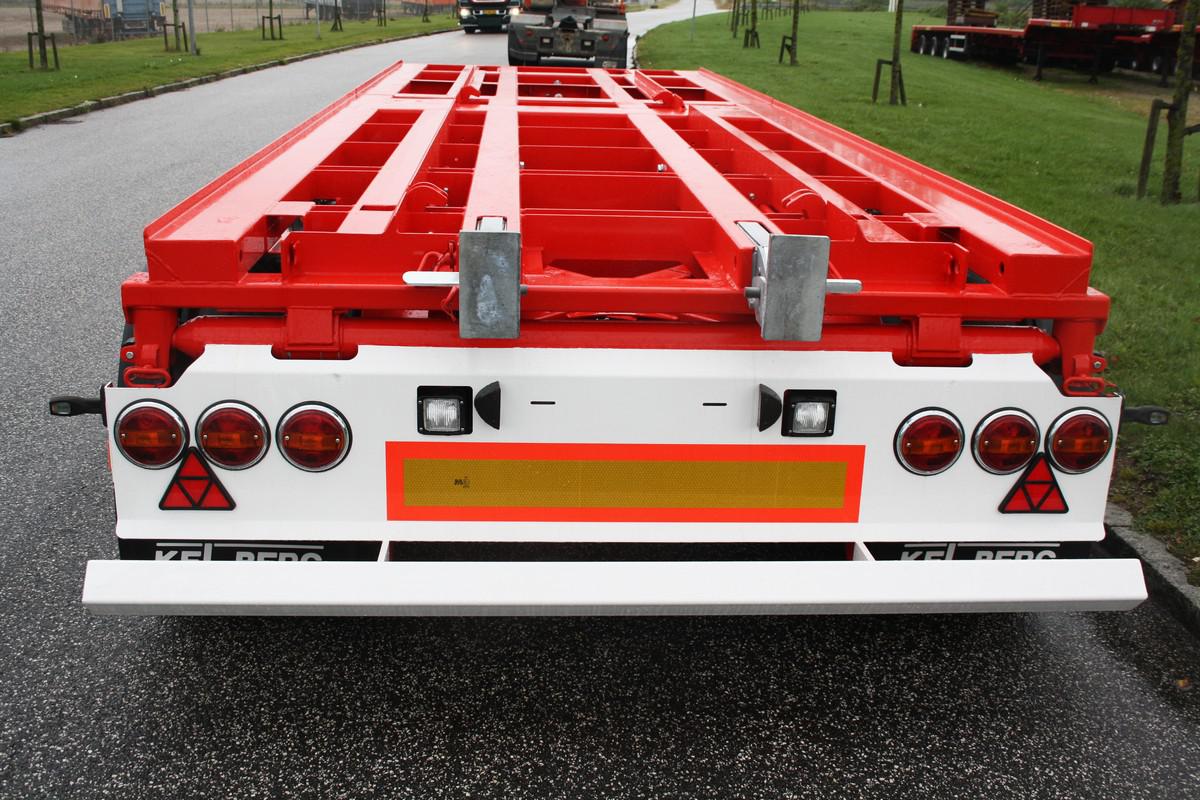

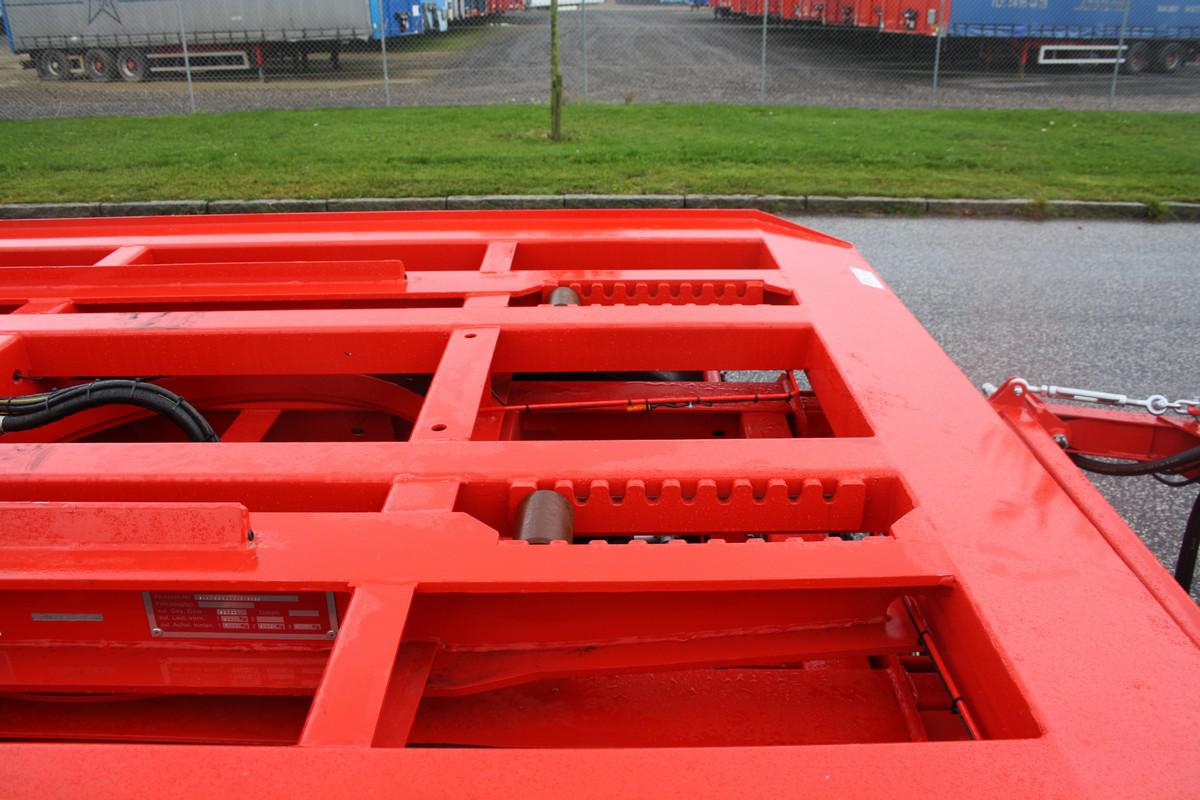

The long side rails are welded to I-sections/box sections in fine-grained 690 steel with heavy reinforcement, and the hook-lift is designed for containers with inner and outer rolls of 160 mm and 220 mm. The hook-lift is equipped with EU-approved underrun protection.

BRAKES

2-line compressed air system.

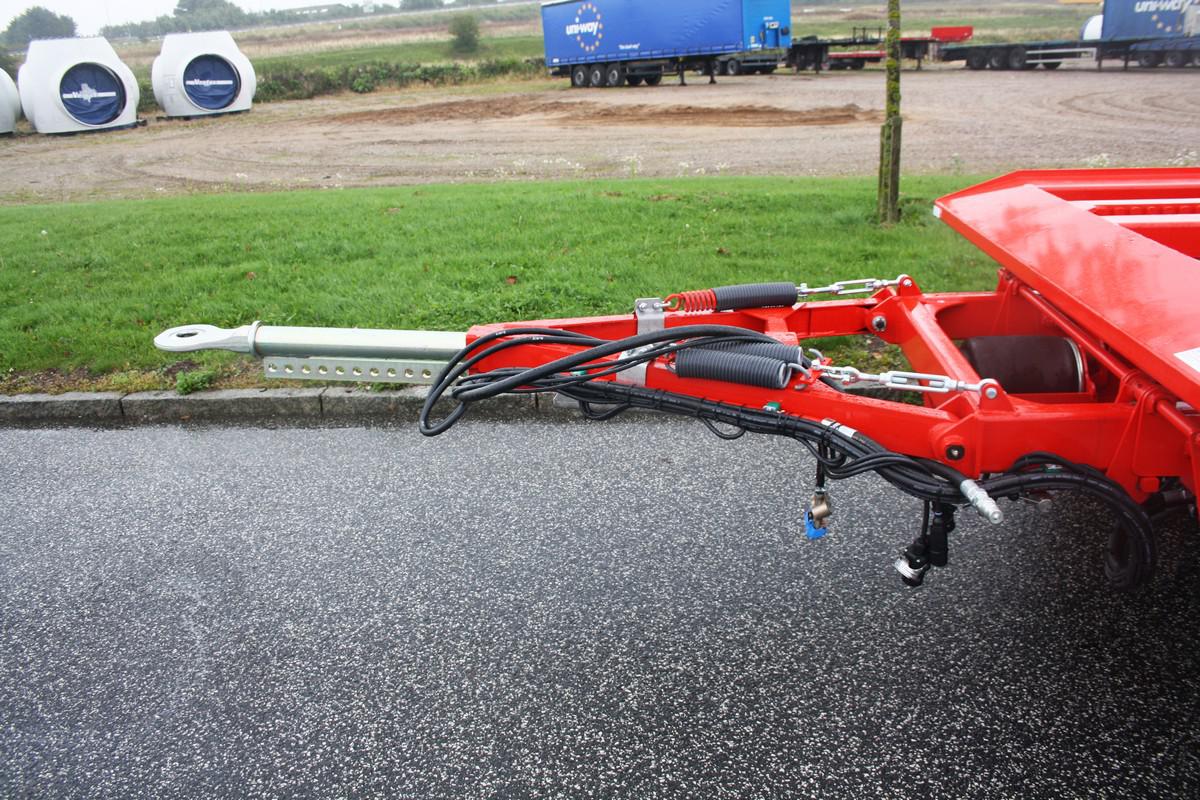

TRACTION TRIANGLE & BALL VALVE

Controlled by a pneumatic and foldable traction triangle with manual locking/ball valve mounted on the left side.

PAINTING

All components are steel blasted and primed with anti-corrosion primer.

EXTRA EQUIPMENT

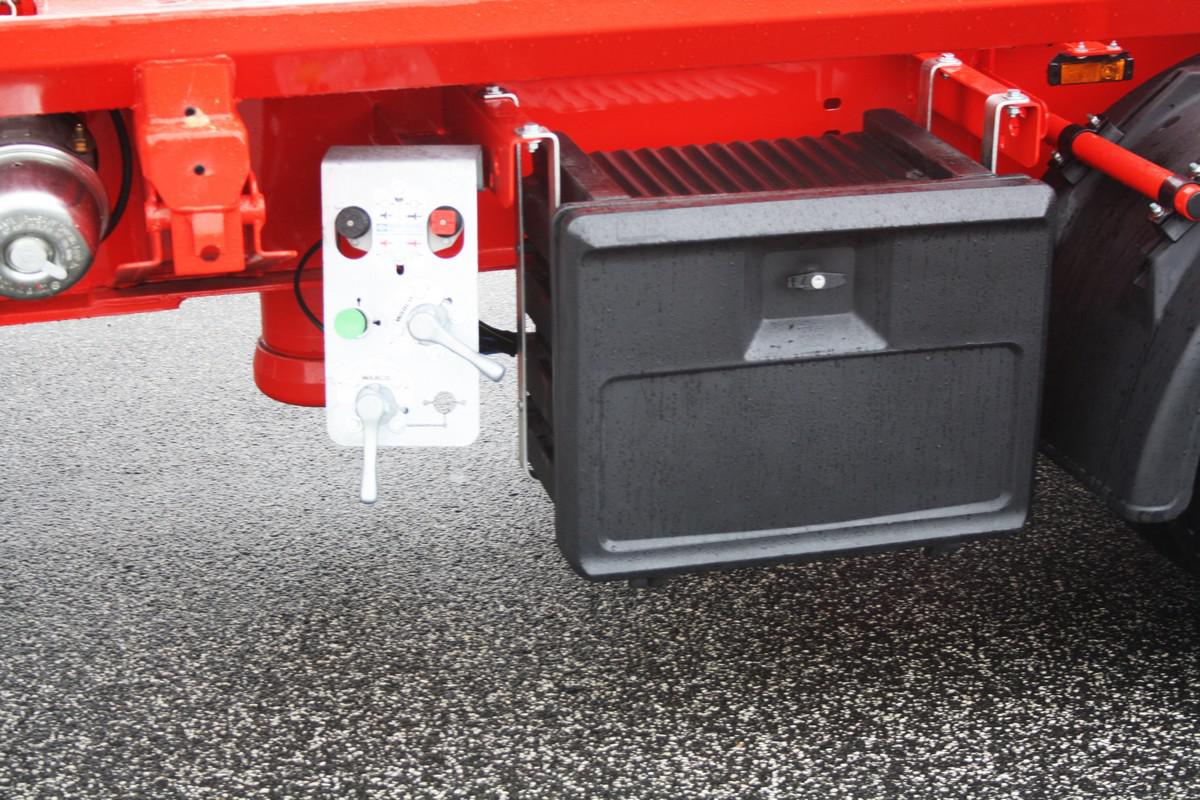

1 plastic toolbox on the left side and a lifting axle.
