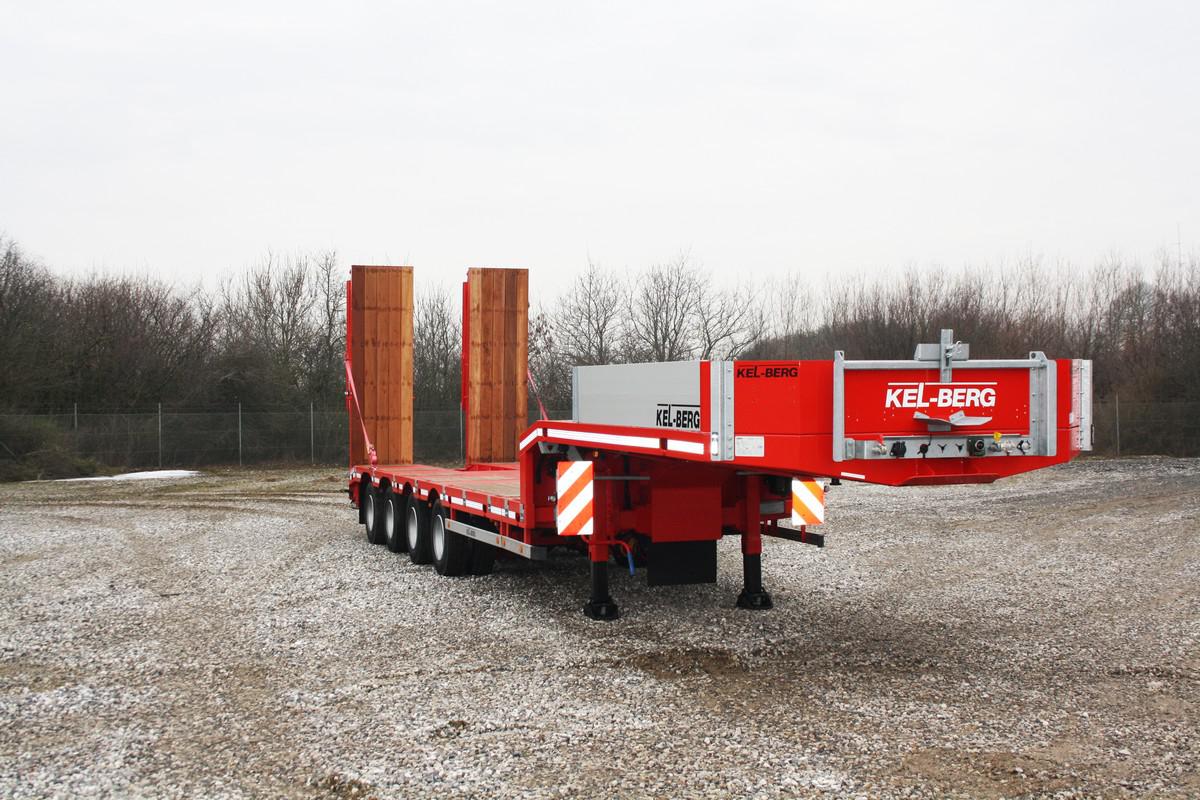

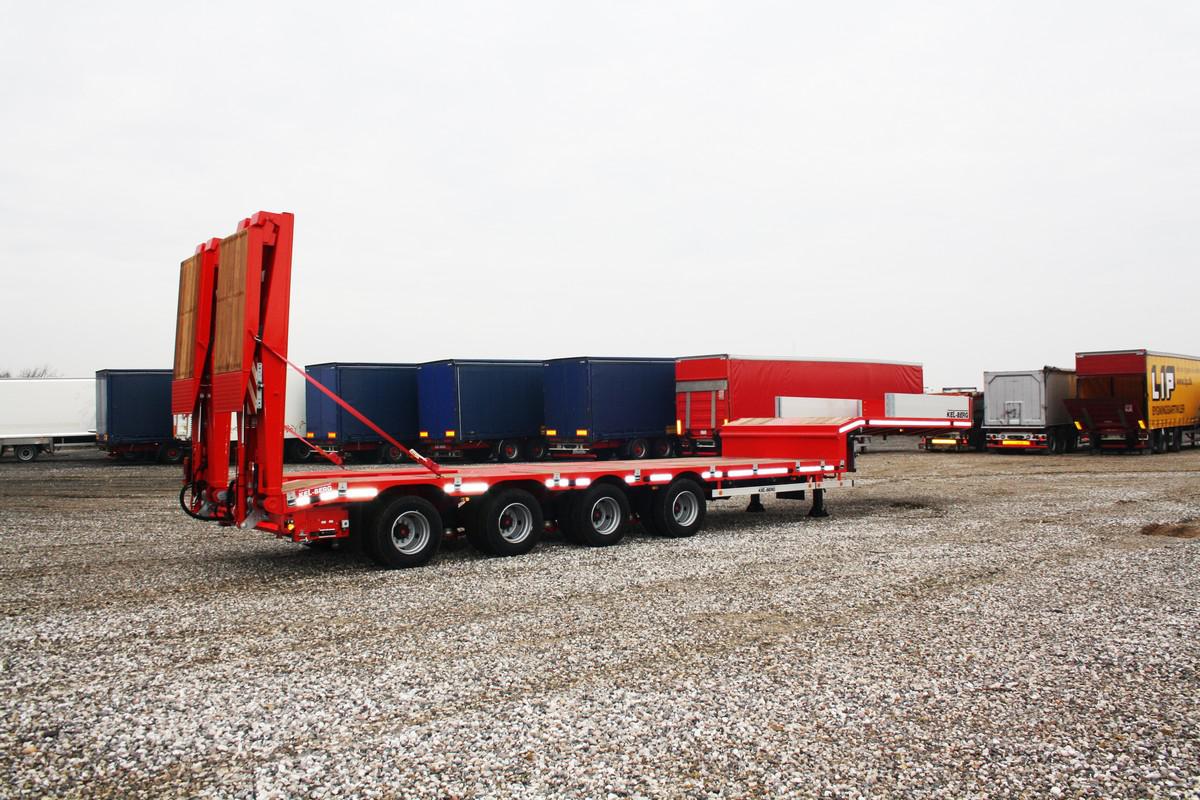

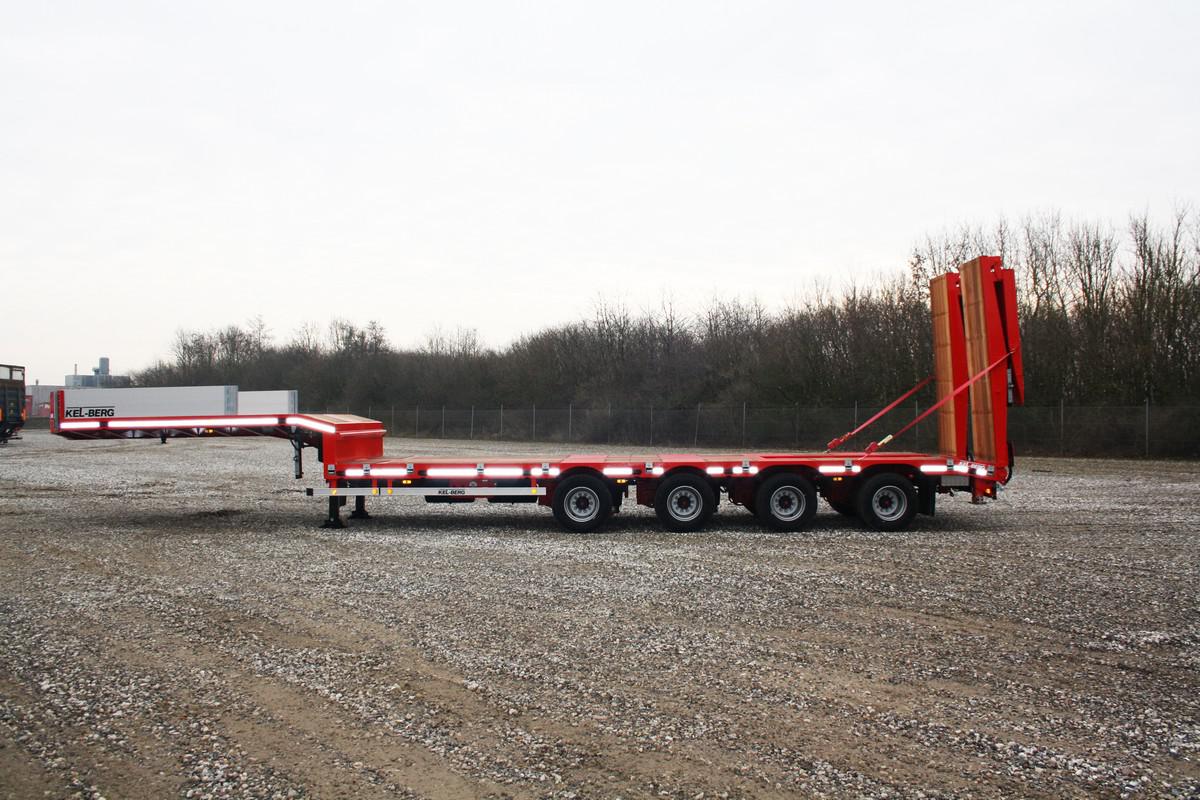

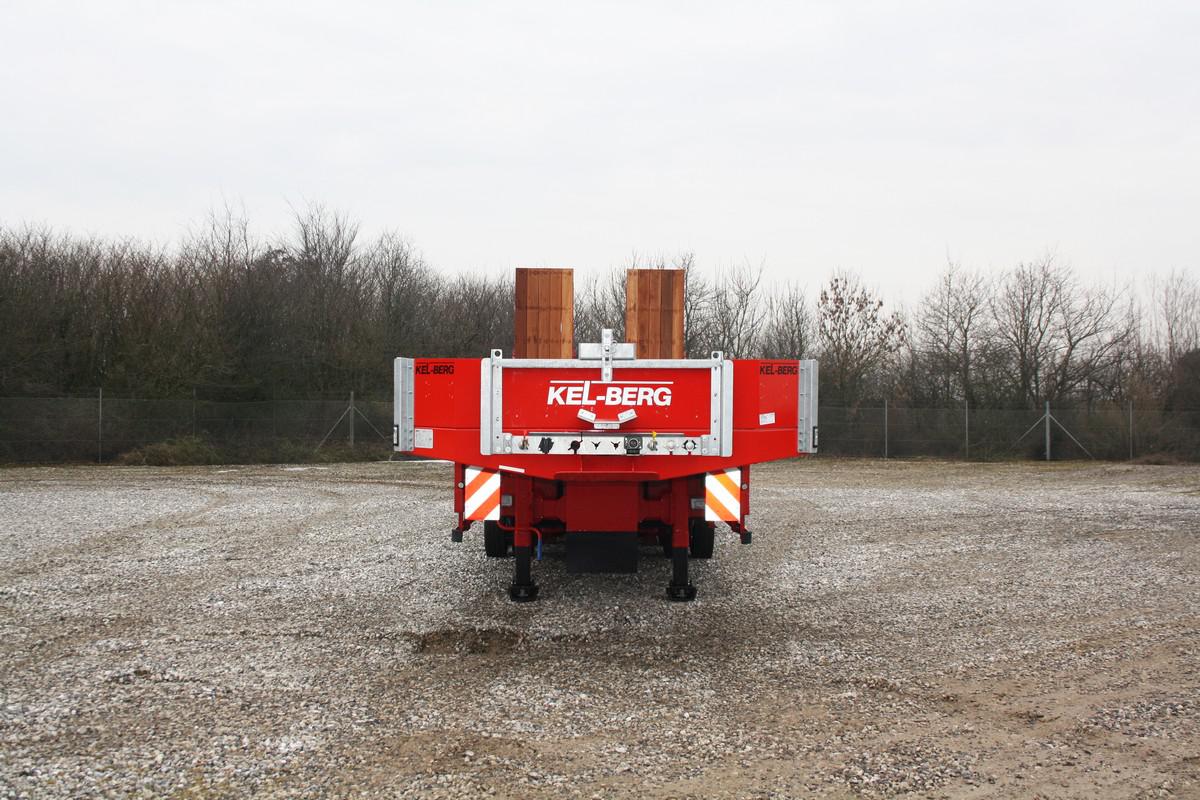

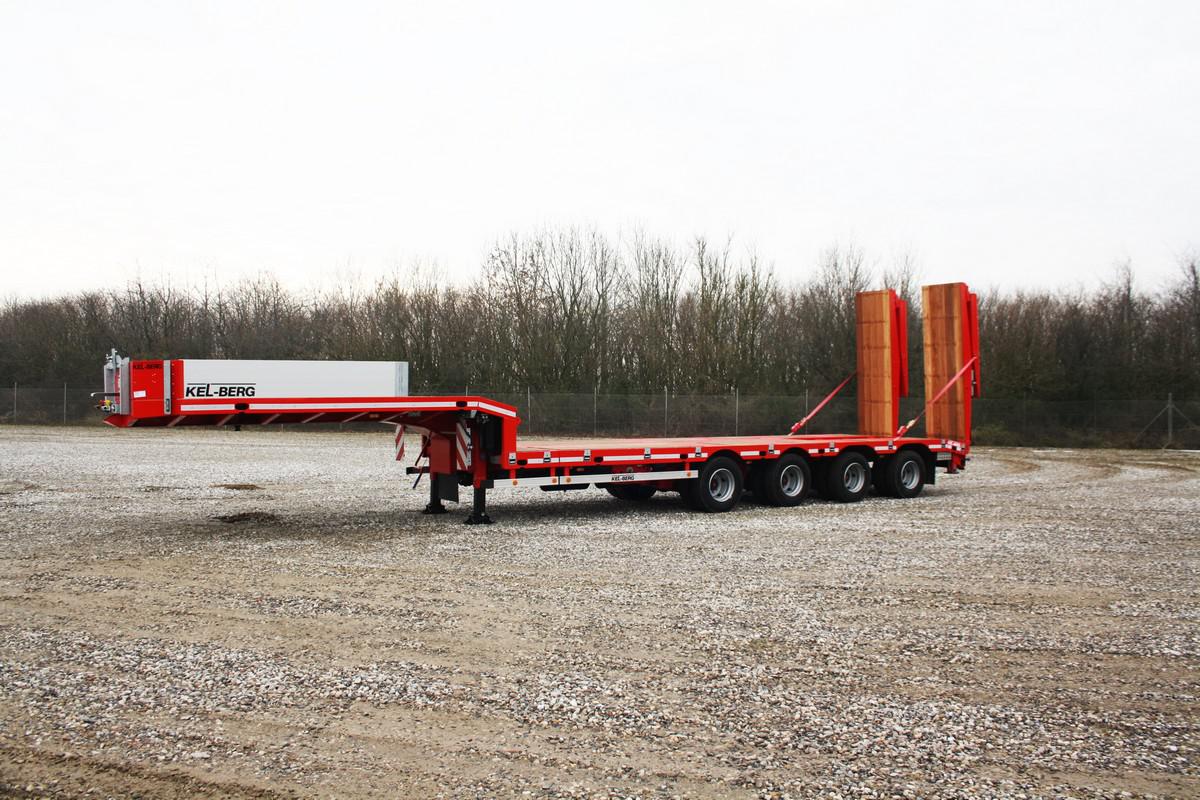

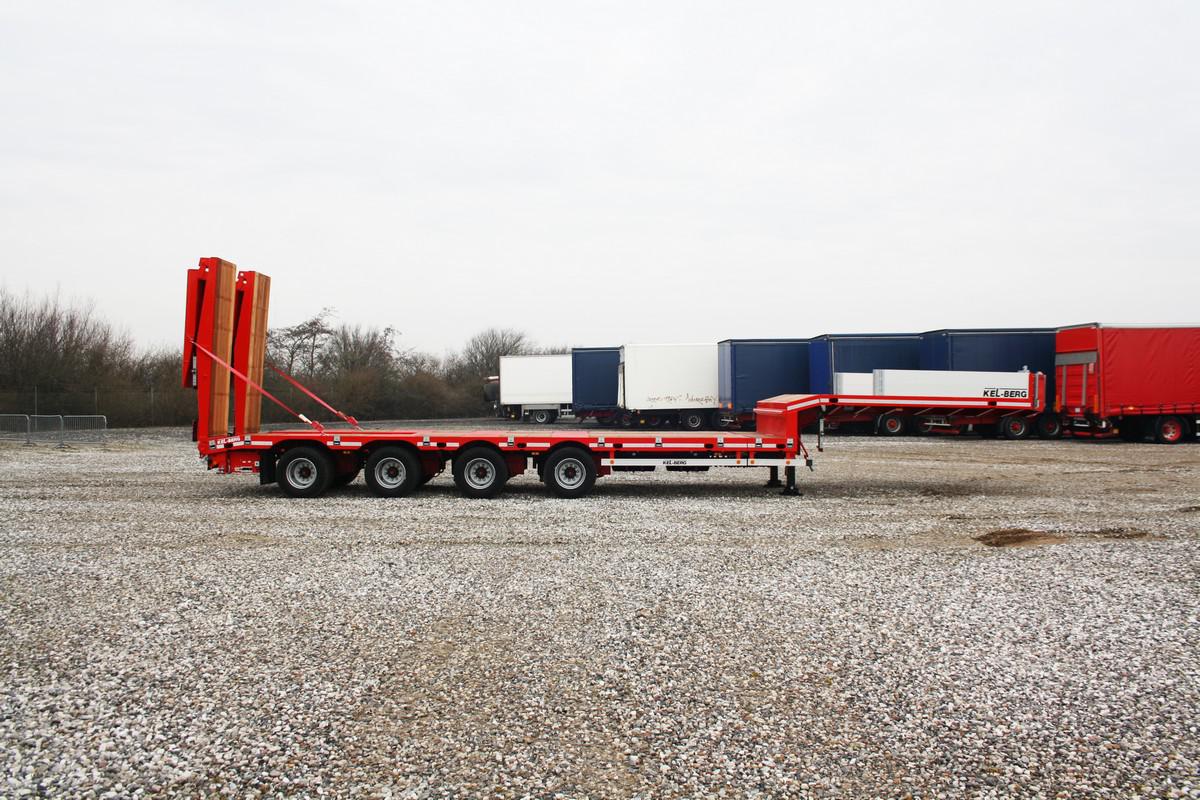

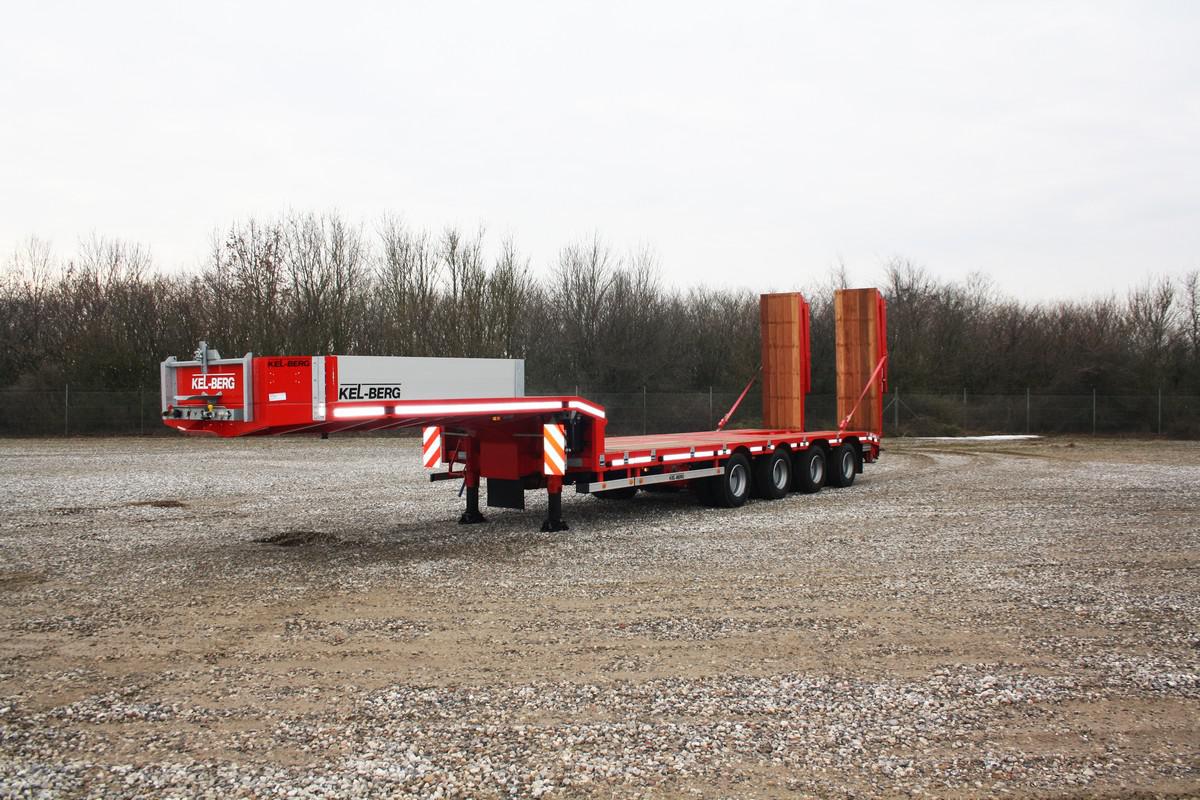

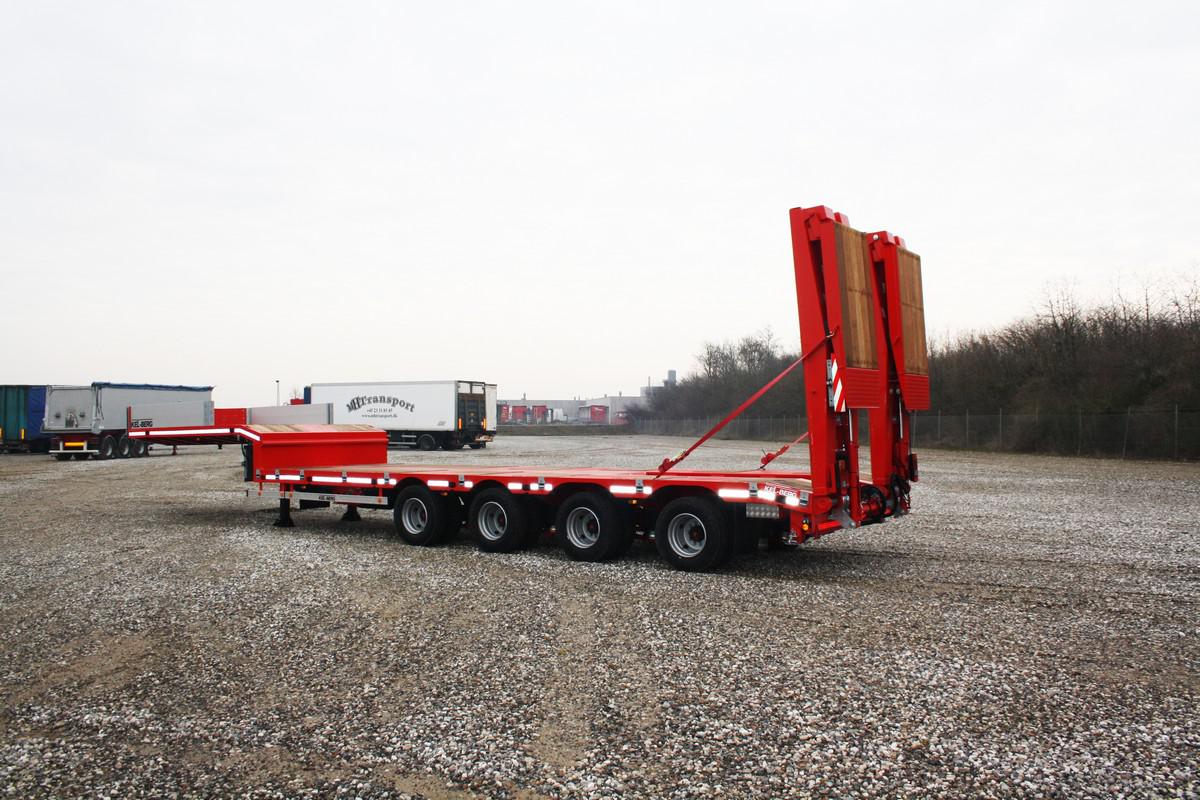

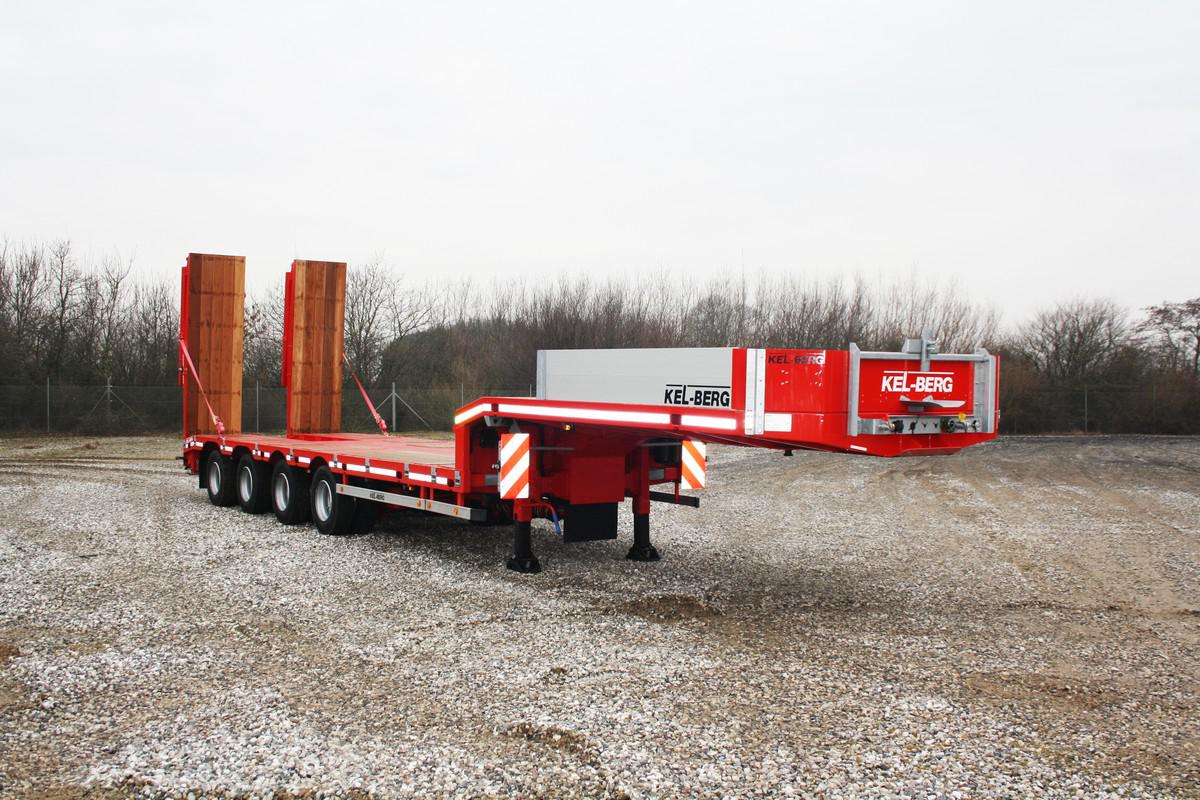

S600FA KEL-BERG 4-AXLE LOW LOADER WITH RAMPS & TROUGH

DIMENSIONS & WEIGHT

The machine pull-out trailer has a heavy-duty permit and has a total weight of 58,000 kg. The trailer has a distance from the king pin to the 2nd axle (bogie) of 2 x 1,360 mm.

CHASSIS

Retractable side walls are mounted on the lower deck.

STEERING AXLES

This machine pull-out trailer has steerable and swivelling 3rd and 4th axles that can be locked over the rear light or with a switch mounted on the side of the trailer.

ELECTRICAL SYSTEM

Legally required marker lights and reflectors.

SUPPORT LEGS

2 pcs. support legs of recognised brand.

KINGPIN

2" SAE Kingpin.

SIDES

Removable 400 mm steel front and removable 400 mm aluminium sides on the bed.

RAMPS

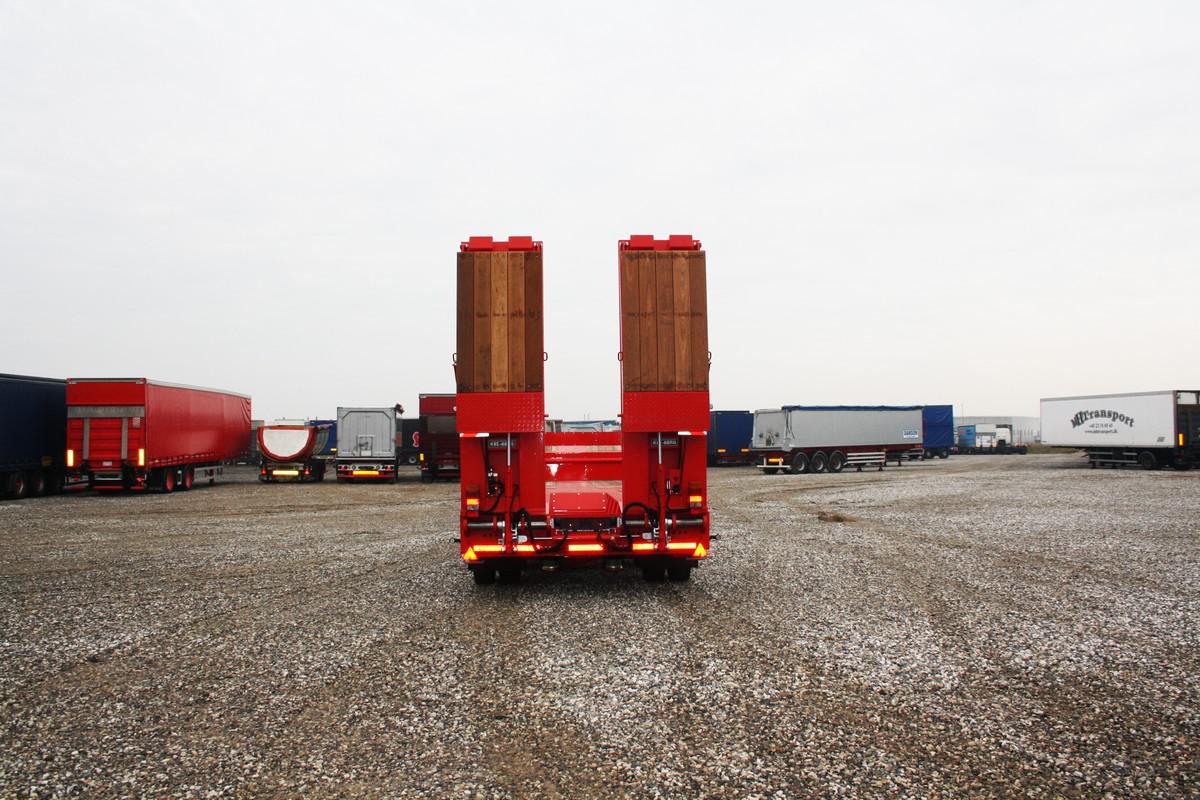

Hydraulic ramps are clad with 40 mm wooden planks at the rear.

LOAD SECURITY

The machine extension trailer has, among other things, 7 pairs of heavy-duty tension rods in the edge rail on the lower deck (max. 5,000 kg pull).

PAINTING

Chassis painted in one RAL colour with approved ICI products.
