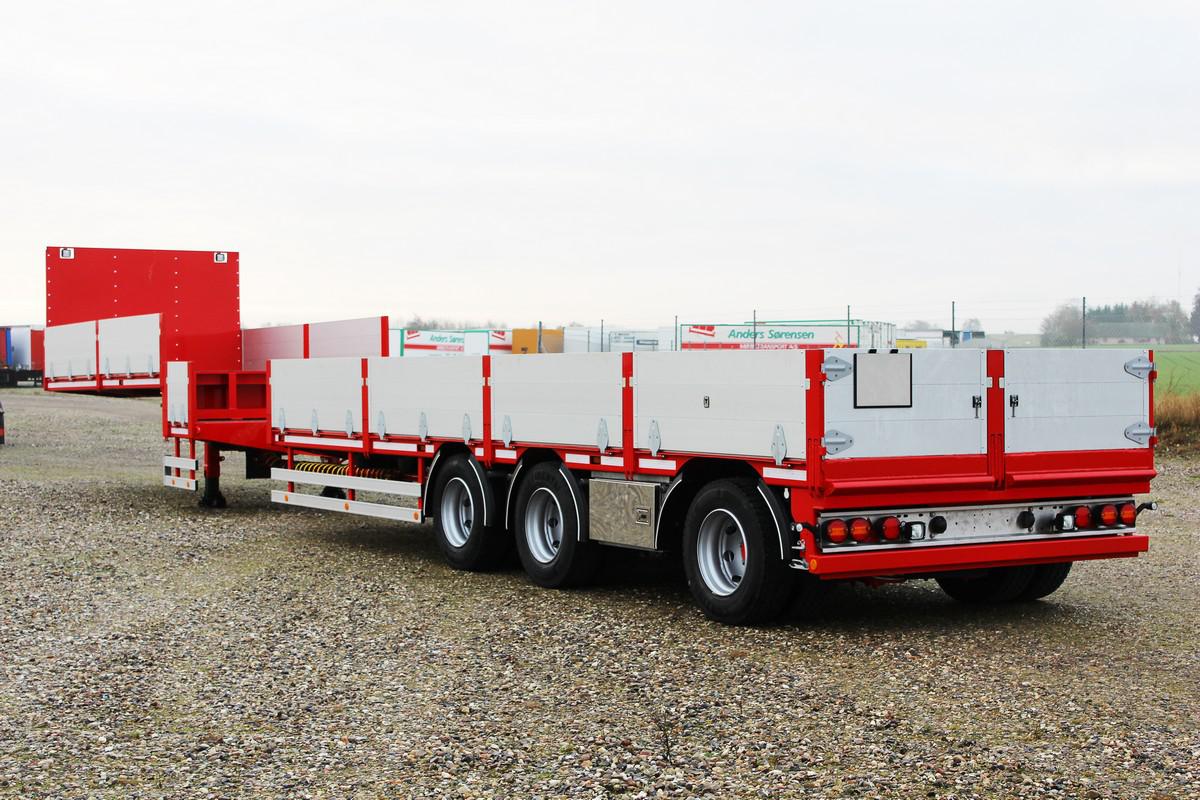

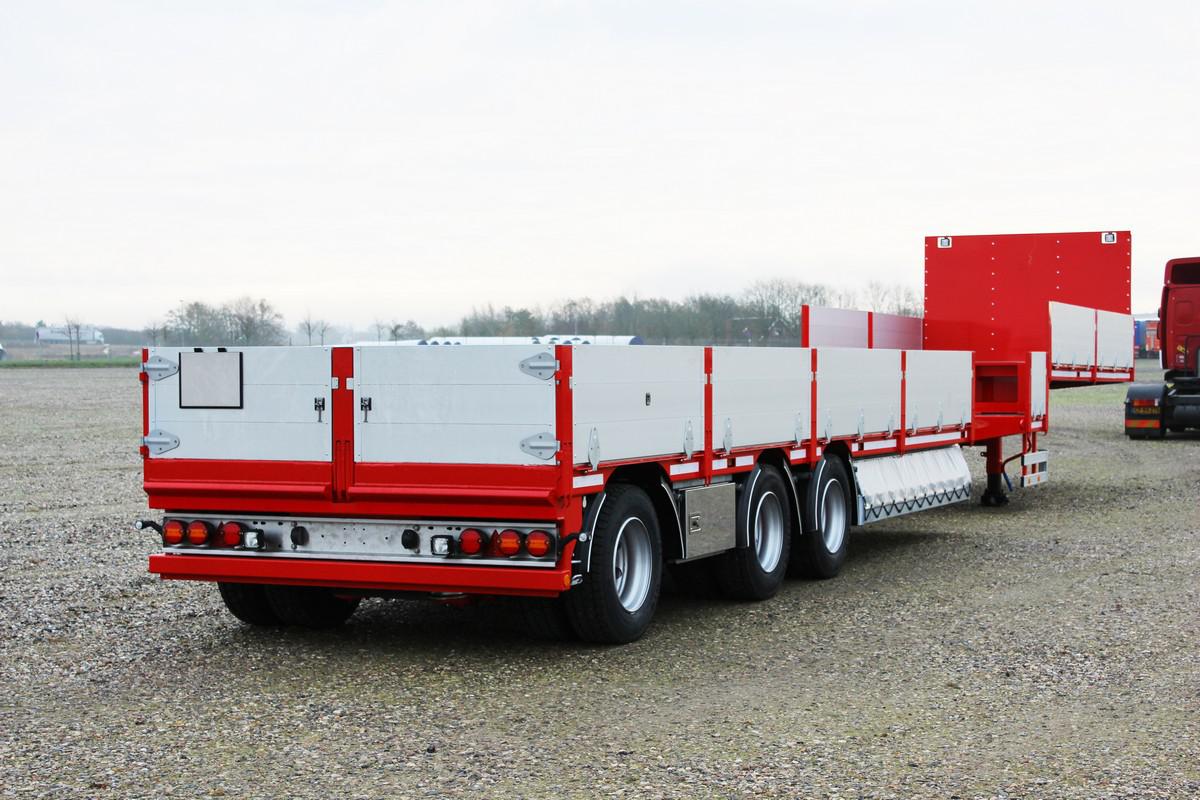

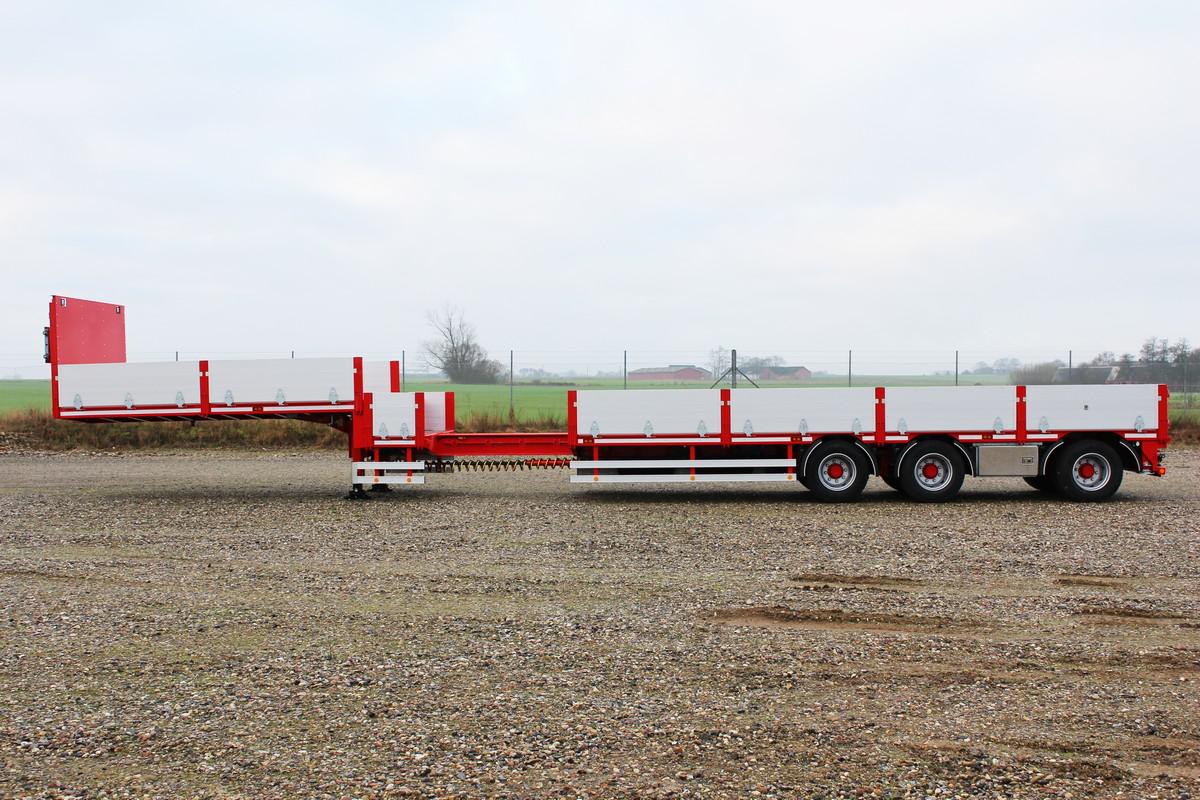

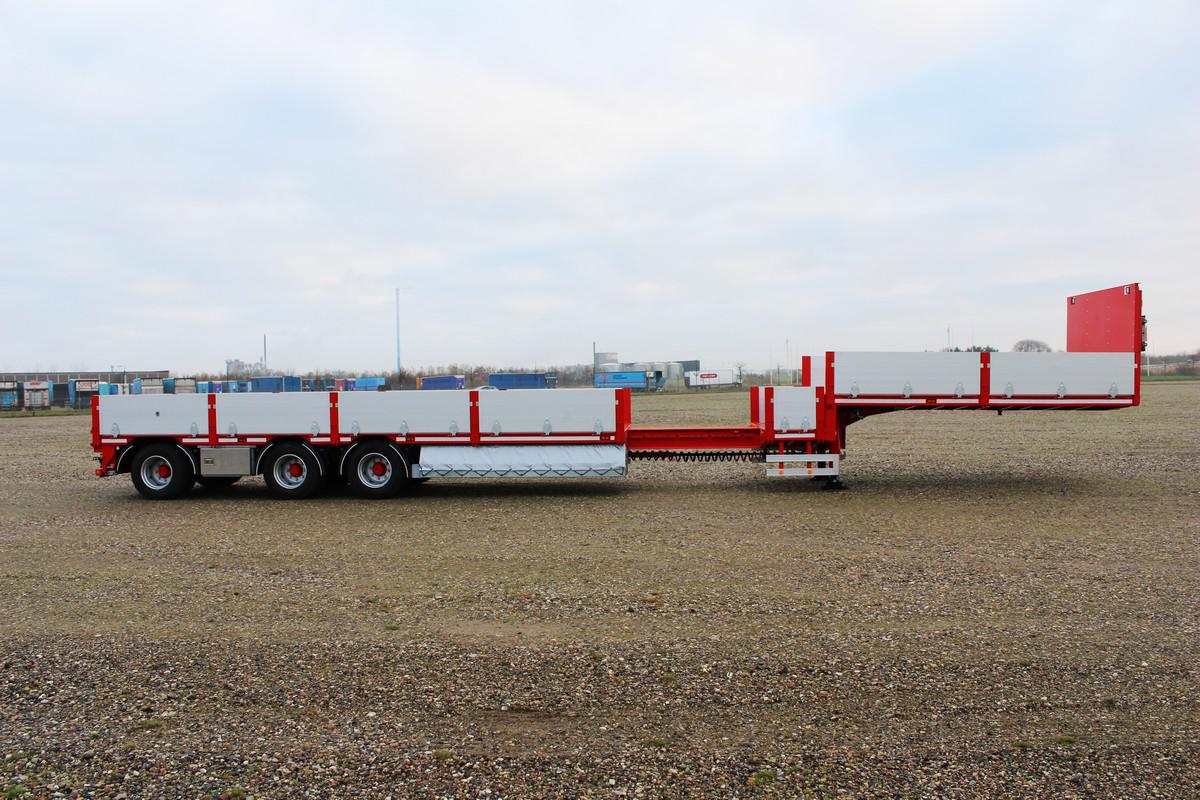

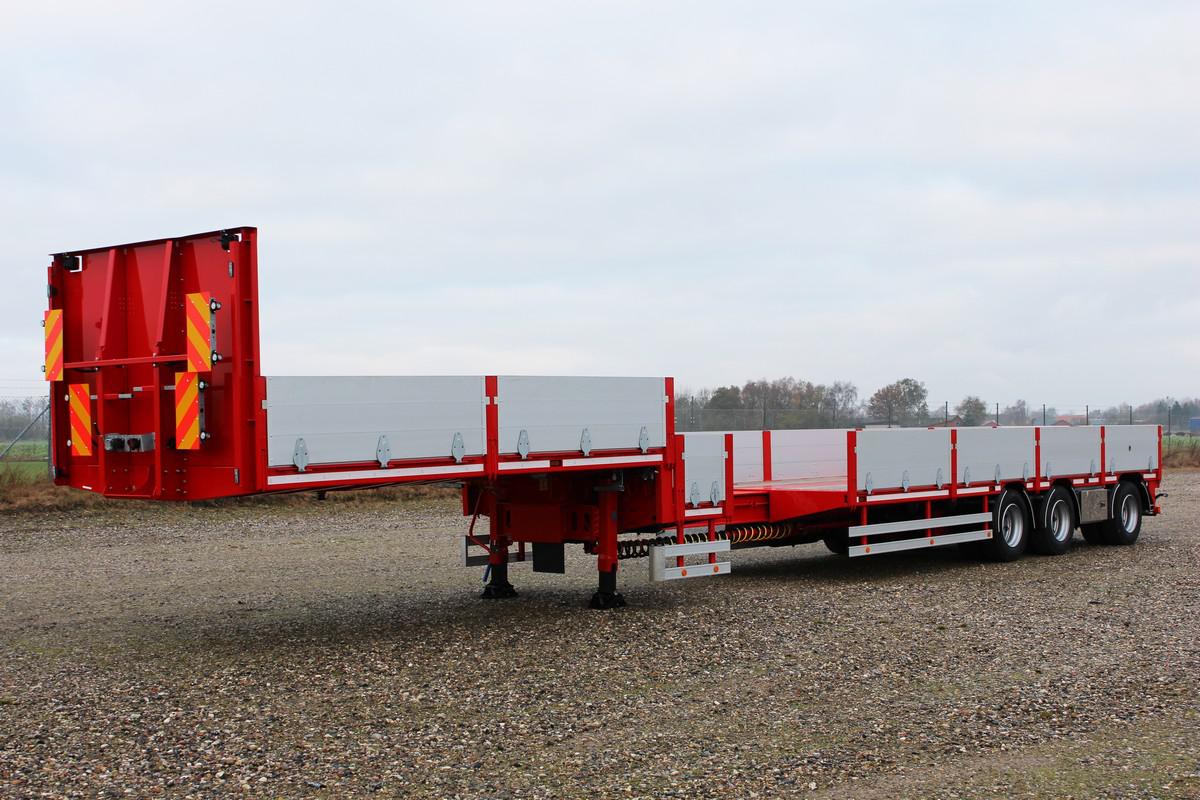

S600H KEL-BERG 3-AXLE PULL OUT TRAILER - OILTRAILER

SPEC SHEET (PDF) GET A QUOTE

DIMENSIONS & WEIGHT

The drawbar trailer has a permissible total weight when it is a block truck of 50,000 kg and a general driving permissible total weight is 42,000 kg.

CHASSIS

Welded centre beam in high-strength steel where the sections slide into each other. The drawbar trailer has the electrical system according to ISO 3731. It has 2-line mechanical air brake system.

KINGPIN

2" SAE kingpin.

AXLES

3 x 10 ton SAF axles. 1st axle can be lifted.

ELECTRICAL SYSTEM

The electrical system is manufactured according to ISO 3731.

BRAKES

Knorr/WABCO ABS braking system for 2S/2M.TOOL BOX2 stainless steel tool boxes mounted behind the 2nd axle on the left and right side.
