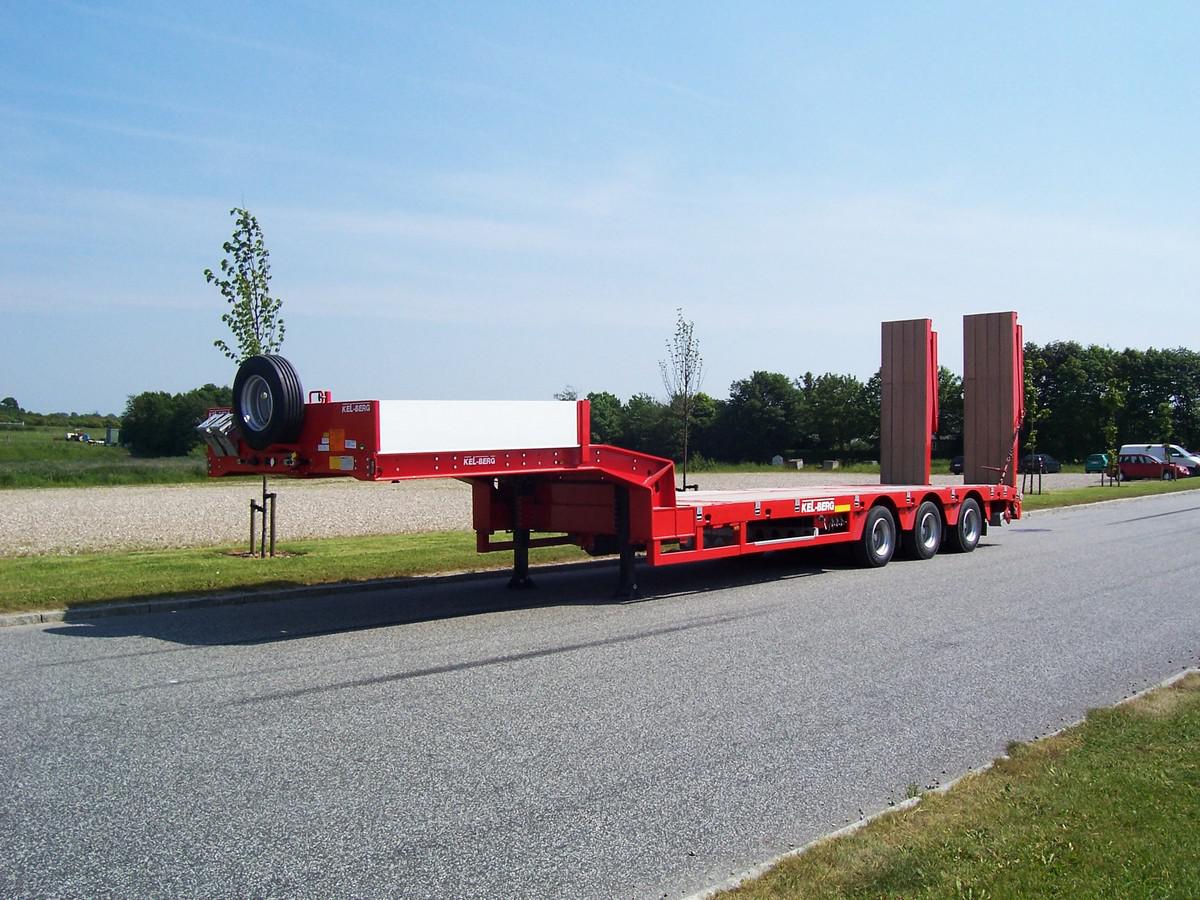

S600FA KEL-BERG 3 AXLE PULL OUT TRAILER WITH DOUBLE RAMPS

DIMENSIONS & WEIGHT

The machine trailer has a permitted total weight of 48,000 kg. The machine trailer has a fifth wheel height of 1280 mm.

CHASSIS

Centre pole in welded high-strength steel, where the sections slide into each other. A heavy-duty chassis suitable for heavy-duty applications.

STEERED 3rd AXLE

A steerable and swivelling 3rd axle that can be locked over the rear light or with a switch on the side of the trailer.

BRAKES

2-line mechanical air brake system with 80 l steel tank in black.

SUPPORT LEGS

2 pcs. support legs of recognised brand.

ELECTRICAL SYSTEM

Legally required marker lights and reflectors.

KINGPING

2" SAE Kingpin.

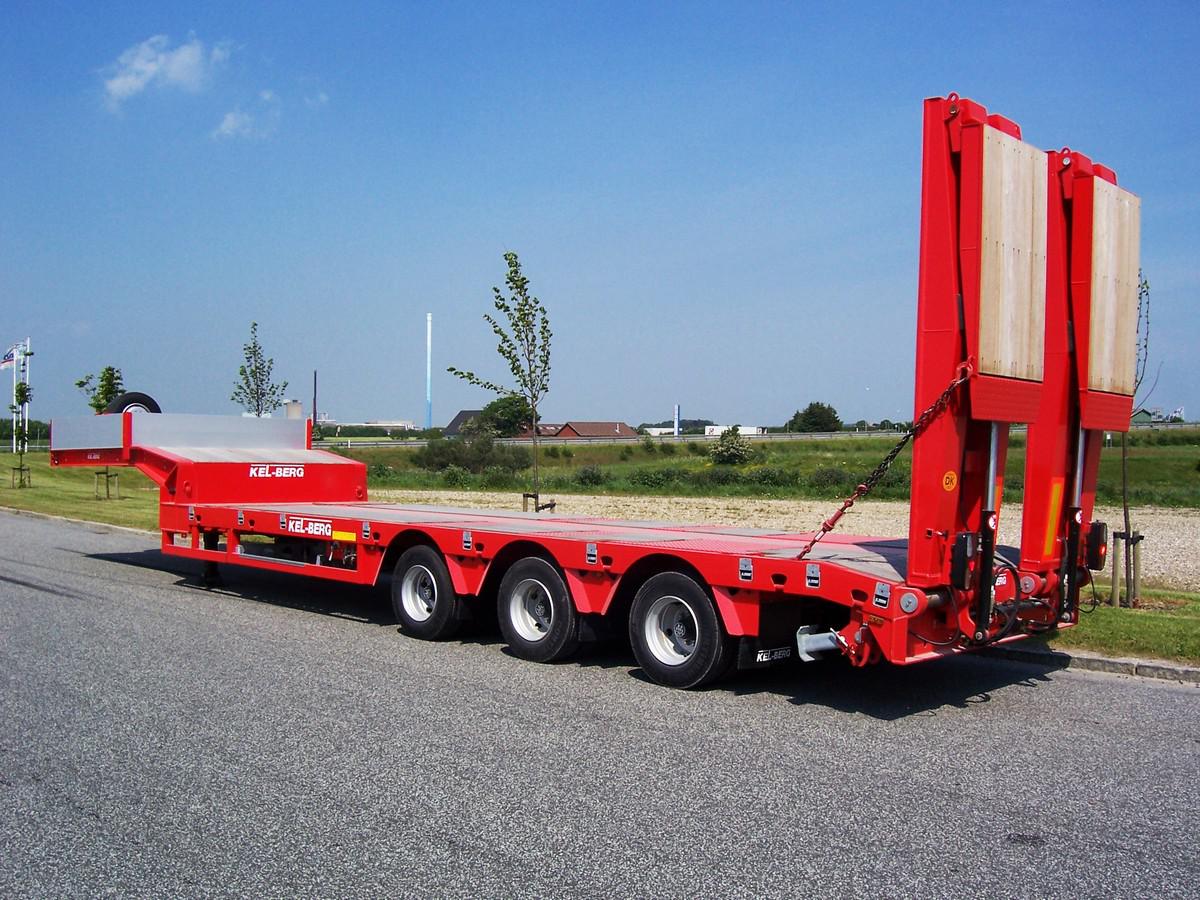

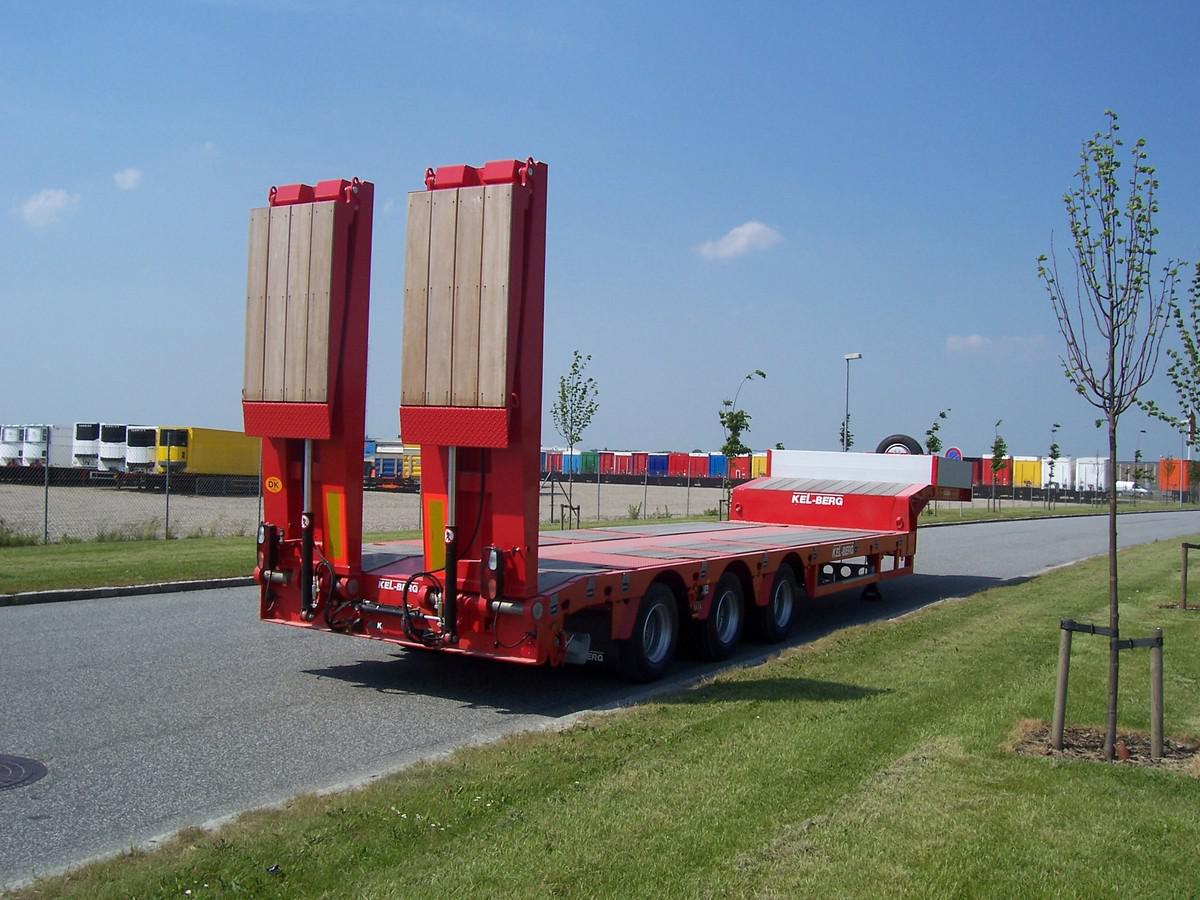

RAMPS

Hydraulic ramps clad with 40 mm wooden planks at the rear.
