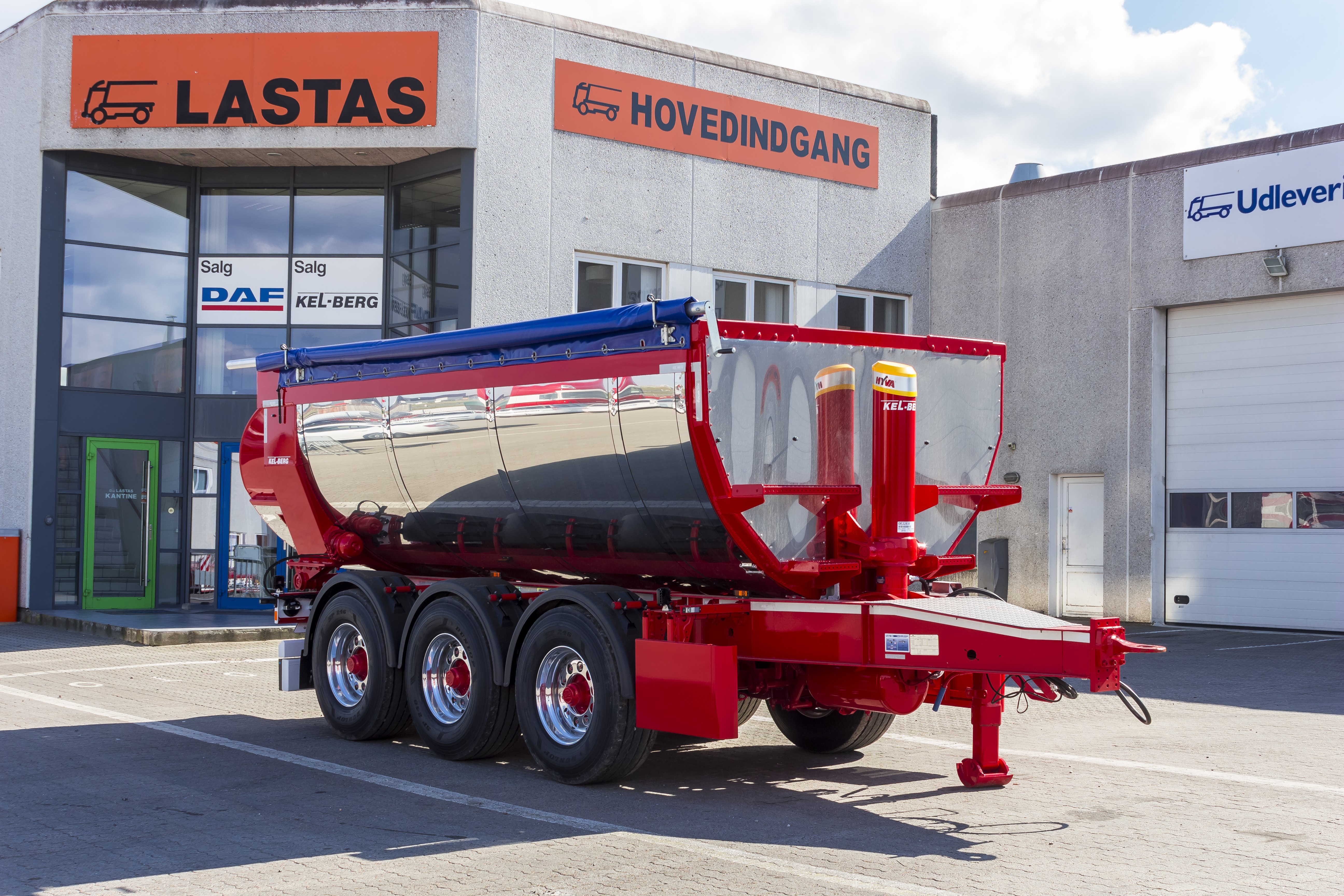

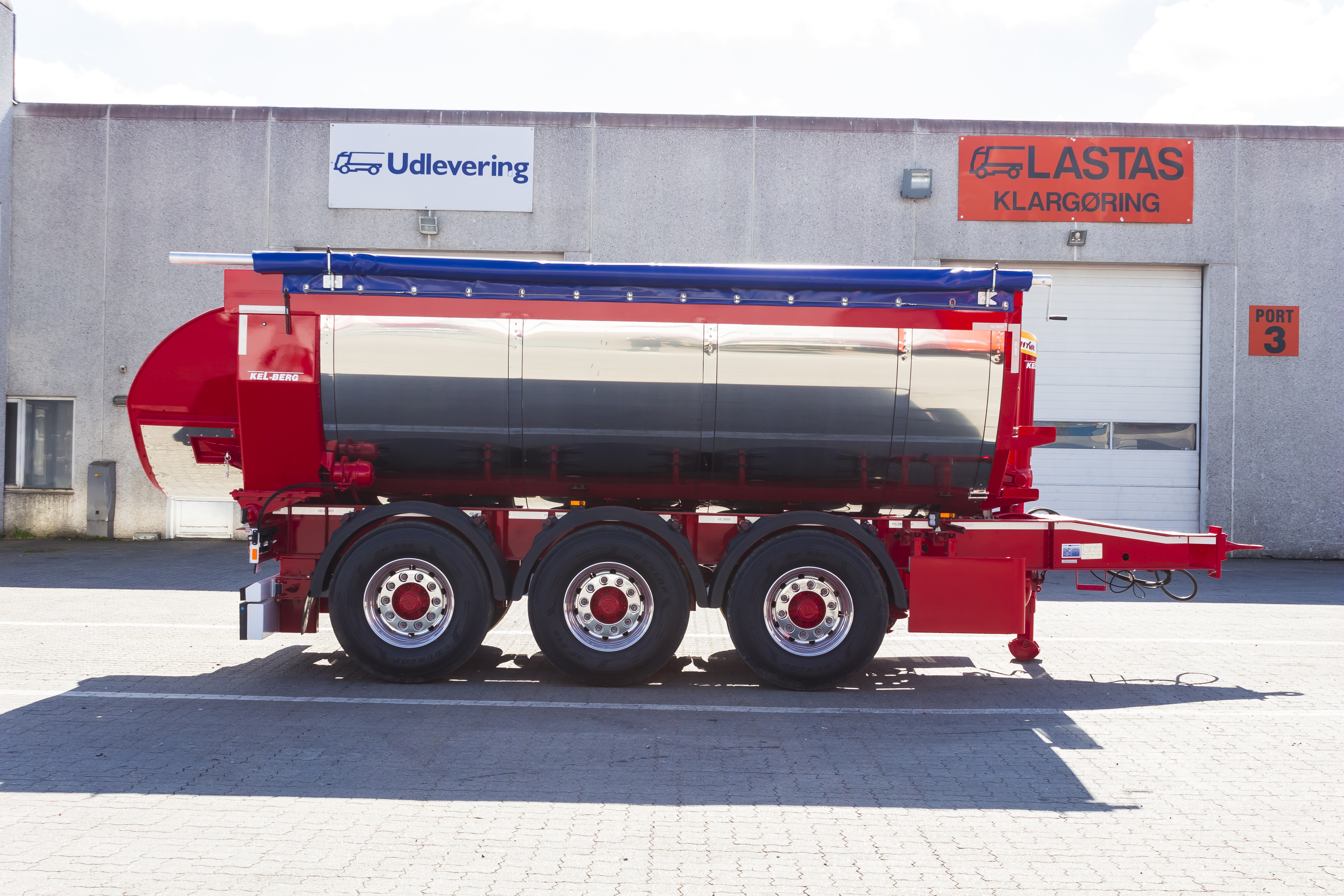

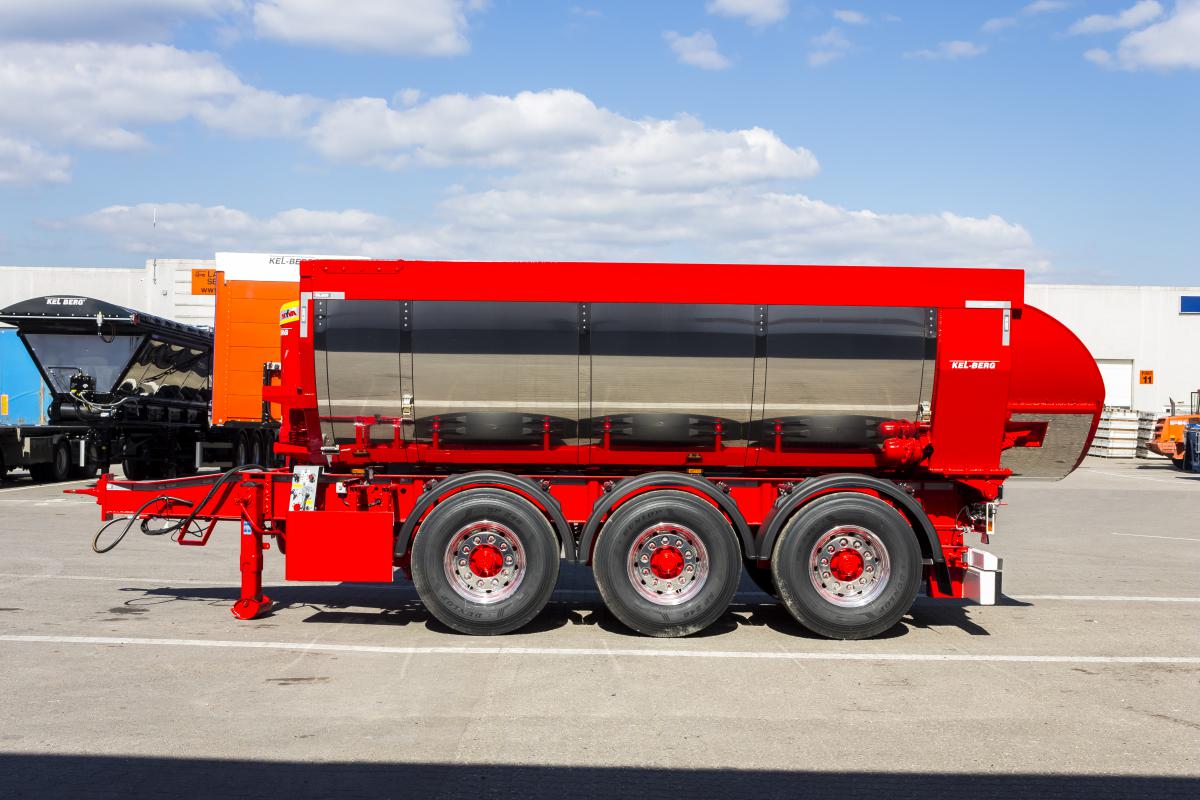

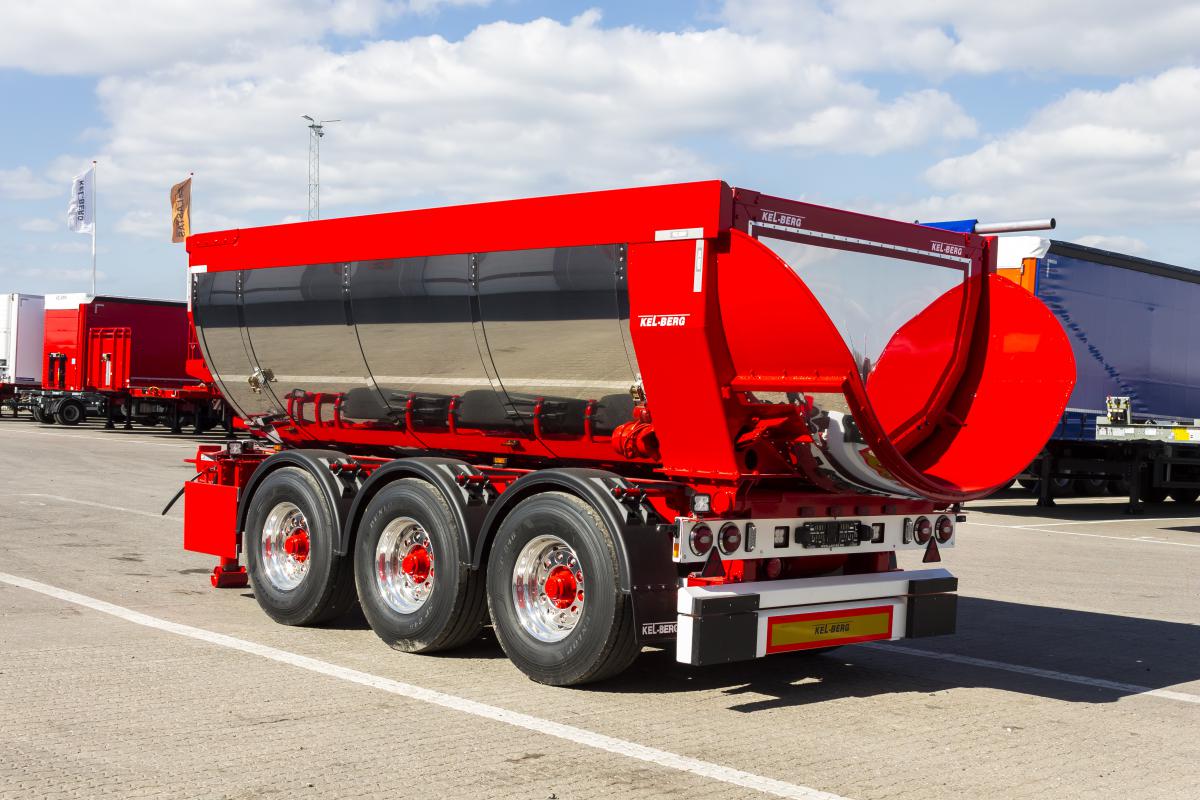

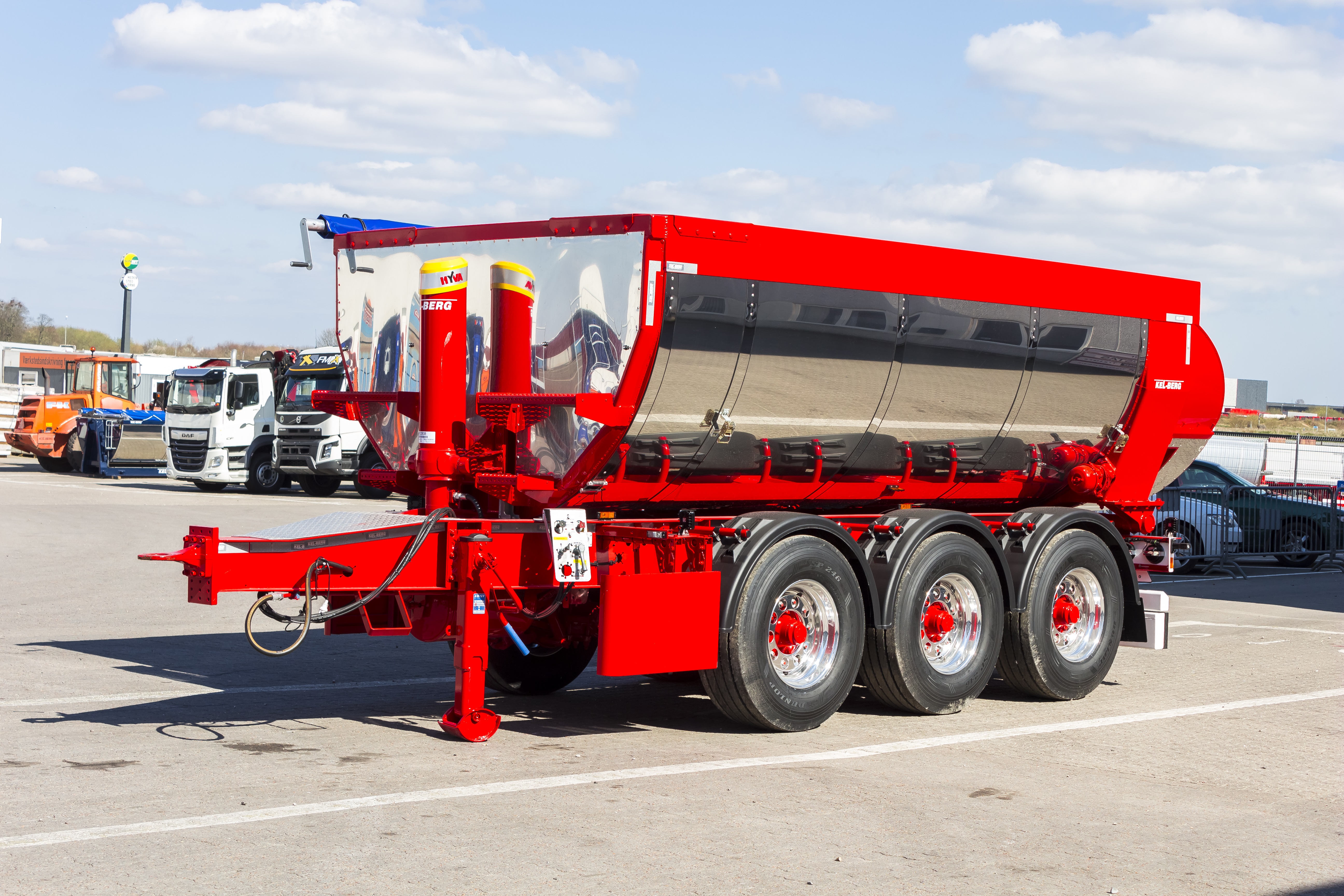

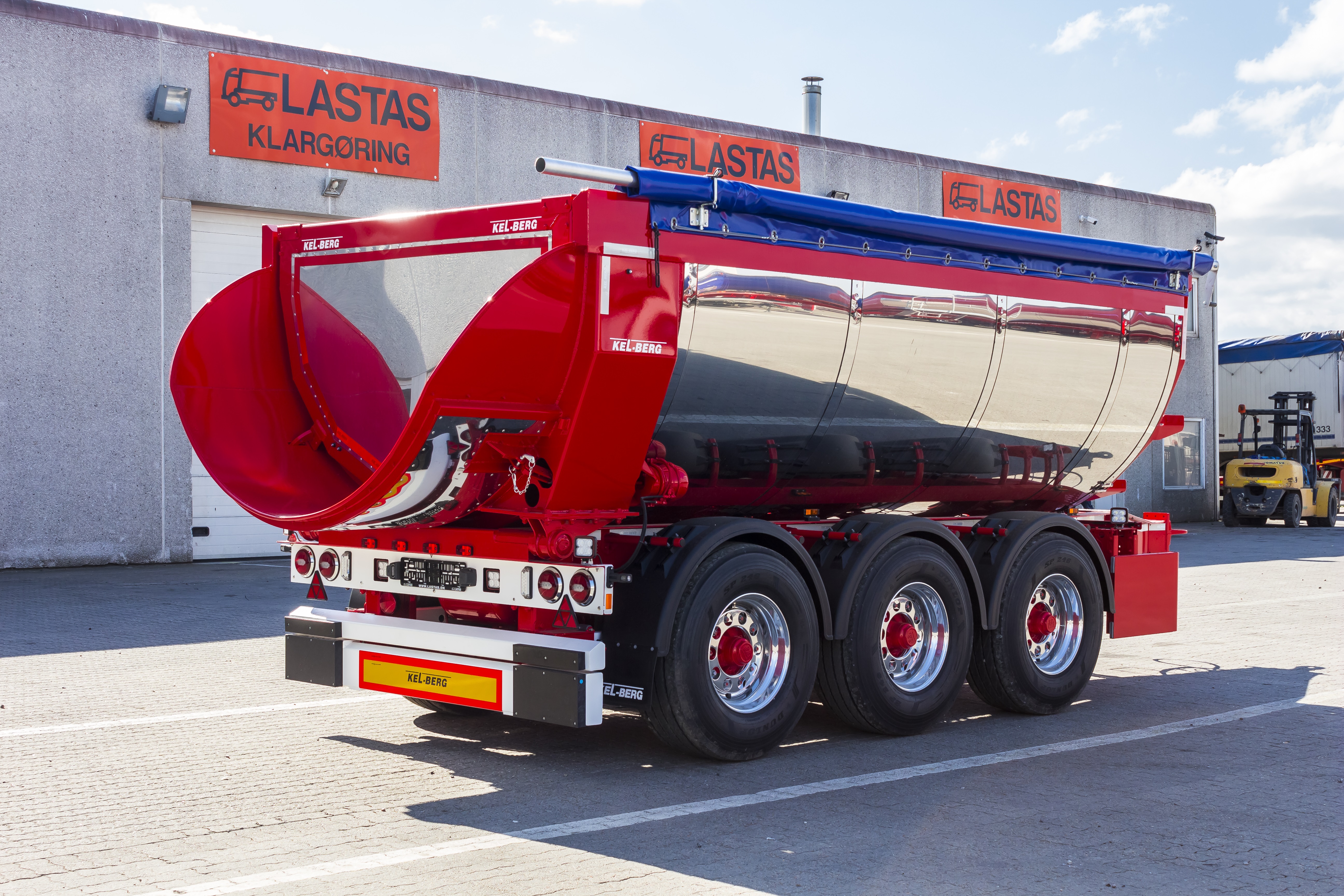

T850K KEL-BERG 3 AXLE DRAWBAR INSULATED, 14.3 M³ HALF-ROUND TIPPING TRAILER

SPEC SHEET (PDF) GET A QUOTE

WEIGHT & DIMENSIONS

Allowable gross vehicle weight 23,000 KG

Allowable axle load 8,000 KG

Volume 14.3 m³

CHASSIS

The folding trailer has longitudinal elements that are welded to an I-profile in high-strength steel, with strong cross-members and reinforcements that make the chassis really solid.

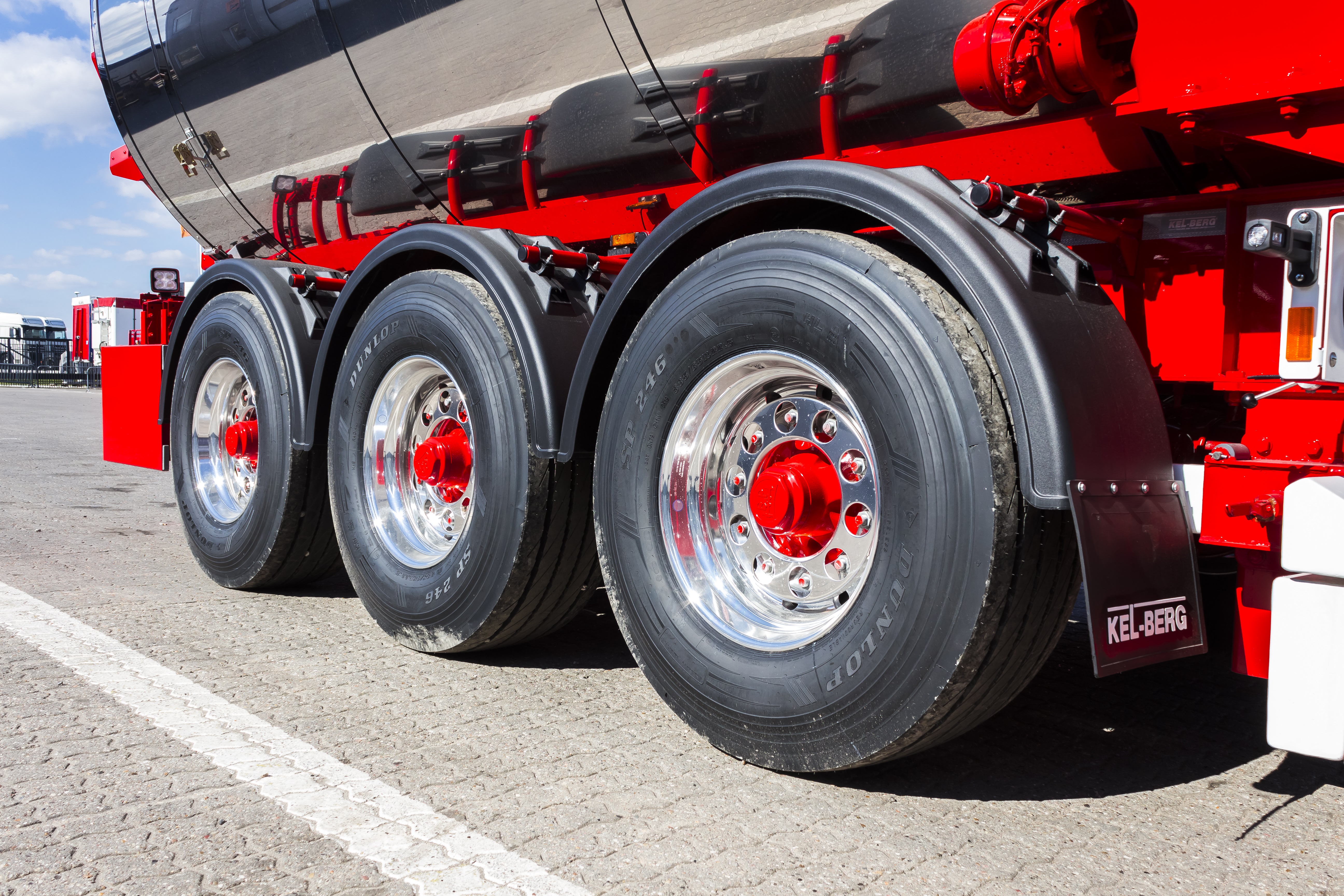

AXLES

Three 9-tonne BPW axles are fitted.

BRAKES

The folding trailer has a 2-line compressed air system with parking brakes and shunting valve and a 2S/2M EBS system.

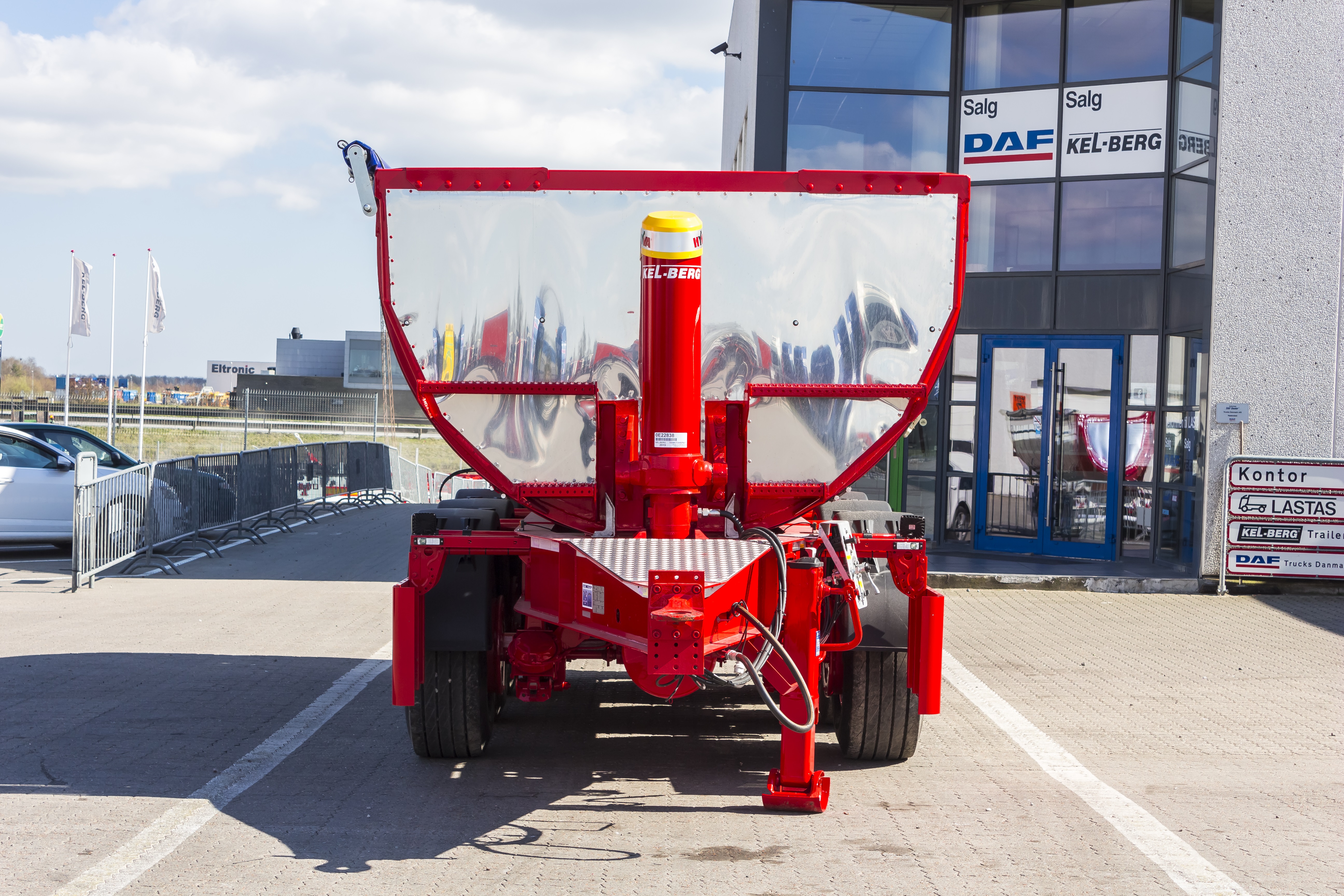

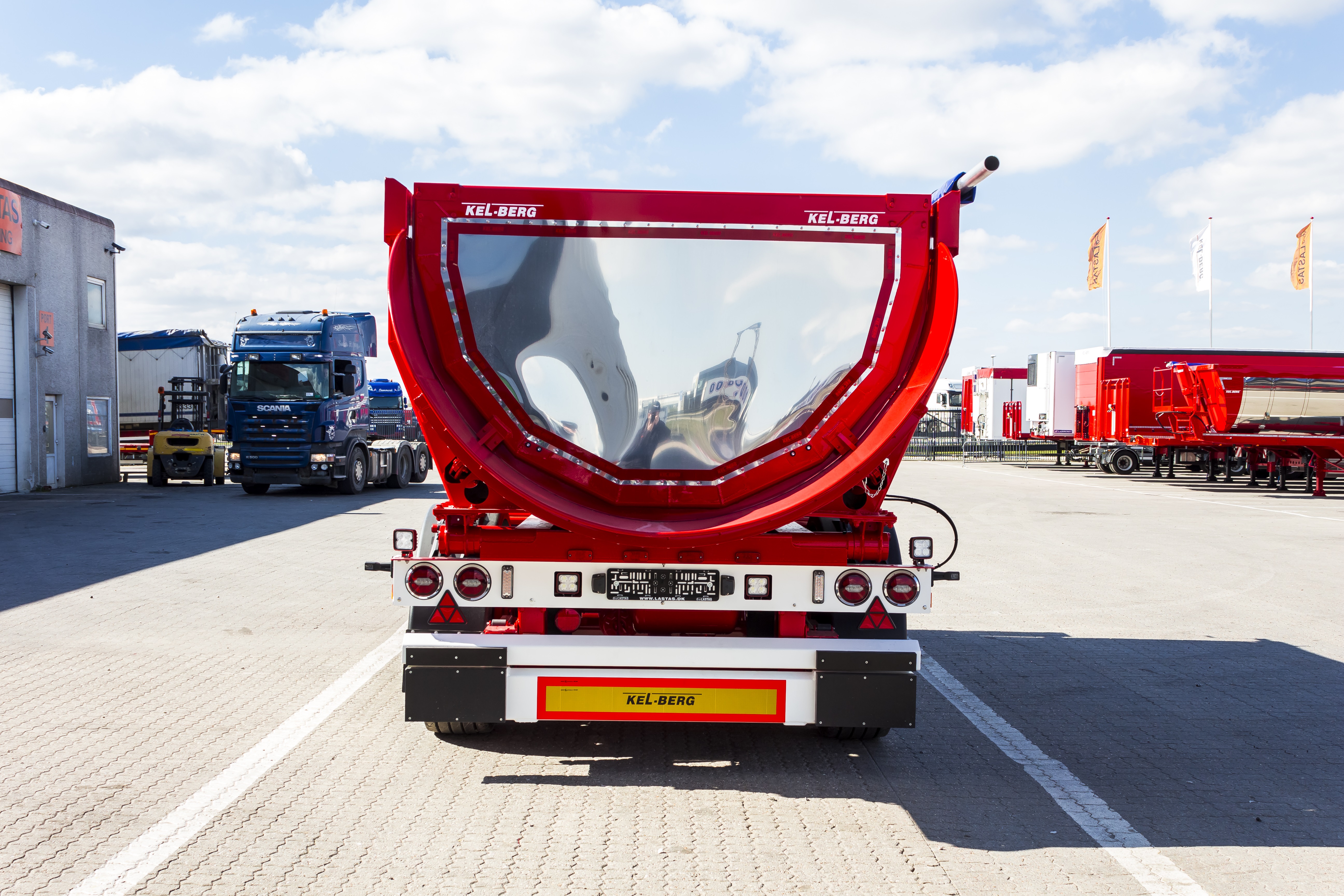

TAILGATE

The interior of the asphalt trailer has a top-hung tailgate with a pneumatic opening/closing system. The tailgate is controlled via a switch mounted in the vehicle.
