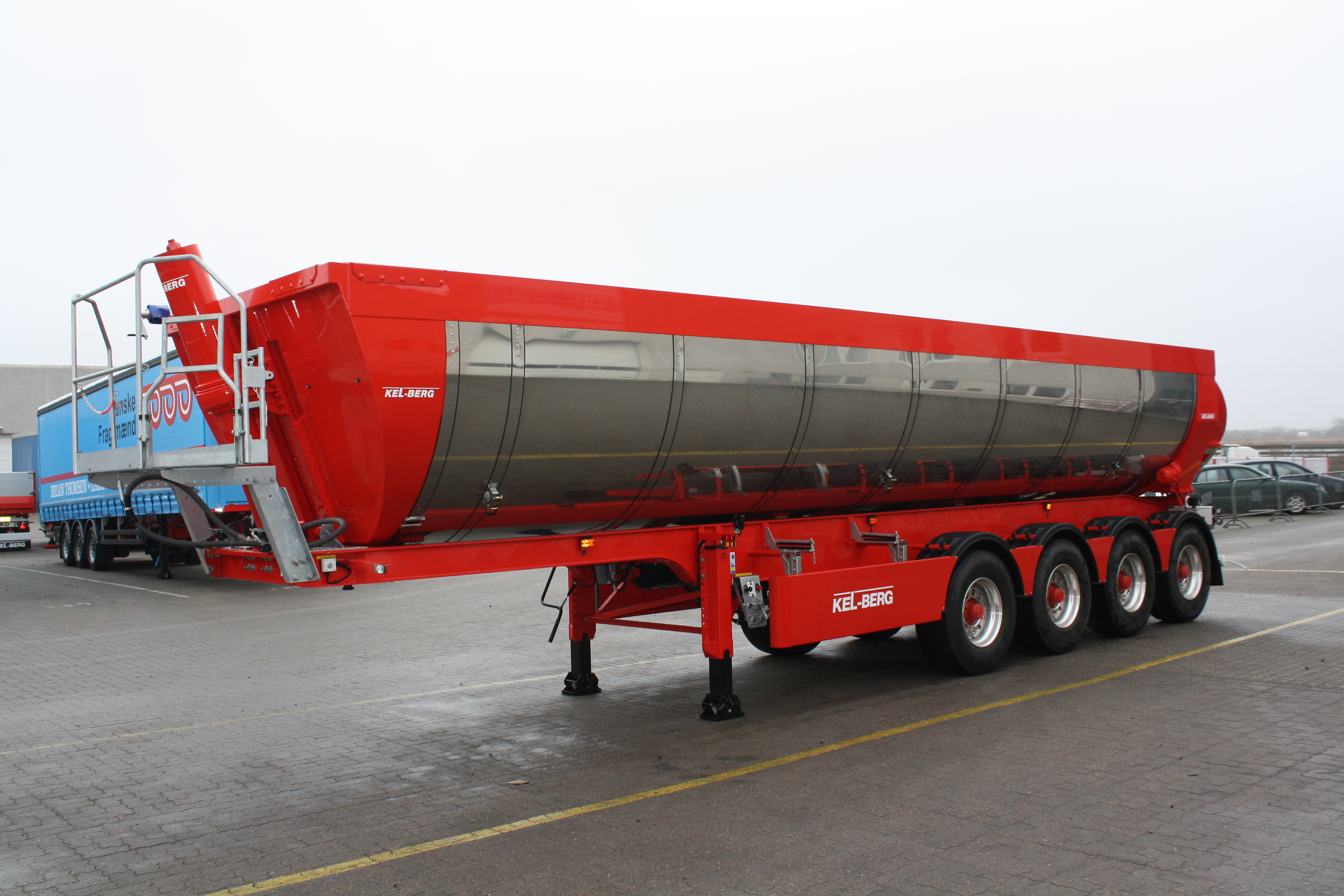

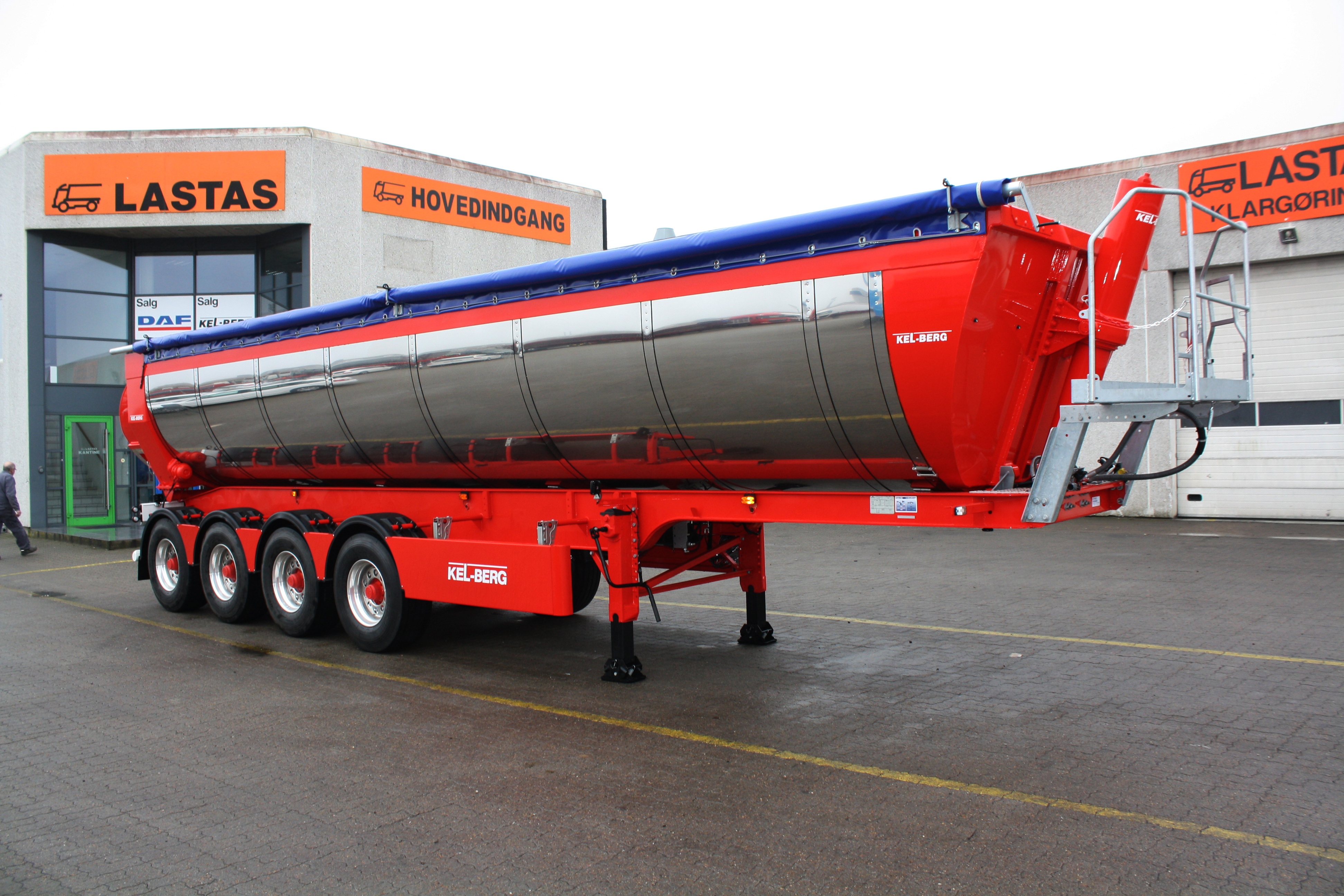

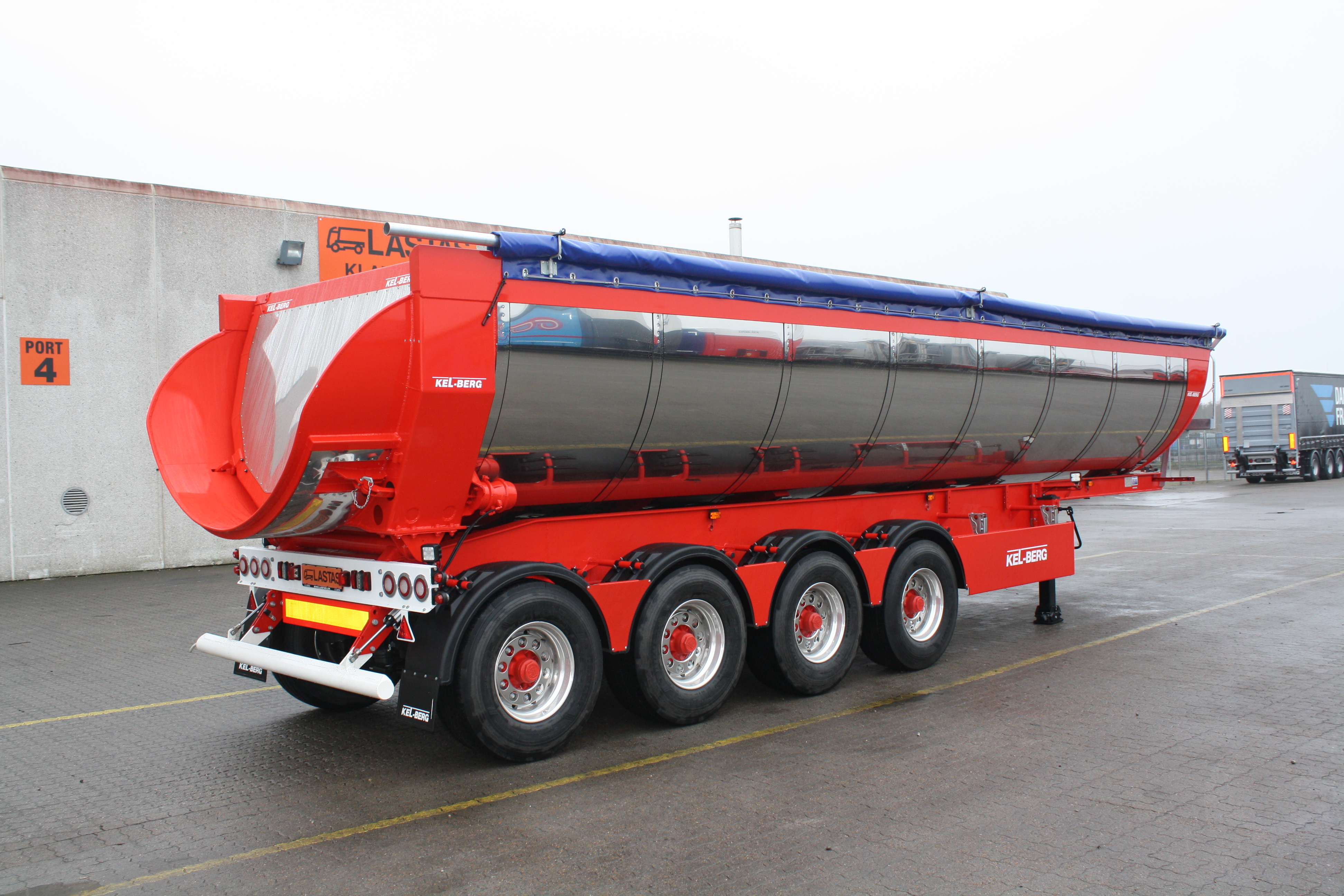

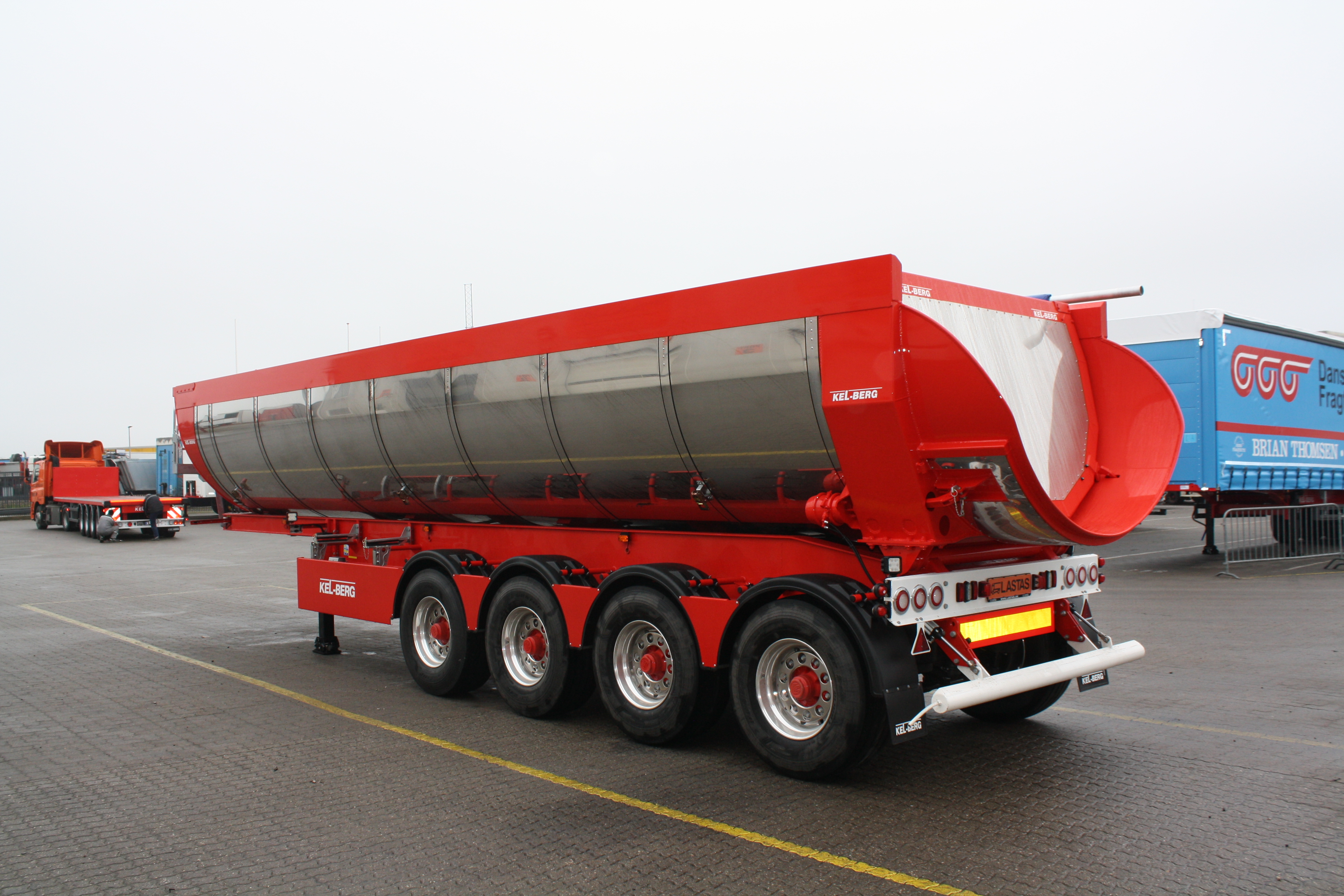

T360K KEL-BERG 4-AXLE INSULATED TIPPING TRAILER 32 M³

WEIGHT & DIMENSIONS

The trailer has a permissible total weight of 48,000 kg and a capacity of 32 m3.

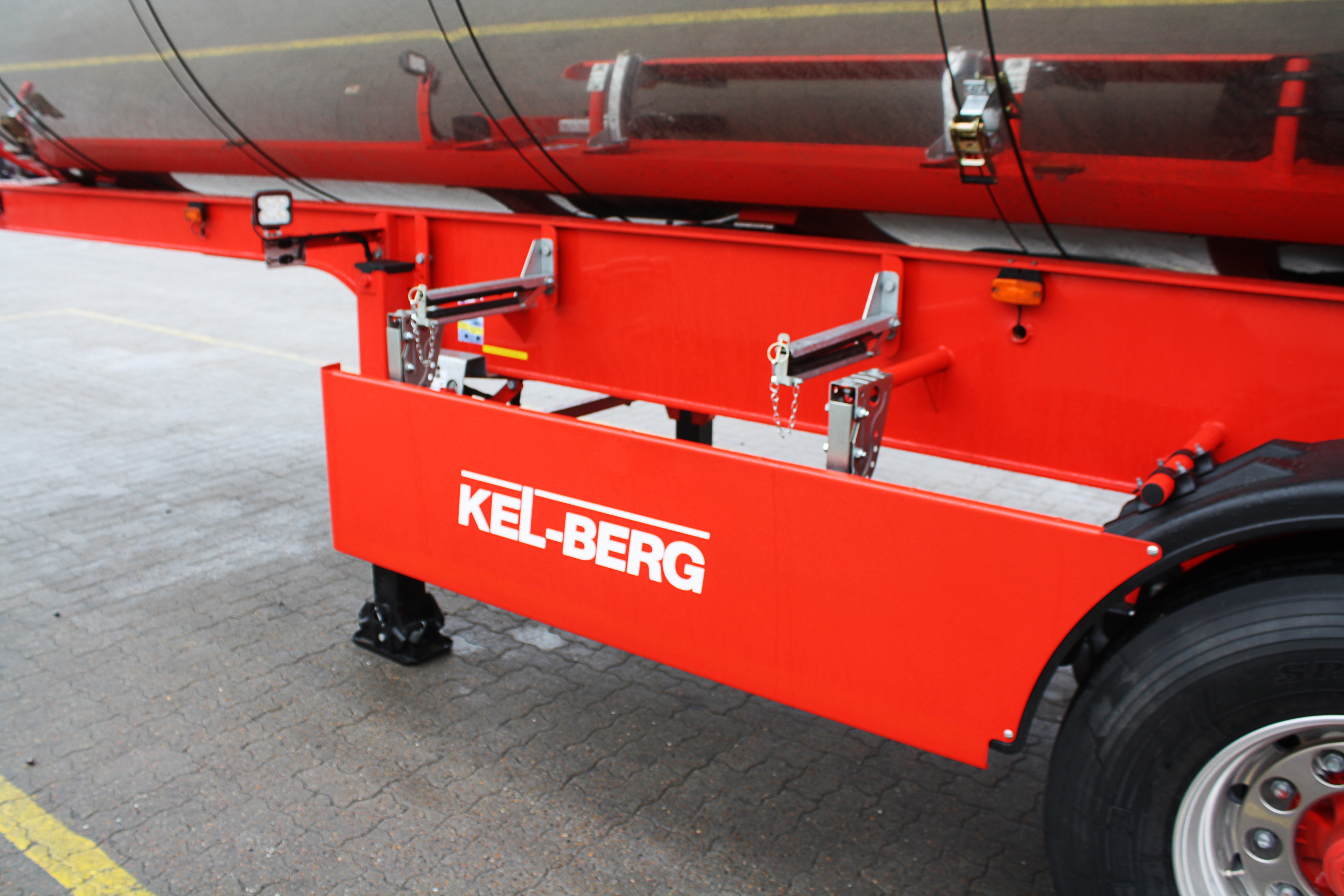

CHASSIS

The longitudinal elements are welded in I-profile of st.52-3.

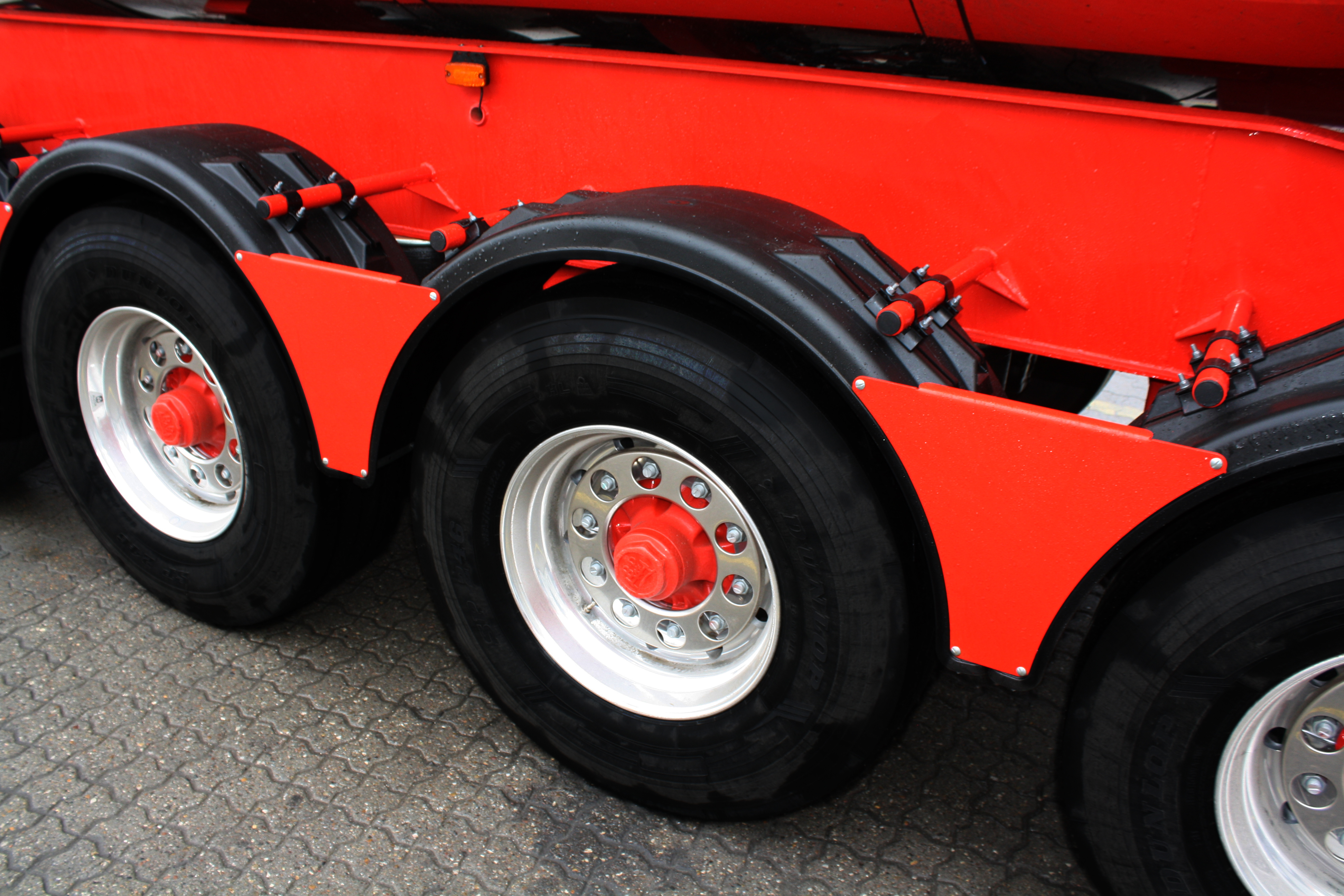

AXLES

The fourth axle is self-steering.

BRAKES

The folding trailer has a 2-line mechanical air brake system of a recognised brand.

ELECTRICAL SYSTEM

The electrical system is manufactured according to ISO 3731.

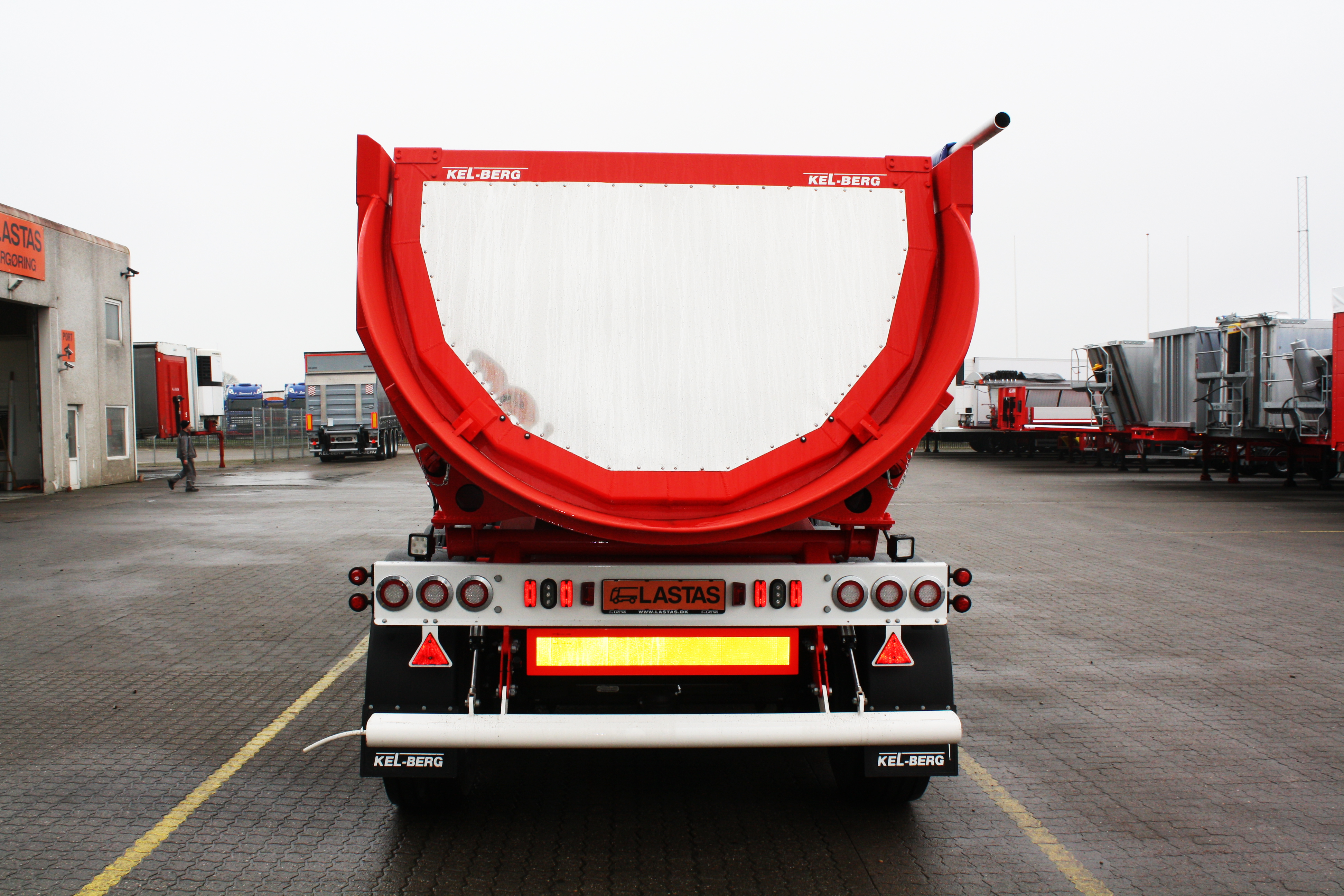

REAR HATCH

Internal, top-hung rear hatch with pneumatic opening/closing system.

ALUMINUM BODY

Sides and bottom are made of 7 mm rolled aluminium foil in a particularly durable quality.

FOLDING SYSTEM

The folding trailer has a roller tarpaulin made of 650 g/m² fabric and mounted on 80 mm aluminium tubes, with removable TIR eyes on the right side.

PAINTING

Chassis painted in one RAL colour with approved ICI products.
