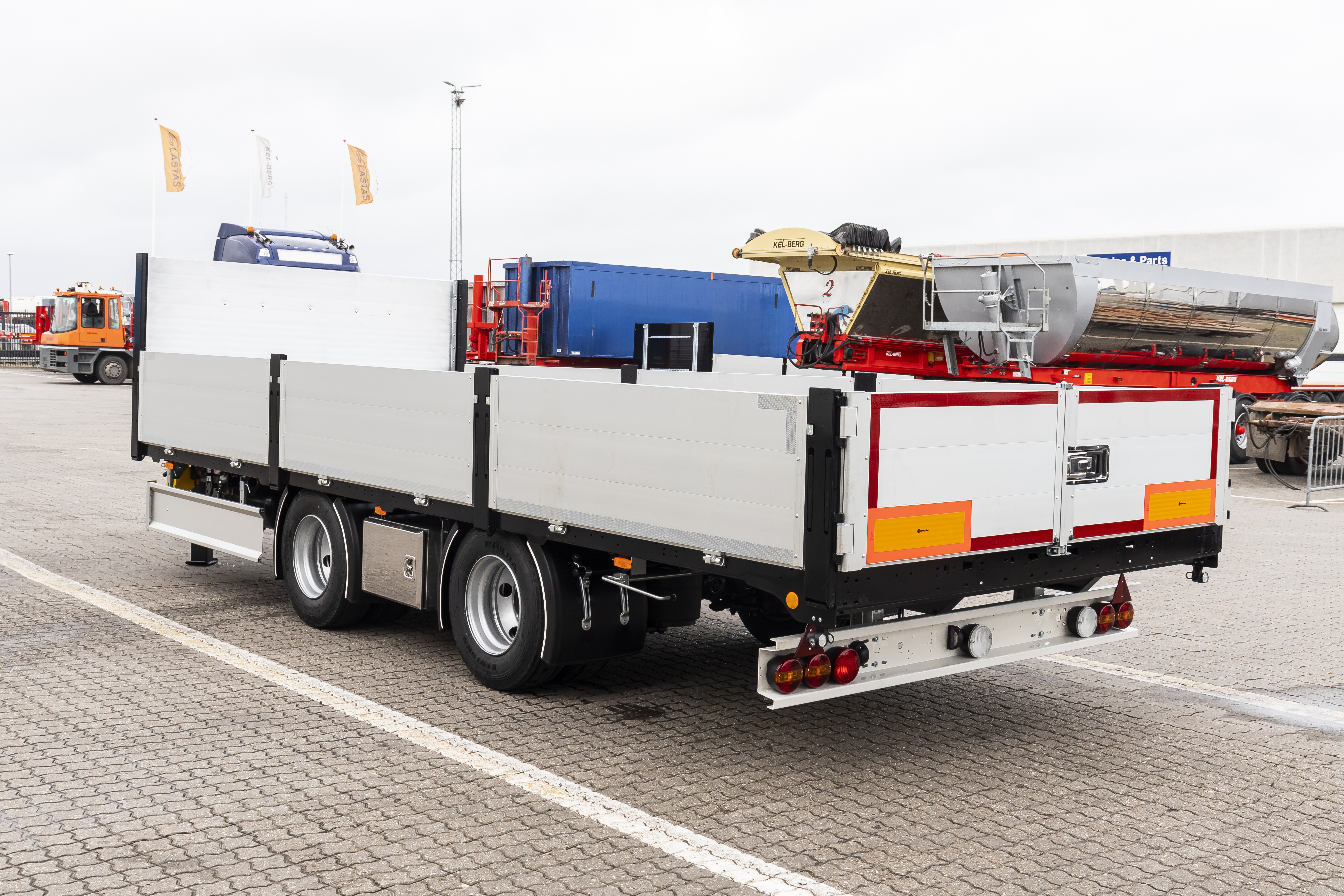

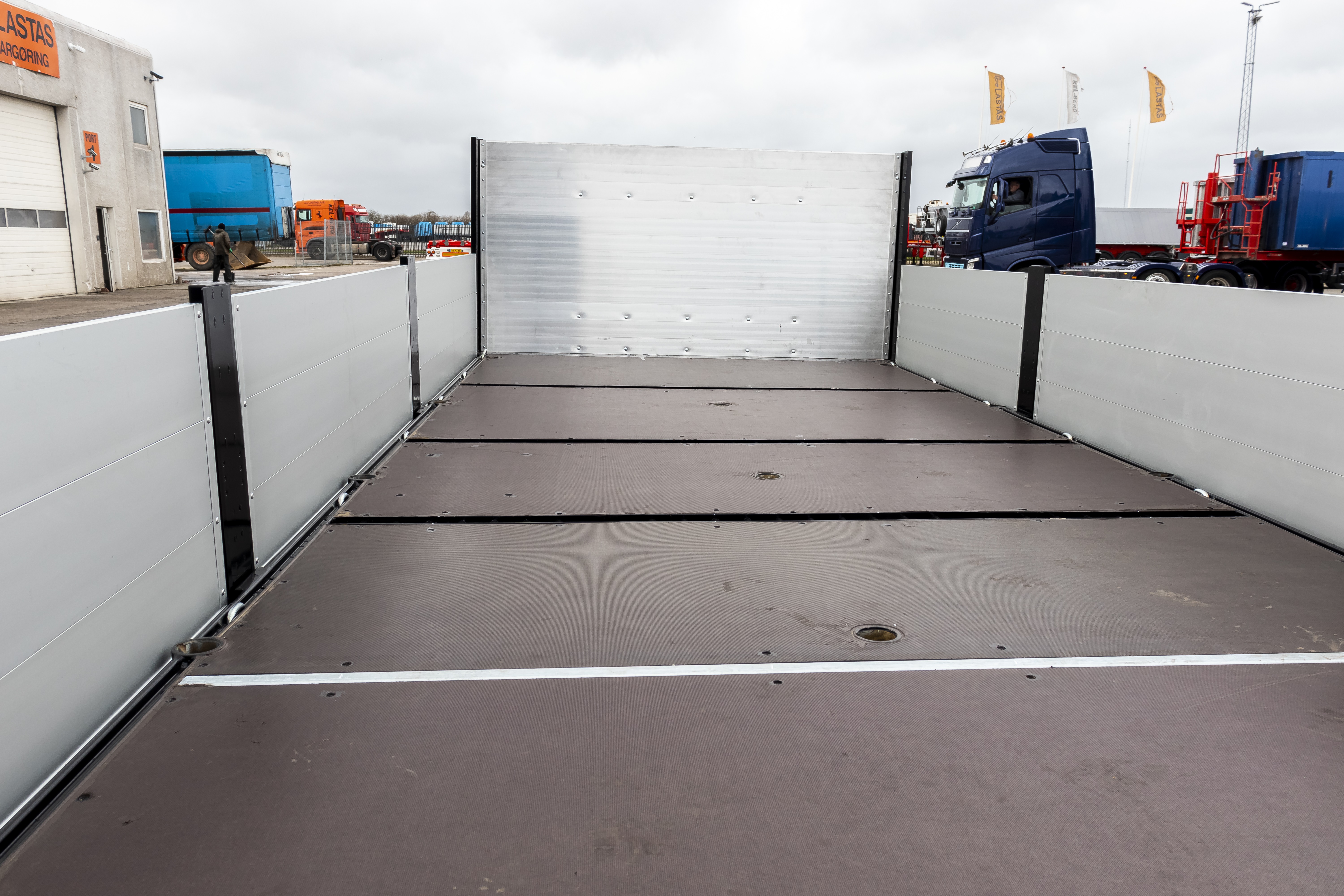

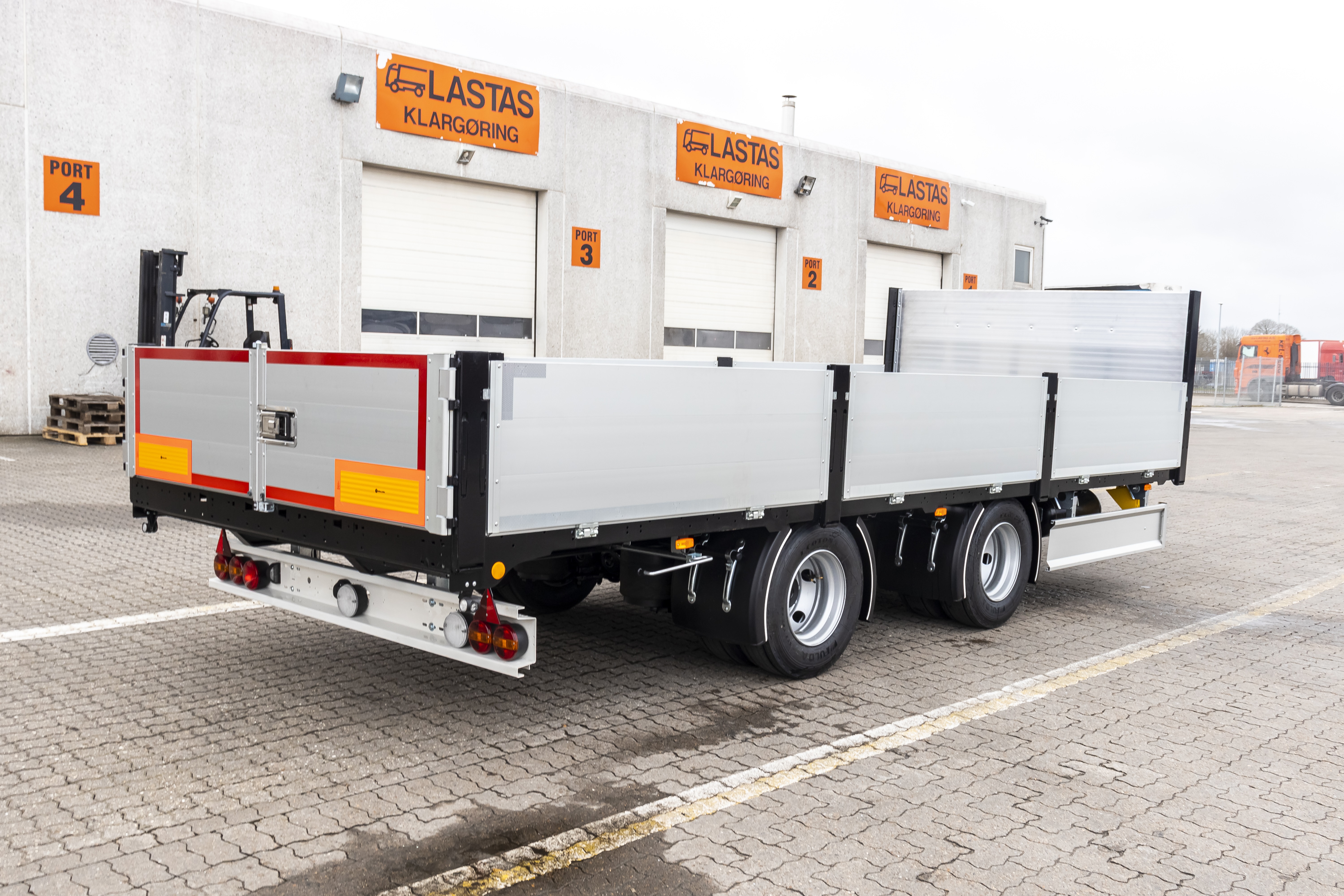

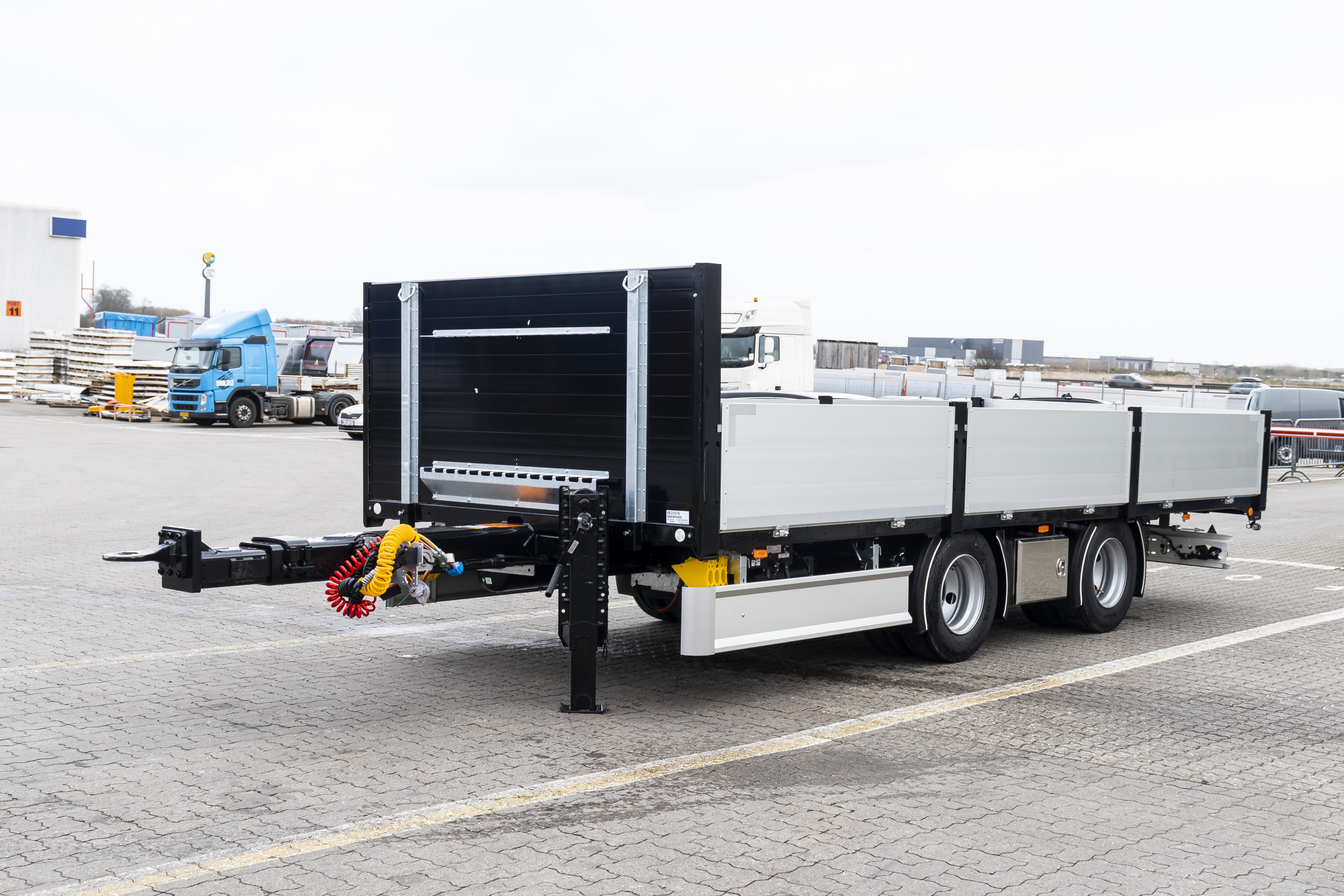

D920F KEL-BERG 2-AXLE OPEN TRAILER WITH ALUMINIUM SIDES

SPEC SHEET (PDF)     GET A QUOTE

DIMENSIONS & WEIGHT

The trailer has a tare weight of approx. 4,540 kg. The wheelbase of the trailer is 1810 mm.

CHASSIS

Longitudinal beams welded in I-profile in St.52-3 and are fitted with heavy-duty cross beams and reinforcements.

BRAKES

Legally required EBS system.

AXLES

The trailer is equipped with 2 x 10 tonne BPW axles with original BPW air suspension.

ELECTRICAL SYSTEM

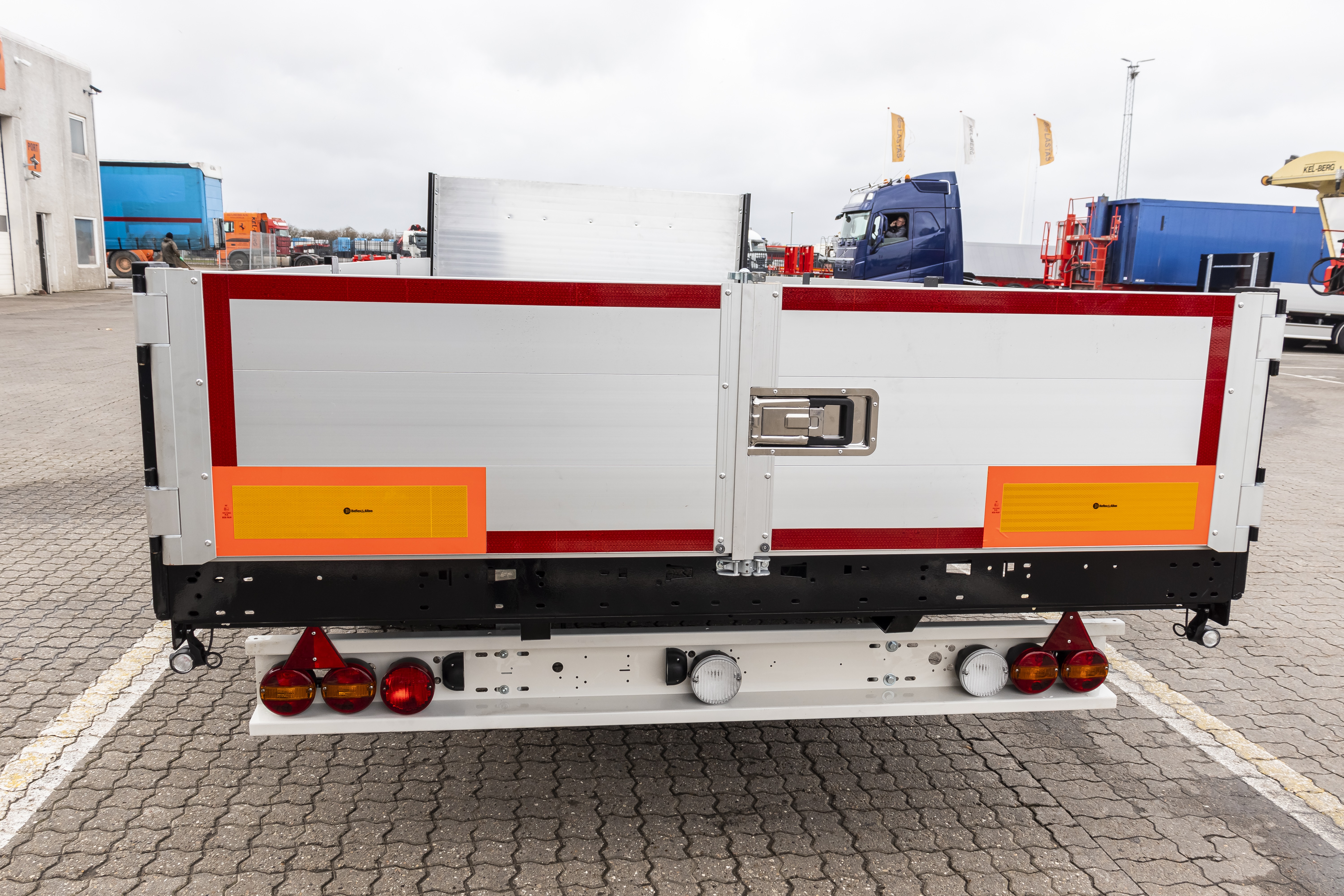

Statutory marker lights and reflectors.

LOAD LASHING

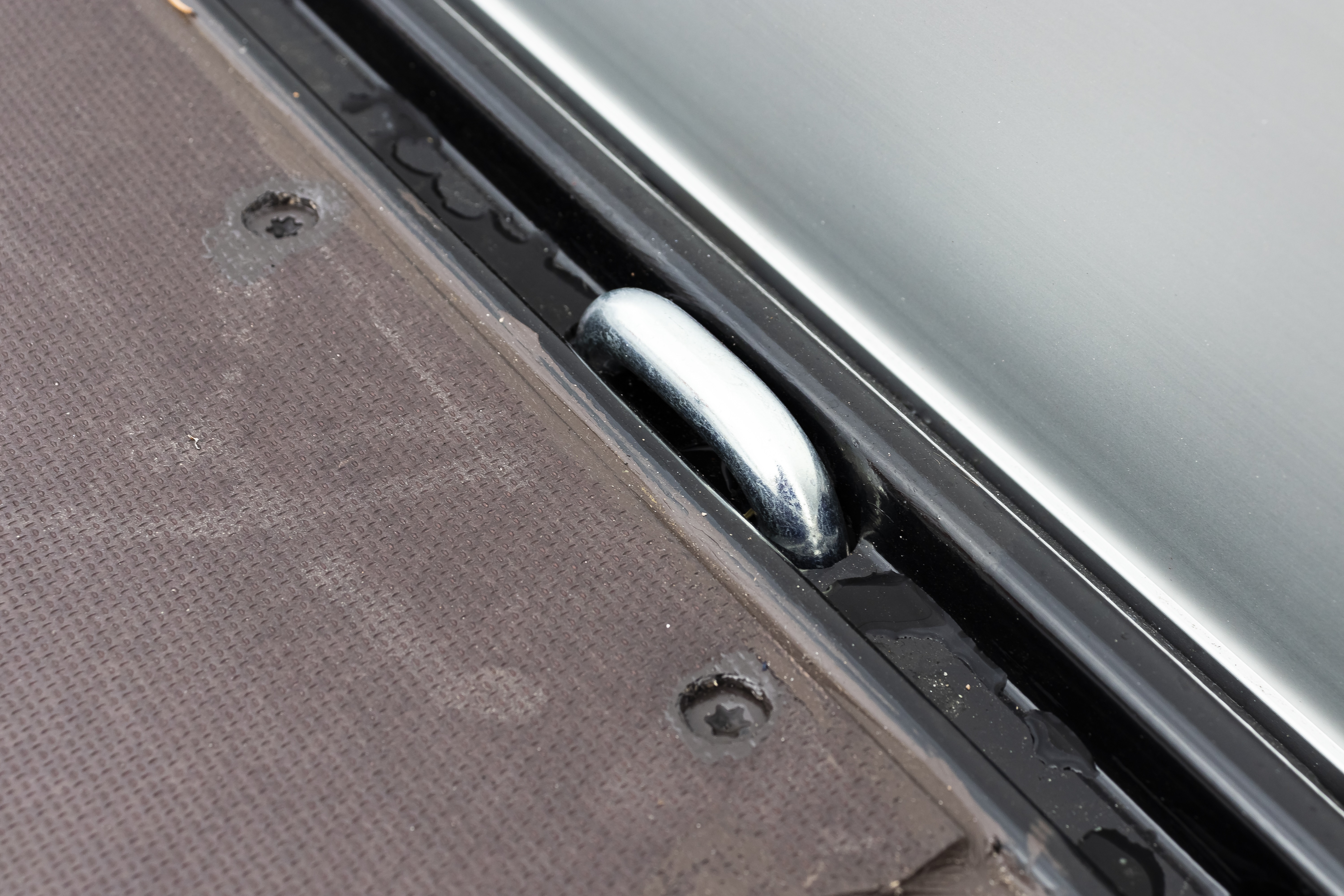

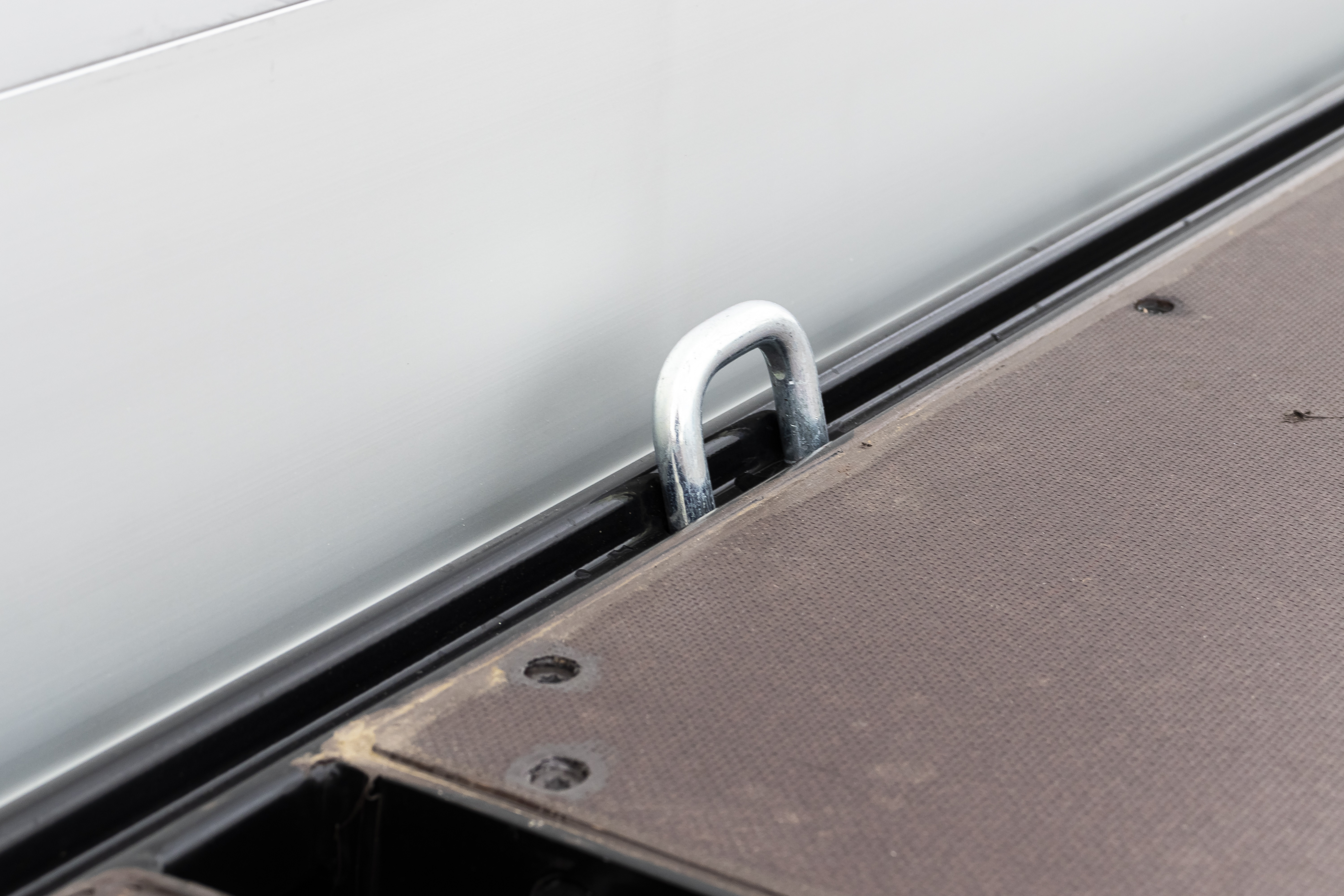

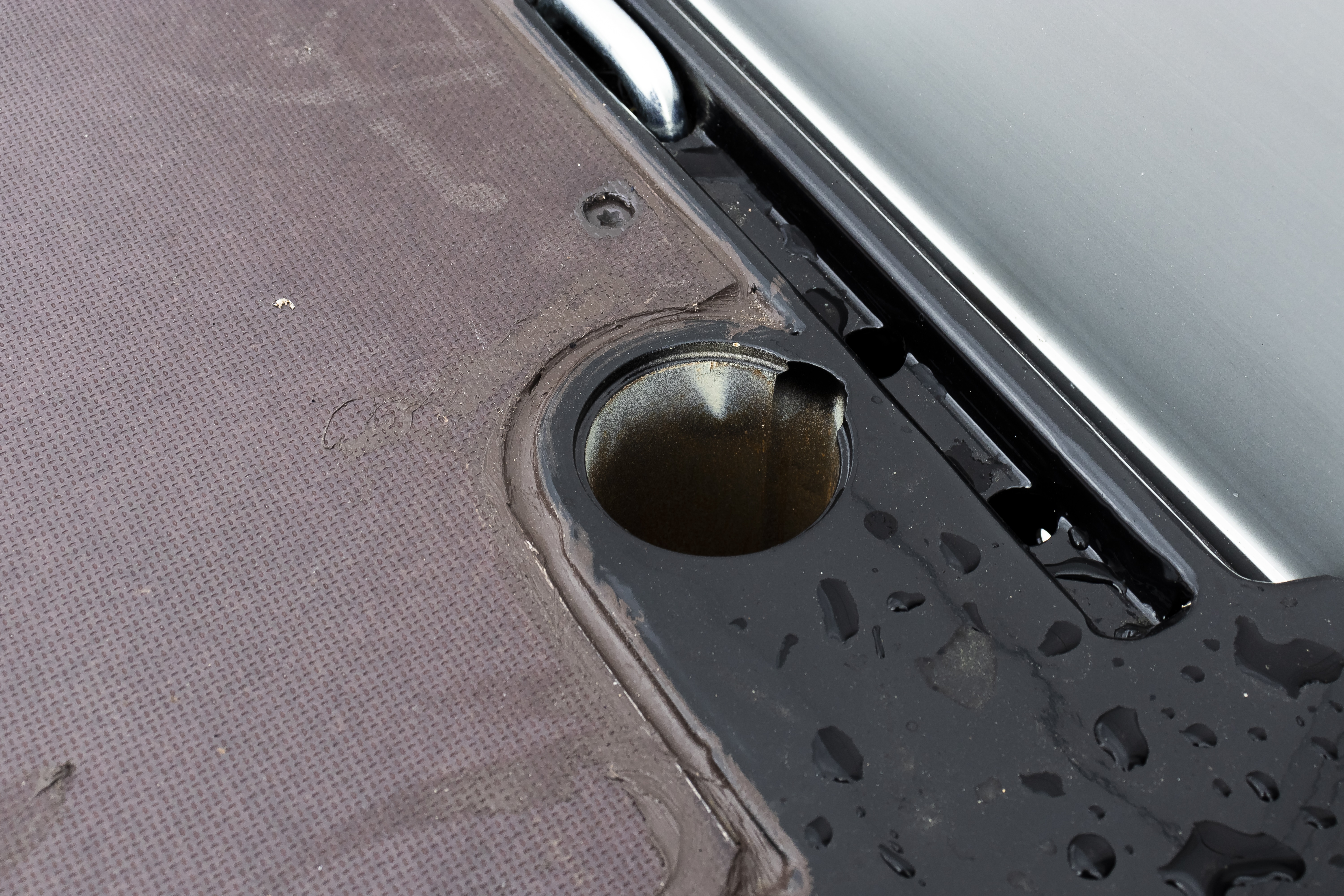

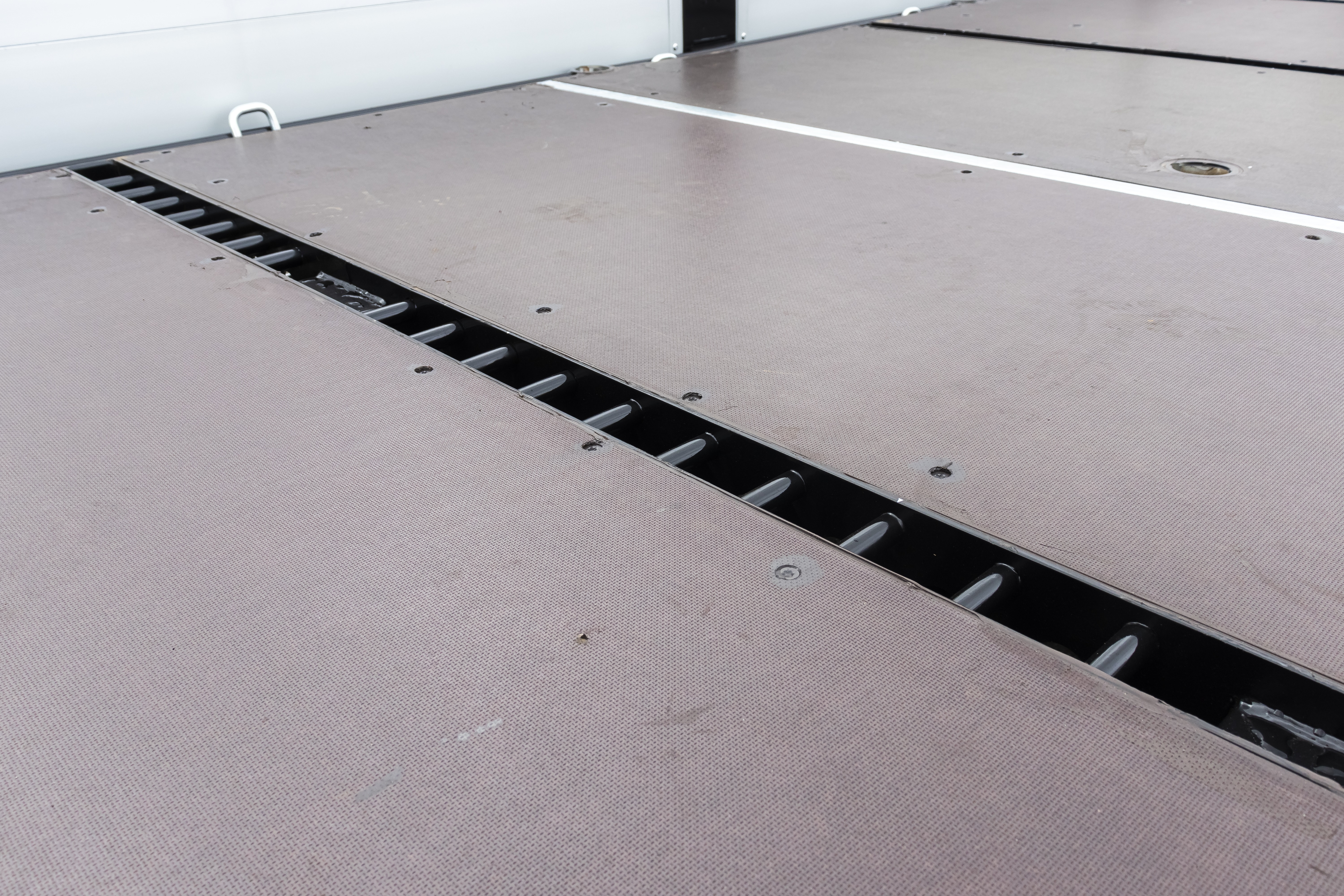

The trailer has 6 pcs Laxo holes in the edge frame and 10 pcs 2.5-tonne lashing rings in the edge frame.

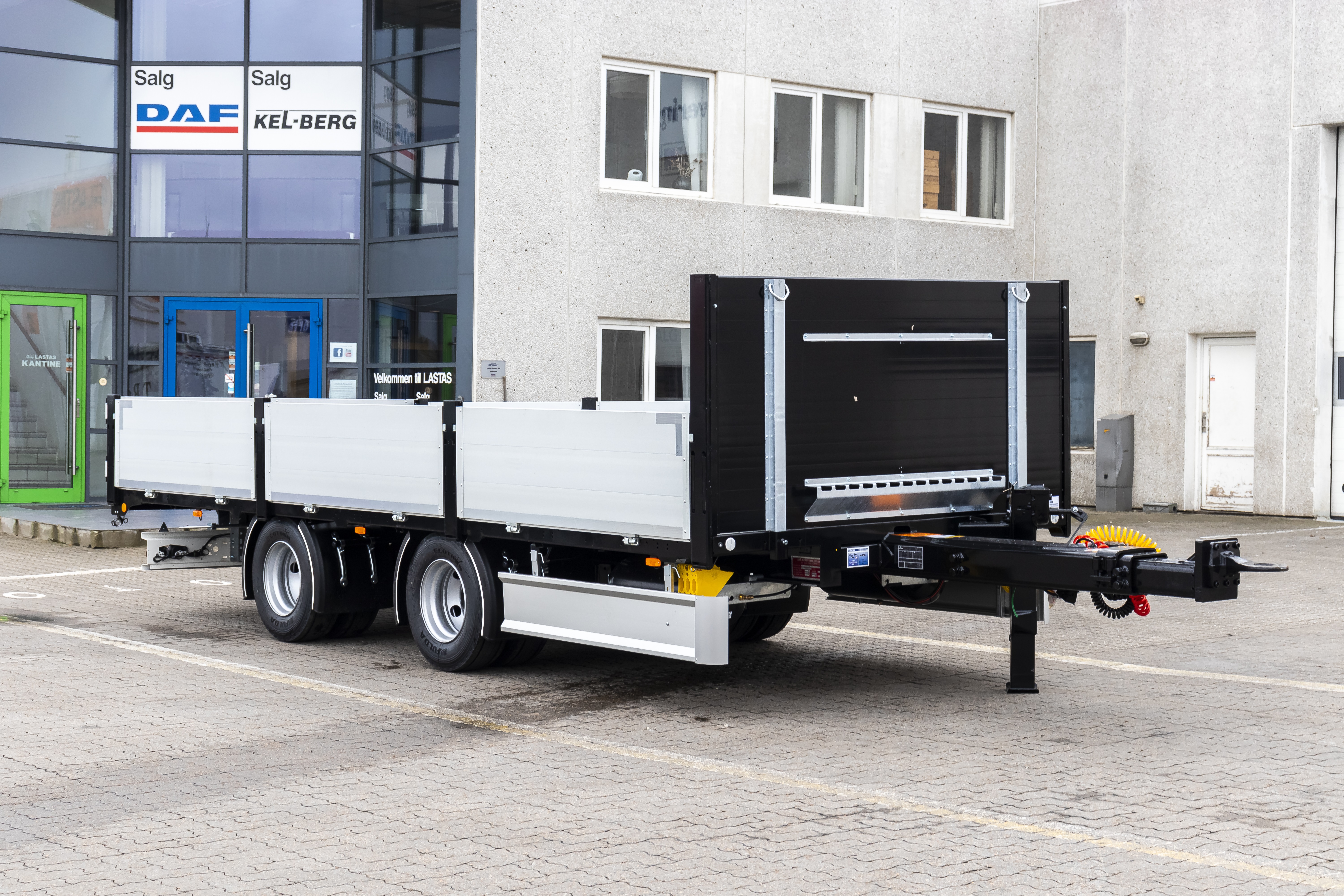

DRAWBAR

A drawbar with a VBG 57 mm drawbar eye is fitted on this trailer.
