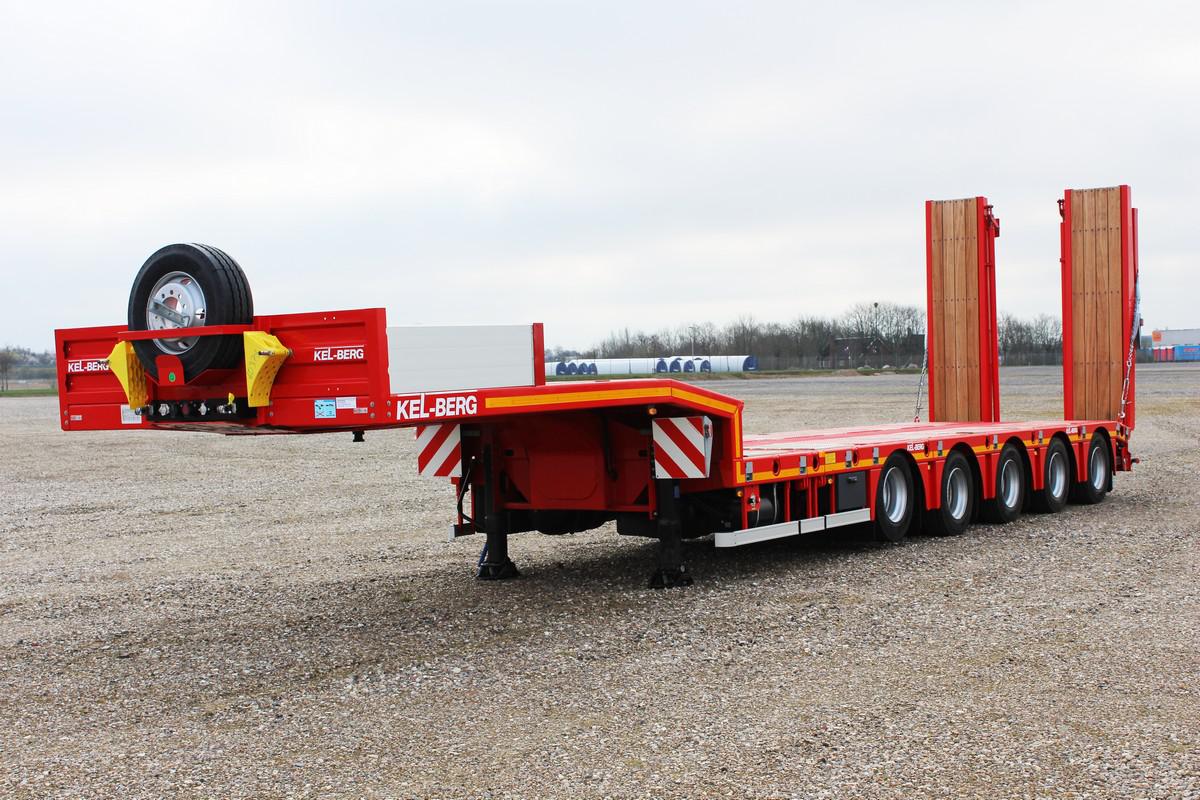

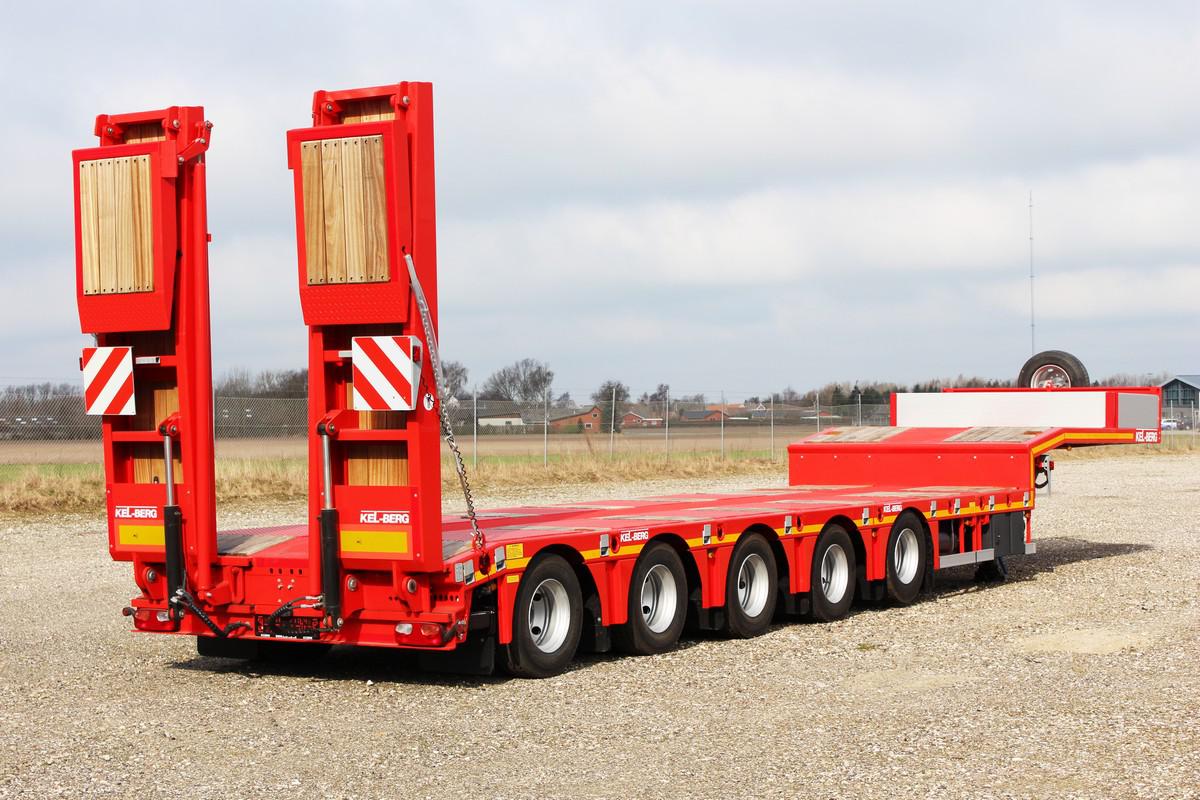

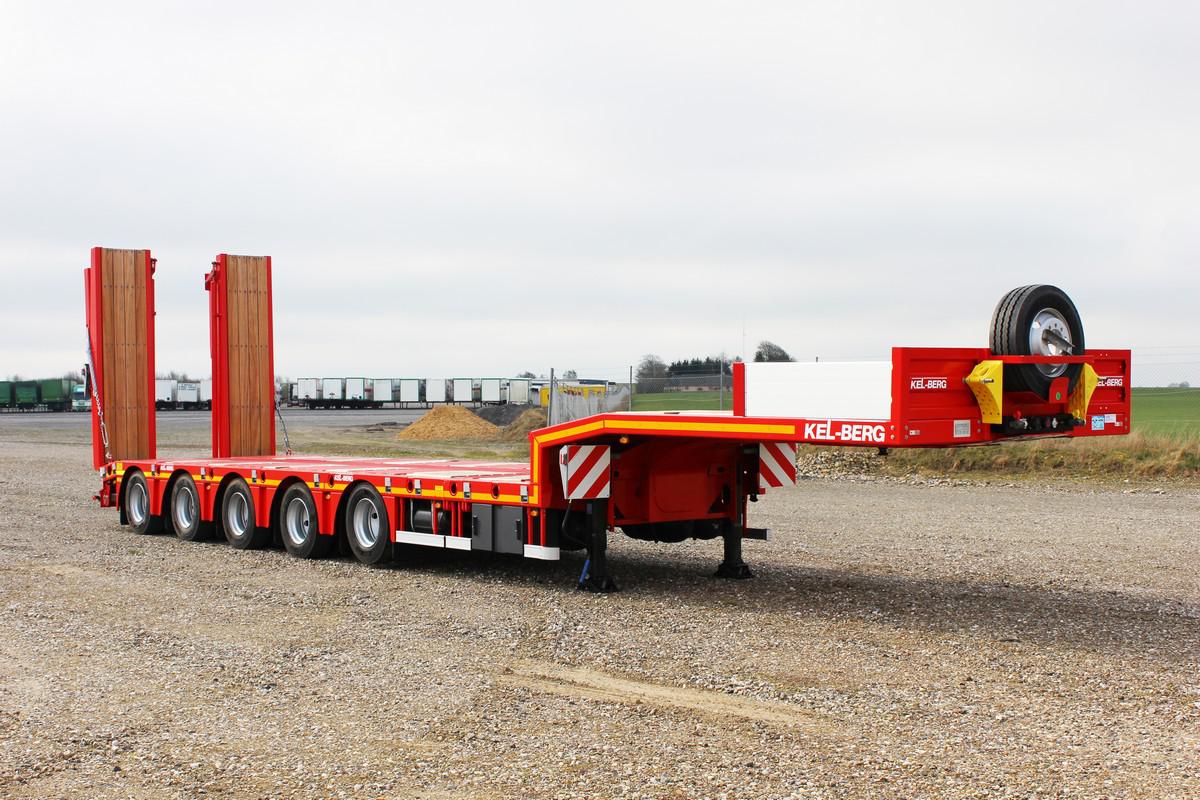

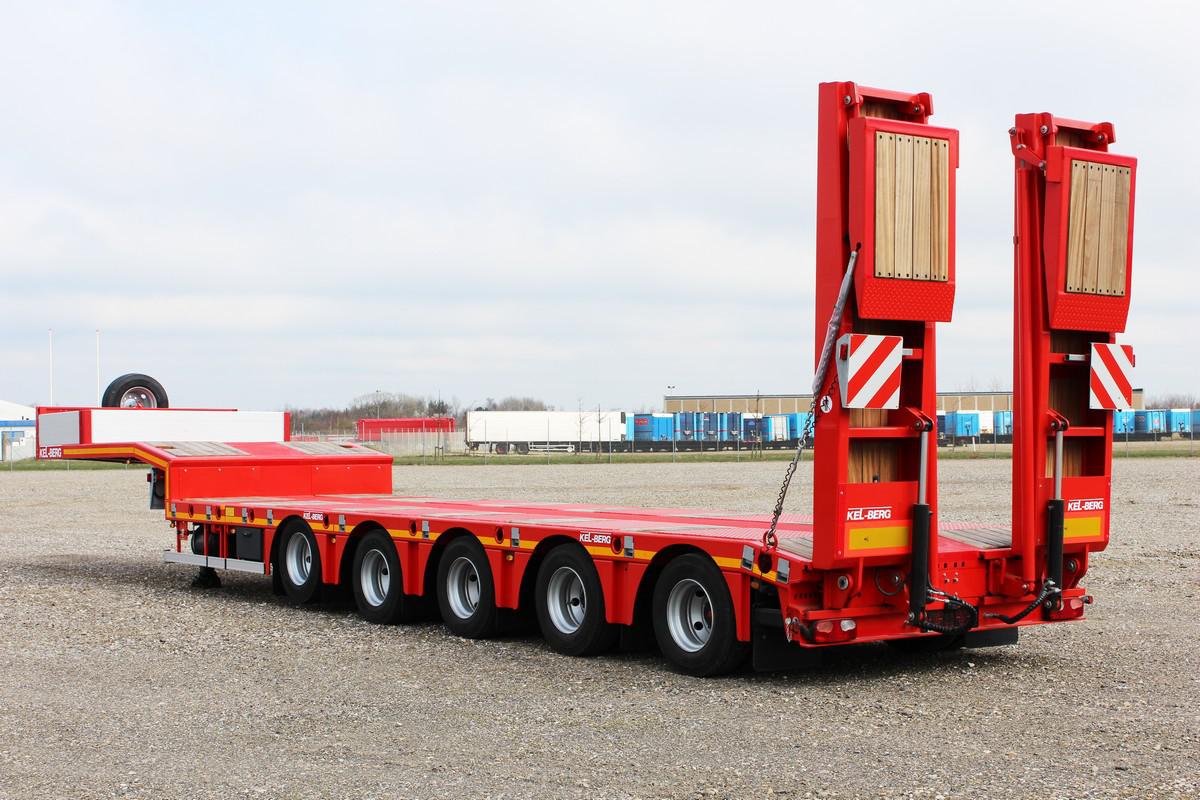

S905KT KEL-BERG 5-AXLE EXTENDING MACHINE CARRIER

DIMENSIONS & WEIGHT

The total weight is approx. 14500 kg and the total length of the machine trailer is 13190 mm.

CHASSIS

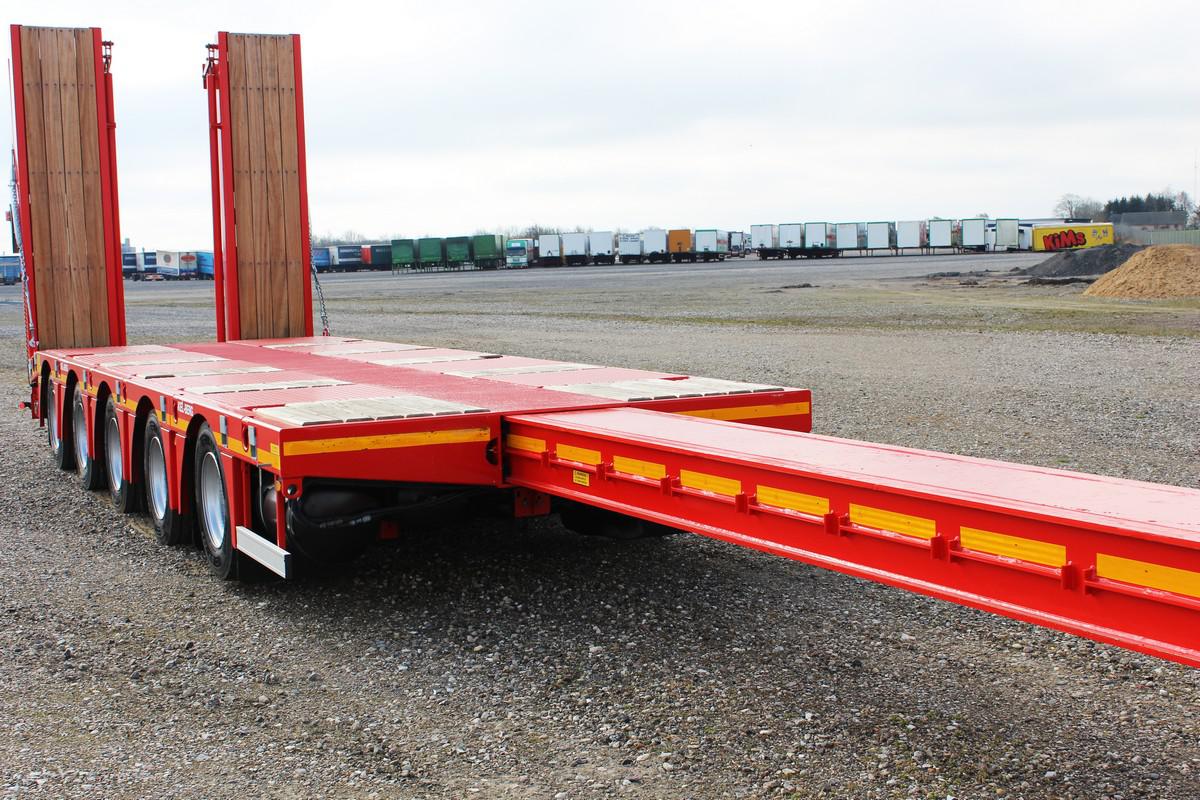

The machine trailer has a strong chassis that is equipped for heavy transport. The crossbars are assembled around the axles in a frame that provides a stable construction. The machine trailer can be extended up to 6,000 mm.

PAINTING

The chassis is painted with 2-K paint.

AXLES & WHEELS

Original 5-axle SAF axles with drum brakes. It has a technical axle load of 11,000 kg.

AIR SUSPENSION

The air suspension has an integrated lifting and lowering valve.

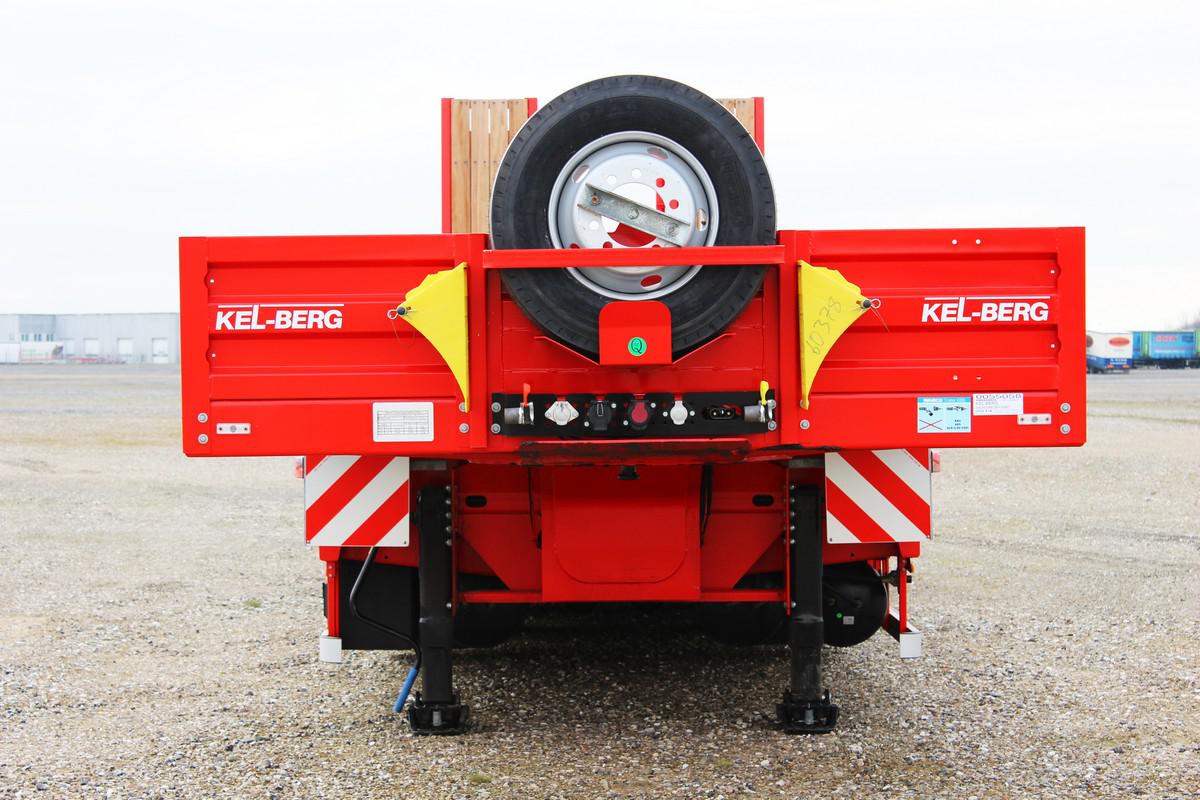

OUTSTANDERS

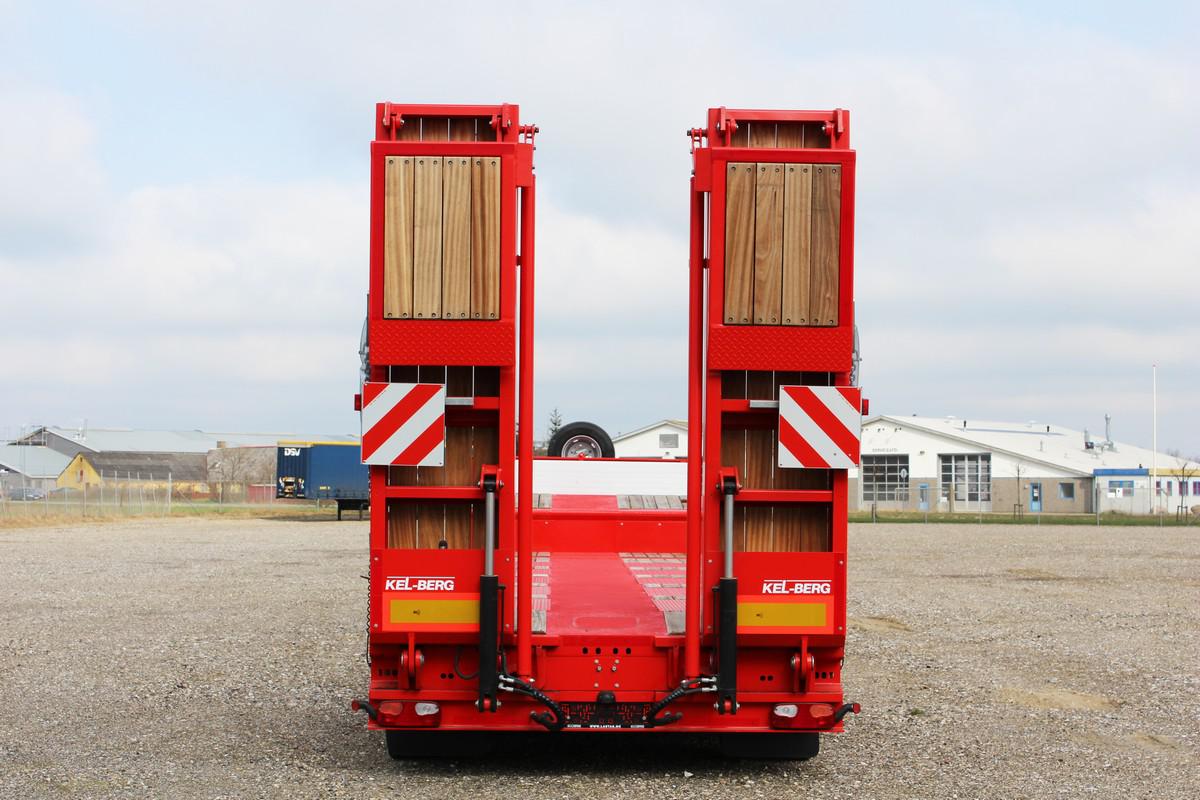

Mechanical outriggers with 2 speeds and flat foot. And the trailer has 2 manual outriggers for folding down at the rear before loading.
