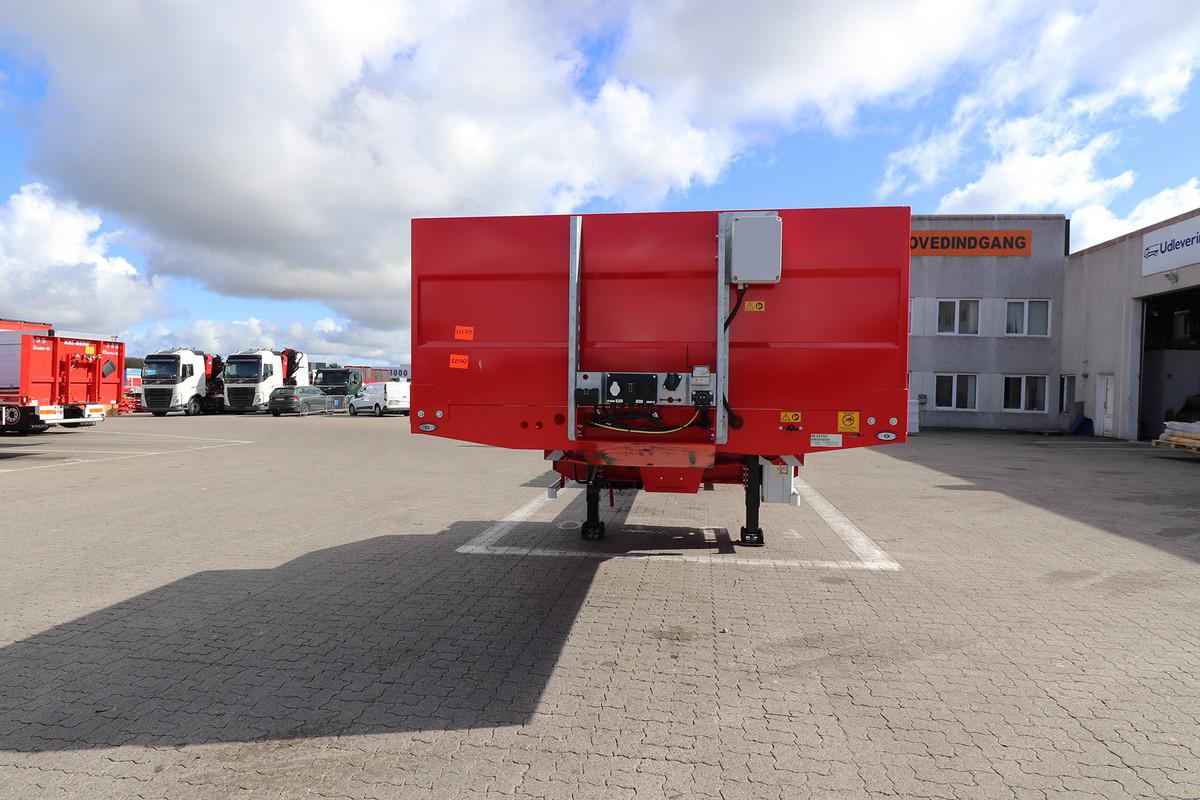

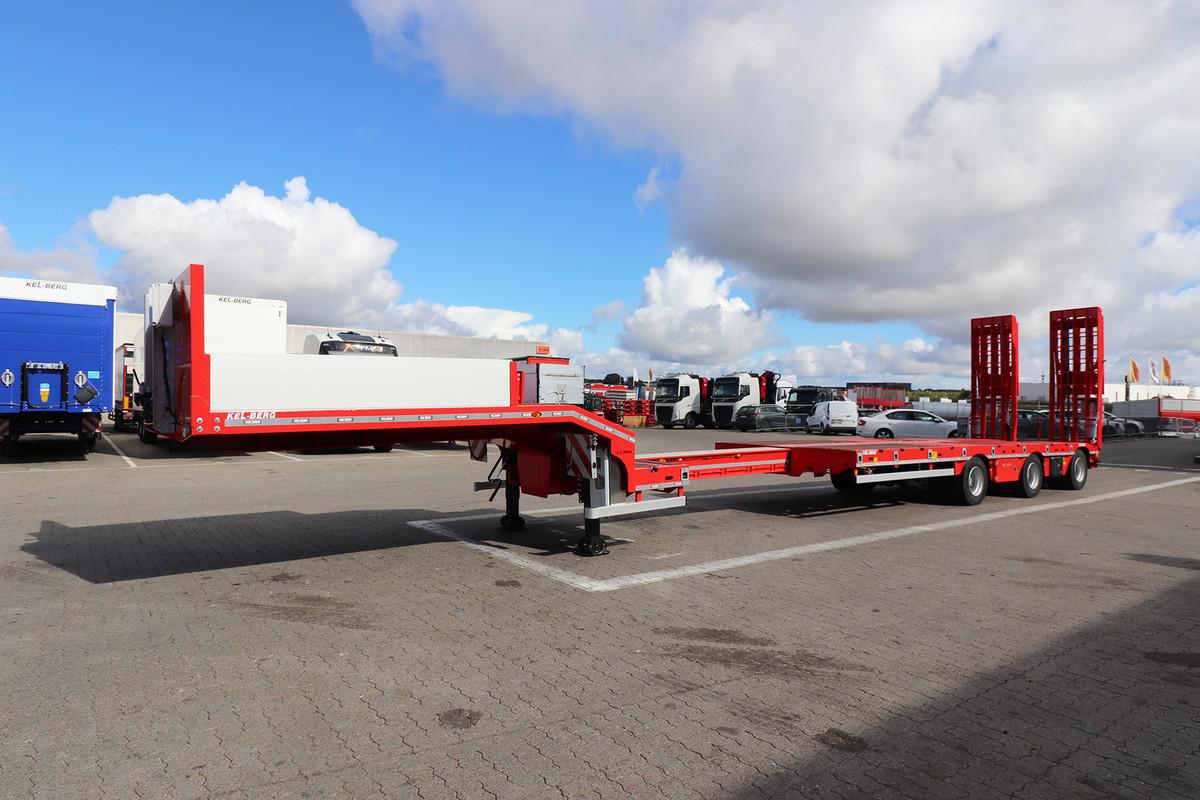

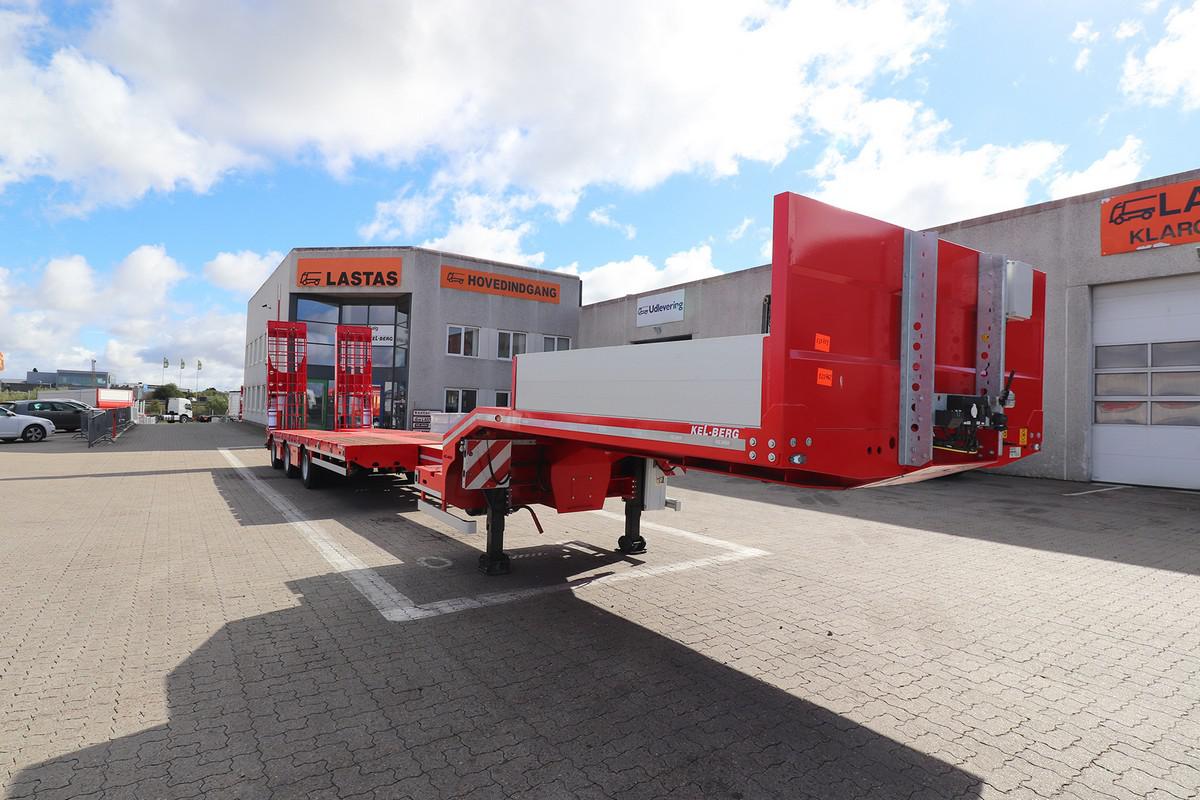

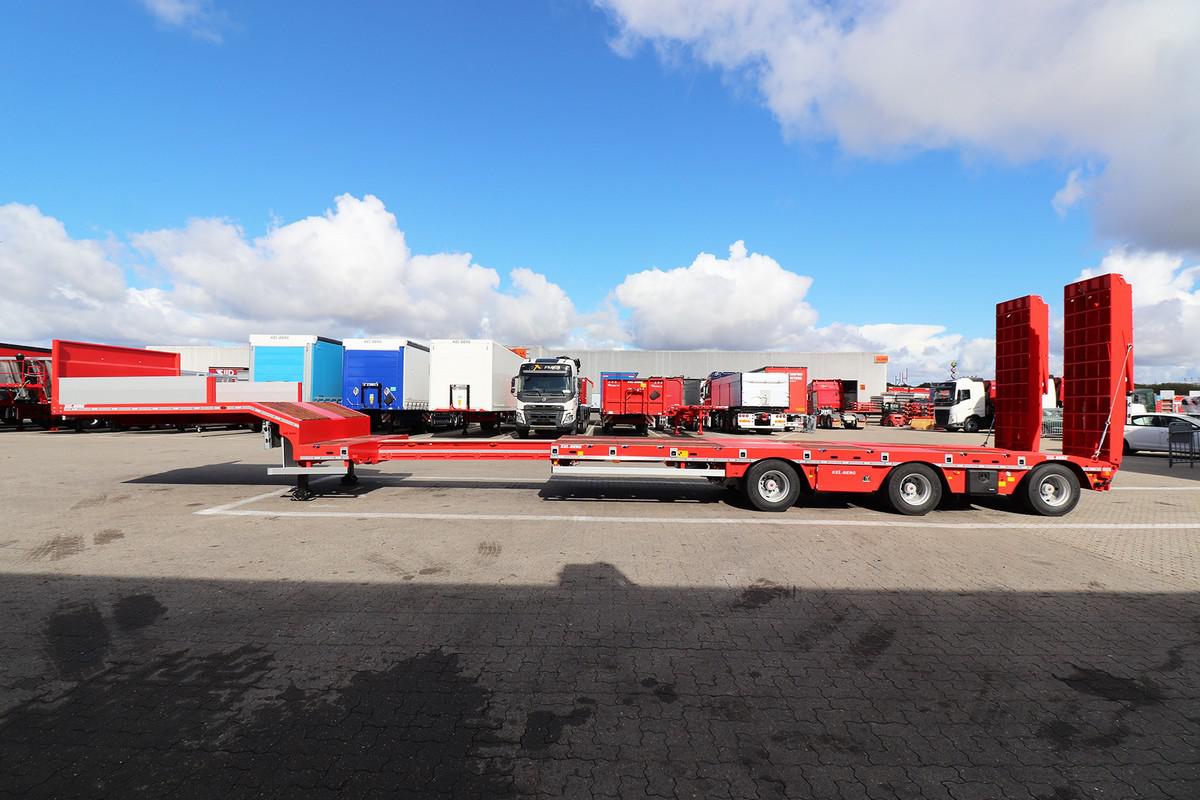

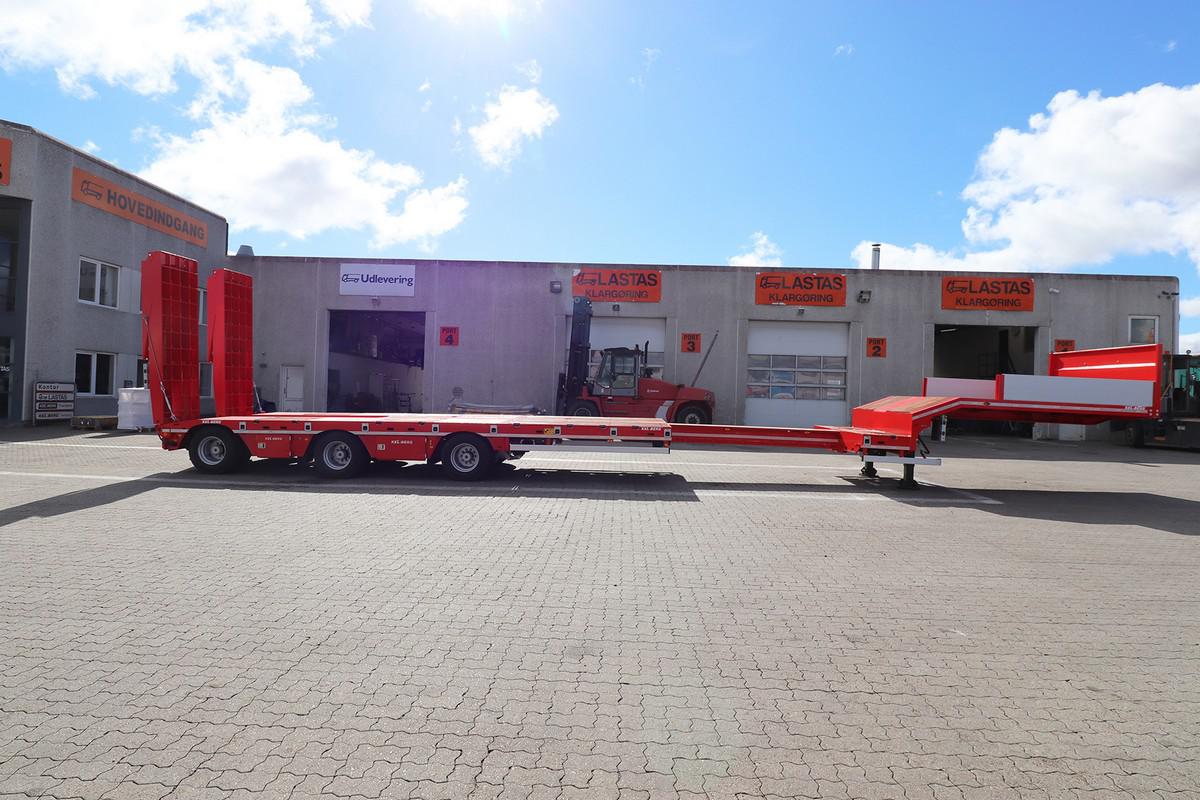

S500R KEL-BERG 3 AXLE STEPFRAME EXTENDING MACHINE CARRIER

WEIGHTS & DIMENSIONS

The machine drawbar trailer has a gross vehicle weight rating of 44,000 kg, and up to 60 km/h it is rated at 57,000 kg. It has a free turning radius of 2,700 - 2,300 mm.

CHASSIS

Central box beam welded in S700MC/S690QL high strength steel.

AXLES

3 x 12 tonne SAF axles with disc or drum brakes.

BRAKES

2-line mechanical compressed air brake system.

SUPPORT LEGS

2 flat-footed support legs of recognised brand.

ELECTRICAL SYSTEM

Legally required front and rear marker lights, legally required reflectors.

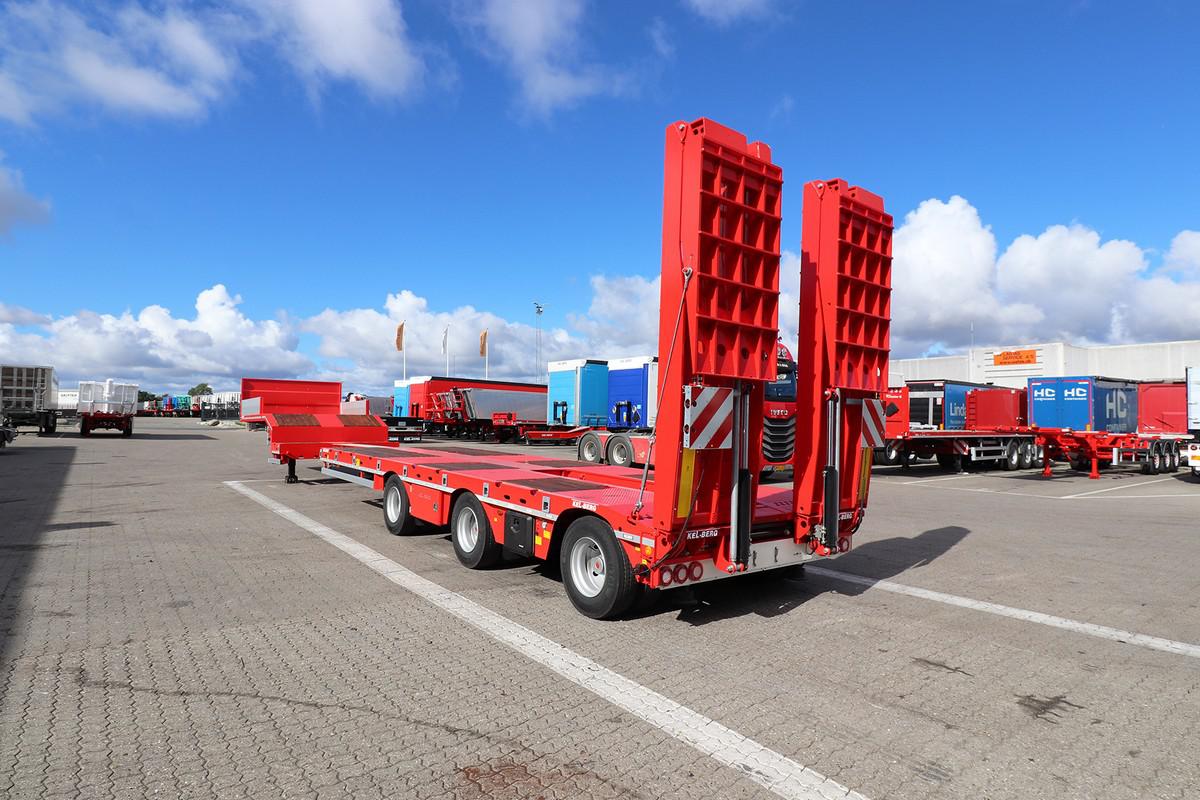

DOUBLE RAMPS

2 hydraulic ramps welded in QSTE 500 steel.

ACCESSORIES

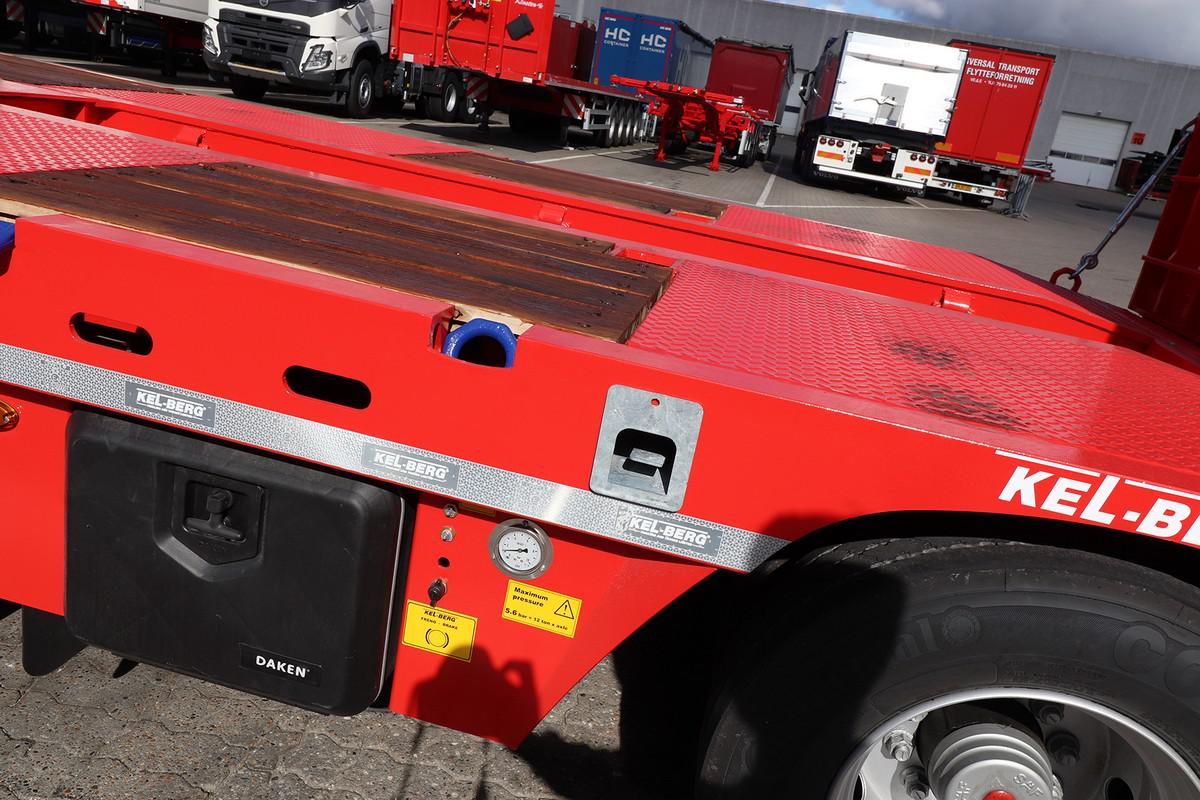

2 toolboxes with side door opening, located between 1- and 2-axle with one on each side.

PAINTING

All steel parts are shot blasted SA 2 ½
